Specifications

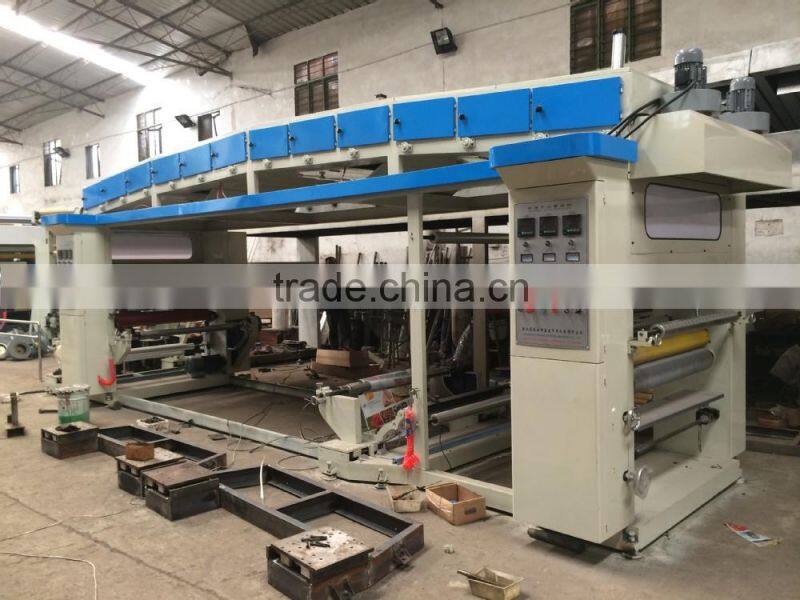

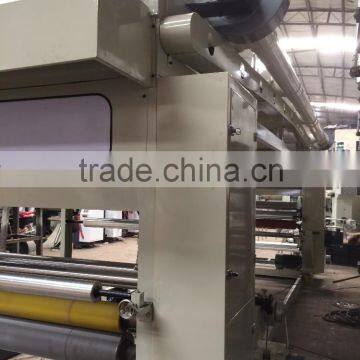

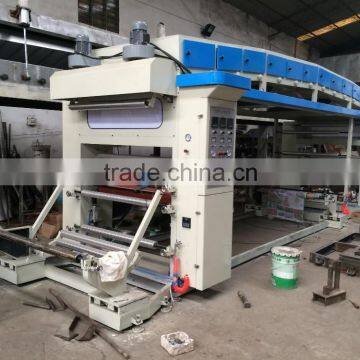

dry laninating machine adopt dry craft to glue and laminting different material together,high speed and good quality.Two Layers Food Pack Film and Paper Dry Laminator
------------------------------------------------------------------------------------------------------------------------------
Use:
Laminating Material:
OPP BOPP CPP 20-70um
PET NY 12-60um
Paper 30-80g/m2
------------------------------------------------------------------------------------------------------------------------------
Feature:
1. Component: face material unwinding, bottom material unwinding, composite film rewinding
all use magnetic powder break tension control system, composite rewinding use torque motor.
2. Meters, laminating speed and tension auto display.
3. Glue and laminating use double frequency synchronization.
4. Single position unwind and rewind
5. Electric, photo, air integrated design, have perfect security function
6. Independent motor drive coating roller, coating roller synchronous and substep switch
automatically
7. Arch oven, bottom open
------------------------------------------------------------------------------------------------------------------------------
Main component
Fist material
1. Independent single position unwinding, photoelectric auto edge correction, magnetic powder
tension control, Max unwinding width: 600mm, Max unwinding diameter: 600mm
2. High strength guide roller
3. Anilox coating, scraper can adjust, and swing left to right automatic
4. Active oven guide roller, Electricity heating, 3 part independent control, temperature can adjust,
oven length 6.5m, bottom open.
Second material
1. Independent single position, magnetic powder tension control, Max unwinding width: 600mm,
Max unwinding diameter: 600mm
2. Hot drum use hot oil heating, temperature can adjust, Max is 70°
3. Single position torque motor rewind, Max width: 600mm, Max diameter: 800mm
4. Main drive: Variable speed motor 5.5KW, frequency control, Huichuan 5.5kw
5. Anilox roller drive: Variable speed motor 3.7KW, frequency control, Huichuan 3.7kw
6. Rewinding motor: 40KG torque motor
7. Other pneumatic component: Yida
------------------------------------------------------------------------------------------------------------------------------
