Specifications
leakage circuit breaker1.High quality,Competitive price ,hot sales
2.OEM ,ODMservice
3.CE,CCC,ISO
4.Factory&Manufacturer

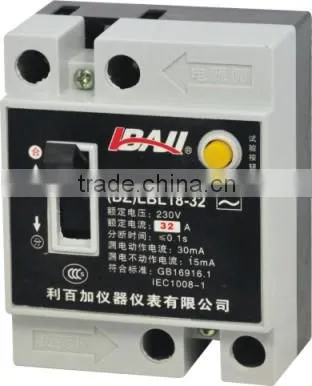

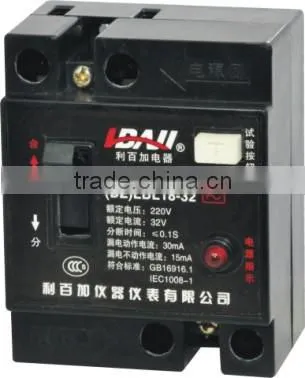

LB18L CIRCUIT BREAKER
PRODUCT INTRODUCE
LB18 series leakage circuit breaker is suitable for circuit of AC 50Hz, rated working voltage 220V and rated current 20A and 32A, to make indirect contact protection to the human being, also to prevent fire accident caused by ground fault current due to the damage of insulation of equipment. In addition, it not only can protect the circuit and motor against overload and short circuit, but also can be used to switch the circuit and start the motor infrequently.
APPLICATION
The series leakage circuit breaker has the advantages of small volume,high sensitivity,reliable action and environmental protection and other features,can be widely used in electric water heatrer Device,automatic vending machine,solar water heater device ,automatic vending machine ,solar water heater device,automatic vending machine,solar water heater ,water dispenser,refrigerator,washing machine and other electric protection,it is an ideal product for users.DZ18L-20 meets GB16916.1-203“household residual current use and similar without overcurrent protection animals the breaker."
MAIN TECHNICAL PARAMETERS
1.residual current circuit breaker in the main power for the auxiliary power supply,which belongs to the impact of current does not move ,the leakage protection for electronic quick type.
2.the basic technical parameters.
| Product model | Rated voltage(V) | Frequency(Hz) |
The number of poles |
Rated current (A) |
Rated residual Action current (mA) |
Rated residual motionless As the current (mA) |
Maximun breaking time(S) |
Mechanical and electrical life (time) |
Rated short circuit is switched on breakering capacity(A) |
|
| 1Δn | 0.25A | |||||||||
| CSDZ18L | 220 | 50 | 2 | 20,32 | 30 | 15 | 0.1 | 0.04 | 4000 | 500 |
