C45 Mcb Mini Isolating Switch

FOB Price

US$ 0.8 - 4 / Piece

300 Pieces(Min. Order)

Port NINGBO&SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	LBAJI C45 mcb mini isolating switch
Model Number	DZ47 C45 mcb mini isolating switch	Type	Mini
Poles Number	Other, 1/2/3/4P

Product Description

Specifications

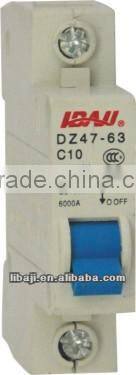

C45 mcb mini isolating switch
1.AC 50Hz
2. For overload and short circuit protection
3.CCC , IEC61009
4.OEM offered

C45 mcb mini isolating switch

Packaging &Delivery

packaging details :CARTON PACKING

Delivery details :WITHIN 30 DAYS

If you have any special requirement ,we will try our best to satisfy you.

Product Description

Brief introduction

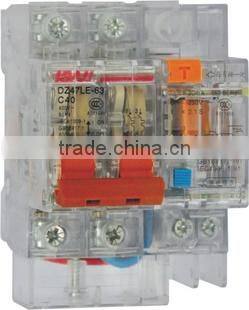

DZ47LE series leakage circuit breaker is suitable for the circuit of AC 50HZ ,rated working voltage 230V /400V and rated current 60A , to make indirect contact protection to the human beings and protect the circuit against over current in buildings or other similiar locations as well,also to prevent fire acident caused by contionuous ground fault current due to the damage of over-current protection equipment.In addition,the leakage circuit breaker with over voltage caused by fault of power grid.

Application

This series of productsis more and more used for stand -by protection against ground fault and electric shocks by idirect contact and indirect contact in the low voltage distributioin system.The products are in conformity with such standards as GB16917 and IEC 61009.

Specifications

1. Main technical parameter of circuit breaker

Rated frame current A	P o l e	With neutral line	Rated current In A	Rated voltage V	Rated residual action current I n mA	Rated residual non-action current I n mA	Breaking action time s	Rated residual making and breaking capacity I n mA	Over- current Instantaneous Release type
32	1	N	6,10,16,20,25, 32	230	30 50 100 300	15 25 50 150	<0.1	630	C D
	2
	3			400
	4	N
60	1	N	40,50, 60	230	30 50 100 300	15 25 50 150	<0.1	630	C D
	2
	3			400
	4	N

2.Over-current protection characteristics of circuit breaker

Over- current Instantaneous Release type	Rated current In A	Test current A	TEST time	Initial state	Environment Temperature
C,D	≤60	1.13In	≥1h No trip	Cold state	+30°C
C,D	≤60	1.45In	<1h Trip	Hot state	+30°C
C,D	≤32	2.55In	1s <trip <60s	Cold state	+30°C
C,D	>32	2.55In	1s <trip <120s	Cold state	+30°C
C	≤60	5.0In	0.1s No trip	Cold state	+30°C
D	≤60	10.0In	0.1s No trip	Cold state	+30°C
C	≤60	10.0In	0.1s trip	Cold state	+30°C
D	≤60	14.0In	0.1s trip	Cold state	+30°C

we can make according to your special requirement

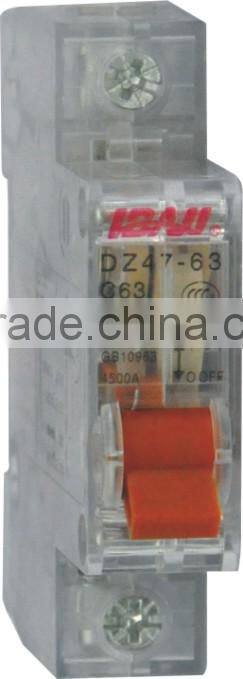

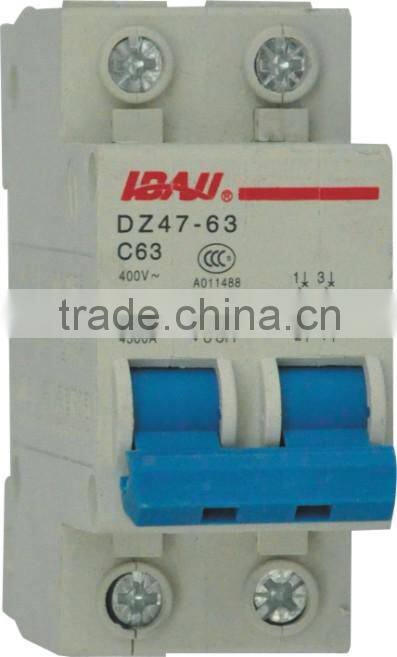

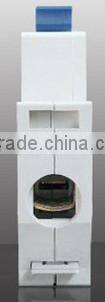

Product show
