Specifications
CIRCUIT BREAKER1.Different type for Selection
2.Certificate: ISO9001:2000/CCC
3.Competitive price and good quality
4.OEM

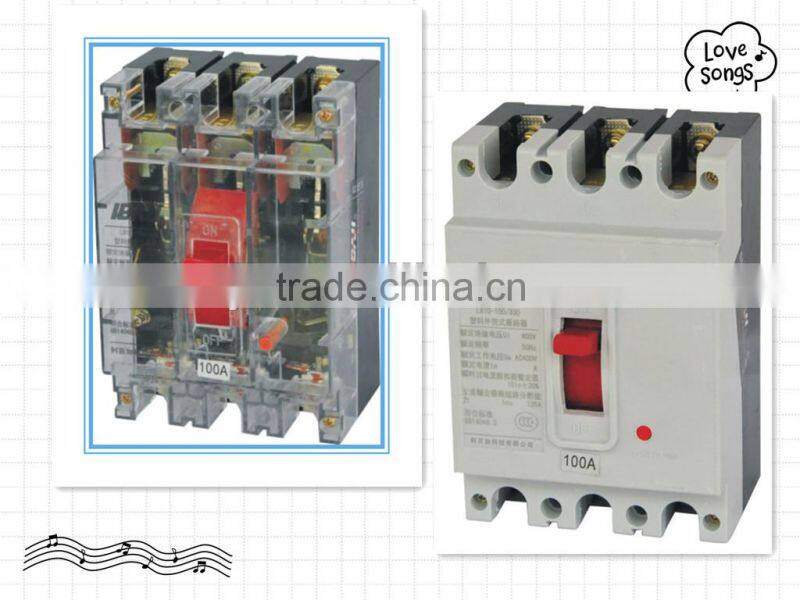

made in china mccb manufactures DZ10 electrical mccb 100amp
1.Application range
DZ10 disconnecting switch isolating switch Disconnect switch
1.it can use for distribution power net of alternating current 50Hz/60Hz, voltage is to 600v;direct current voltage is to 400v, current 15 to 600A.
2.it can distribute Electrical Power and protect the Power equipment from overload, undervoltage , short-circults.
3.it can conform to IEC 60947-2, GB14048.2 and GBI14048.4 standard.
2.Applicable working environment
1. Altitude: 2000m or below
2. Ambient medium temperature:-50°C~ +40°C
3. Resist the effect of moist air.
4. Resist the effect of mold.
5. Placed in the no explosive medium, which can't contain any gas and conductive dust that can erode metal and destroy the insulation.
6. Keep it where can prevent rain and snow.
3.Technical Parameter
Technical Parameter of Circuit Breaker
| TYPE | RATED FRAME CURRENT |
ln(A) RATED CURRENT |
W POWER LOSS |
RATED SERVICE SHORT-CIRCUIT BREAKNG CAPABILITY |
RATED ULTIMATE SHORT-CIRCUIT BREAKING CAPABILITY |
mm FLASHOVER DISTANCE |
||
| lcs kA | CosØ | lcs kA | CosØ | |||||
| LB10-100 | 100 |
15,20,25,30, 40,50,60,80,100 |
25 | 5 | 0.5 | 10 | 0.3 | 200 |
| LB10-250 | 250 |
100,120(125),140(150), 170,200(225),250 |
55 | 10 | 0.3 | 20 | 0.25 | 200 |
| LB10-600 | 600 |
200,250,300,350, 400,500,600 |
130 | 12.5 | 0.3 | 25 | 0.25 | 250 |
NOTE:THE RATED CURRENT LEVEL IN THE BRAKET IS REGARDED AS SPECIAL SPECIAL SPECIFICATION,IF NECESSARY,THE MANUFACTURER CAN MAKE SPECIAL DESIGN FOR YOU.
Technical Parameter of Control Circuit
| SORT | V RATED WORKING VOLTAGE | ||
| AC50Hz | DC | ||
| RELEASE | SHUNT RELEASE | Us 230,400 | 24.110,220 |
| UNDER VOLTAGE RELEASE | Ue 230,400 | ||
| ELECTRIC MECHANISM | Us 230,400 | ||

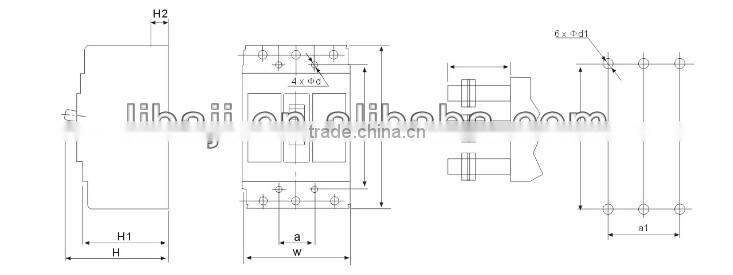

OUTLINE&INSTALLAION SIZE
| TYPE | OUTLINE SIZE | INSTALLATION SIZE | CONNECTION SIZE | |||||||||
| L | W | H | H1 | H2 | a | b | Ød | a1 | b1 | Ød1 | H3 | |
| LB10-100 | 153 | 108 | 104 | 83 | 23.5 | 35 | 135 | 5 | 70 | 131 | 6 | 53 |
| LB10-250 | 276 | 155 | 142 | 105 | 34 | 51 | 240 | 10 | 102 | 238 | 10 | 54 |
| LB10-600 | 396 | 210 | 147 | 109 | 39 | 70 | 361 | 11 | 140 | 325 | 12 | 45 |
