Specifications
DZ15LE Earth Leakage Circuit Breaker:1.Economical type for civil house usage
2.CCC ,good quality,trustworthy
3.OEM offered

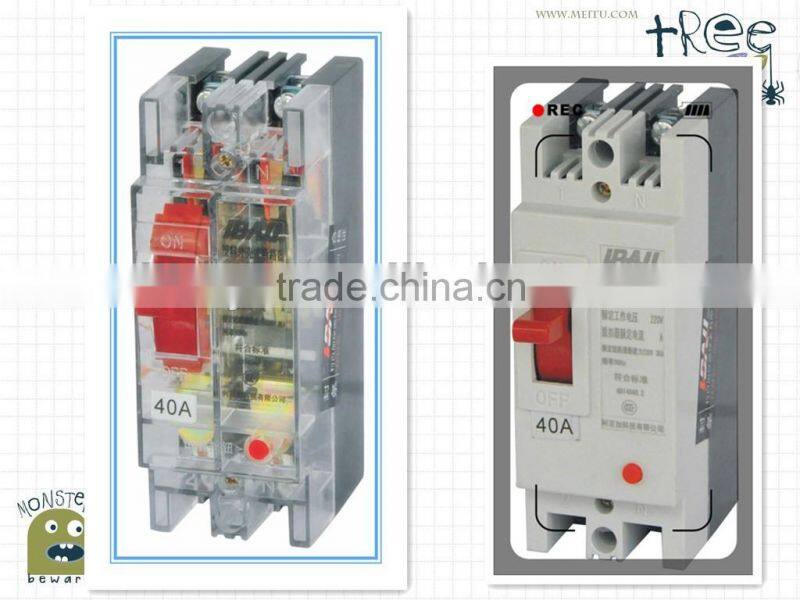

Series DZ15LE RESIDUAL CURRENT MODLE CASE CIECUIT BREAKER (MCCB) TRANSPARENT
DZ15LE series residual current circuit breaker is suitable for the circuit with AC 50Hz,rated voltage up to 380V|230V,rated current up to 100A,to prevent electric shock for leakage.This series of circuit breakers is applicable for the distribution in construction industry,with isolation and phase failure protection function It also can protect the circuit and motor from the overload and short circuit and be applied to controlling the infrequent transfer of circuit and infrequent start of motor.
DZ15LE Circuit Breaker Advantage
1.Designed and developed by our company by comprehensively adopting advanced technology.
2.Standard volume, low breaking capacity, short arc time, an ideal product to use.
3.It is used to protect circuits and power supply equipment form damage of overload, under-voltage, short-circuit,residual current etc.
Features
1.Black and transparent open type for choose
2.Small breaking capacity: 3KA / 5KA
3.Competitive Price
TECHNICAL DATA
Model |
DZ15LE-40 |
DZ15LE-100 |
Pole |
2,3,4 |
2,3,4 |
Frame class |
40 |
100 |
Rated voltage(V) |
220(2P) 380(3,4P) |
220(2P) 380(3,4P) |
Rated current(A) |
6,10,16,20,25,32,40 |
50,63,80,100 |
Rated ultimate breaking capacity(kA) |
3 |
5 |
Rated residual operate current(mA) |
30,50,75,100,200,300 |
30,50,75,100,200,300 |
Rated residual non-operate current(mA) |
15,58,40,50,100,150 |
15,58,40,50,100,150 |
Max.Breaking time(S) |
0.1,0.2,0.3,0.4,0.5,0.6 |
0.1,0.2,0.3,0.4,0.5,0.6 |
NOTE:THE RATED CURRENT LEVEL IN THE BRAKET IS REGARDED AS SPECIAL SPECIAL SPECIFICATION,IF NECESSARY,THE MANUFACTURER CAN MAKE SPECIAL DESIGN FOR YOU
MAIN TECHNICAL PARMETERS OF CIRCUIT BREAKER
outline size
our company
