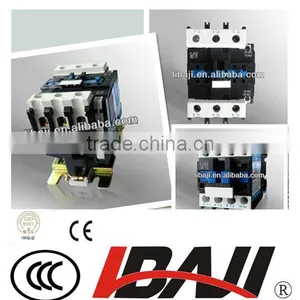

Help CenterCJX2 690V Ui 6KV AC Contactor 110V 50/60Hz 40A
Related Products
-
CJX2 LC1-D25 AC Contactor 4P 18AUS$ 2 - 15MOQ: 500 Pieces -
LC1-D Series TeSys Ac Contactor 9A to 95A 3P 4P Has Passed CE CertificateUS$ 2 - 15MOQ: 500 Pieces
-
CJX2/LC1-D-8011 AC Magnetic ac Contactor 220vUS$ 1 - 1,000MOQ: 500 Pieces
-
CJX2/LC1-D-4011 AC Magnetic ac Contactor 220vUS$ 1 - 1,000MOQ: 500 Pieces
-
CJX2/LC1-D-2510 AC Magnetic ac Contactor 220vUS$ 1 - 1,000MOQ: 500 Pieces
Specifications
AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 690V and rated current up to 95A for remote switchAC CONTACTOR
The series CJX2 AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 690V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.
Normal working condition and installation
1.- 5°c--+40°c,24 hours average value not more than 35°c.
2.altitude:not more than 2000m.
3.atmospheric conditions:the highest temperature of +40°c,relative hmidity of not more than 50%;can allow a higher relative humidity in low temperature,up to 90% such as 20°c.To take special measures due to temperature change should occasionally produce condensation .
4.class of pollution:3
5.installation categories:class III
6.installation conditions:installation plane and the vertical plane inclination of not more than ±5°c.
7.shock vibrationproducts should be installed and used without significant shake ,shock and vibration.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
| Type | Rated | Conventional | Rated | Control power(kw) | ||||
| insulation | thermal | operation | ||||||
| voltage(V) | current(A) | current(A) | 220V | 380V | 415V | 440V | 660V | |
| CJX2-D0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 |
| 901 | ||||||||
CJX2-D1200 |
20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | |
| 1201 | ||||||||
| CJX2-D1810 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | |
| 1801 | ||||||||
| CJX2-D2510 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | |
| 2501 | ||||||||
| CJX2-D3210 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | |
| 3201 | ||||||||
| CJX2-D4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | |
| CJX2-D5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | |
| CJX2-D6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | |
| CJX21-D8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |
| CJX21-D9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | |
| Type | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | KNC1-40 | ||
| Pick-up voltage | (0.85~ | (0.85~ | (0.85~ | (0.85~ | (0.85~ | (0.85~ | ||
| 50/60Hz(V) | 1.1)Us | 1.1) Us | 1.1)Us | 1.1)Us | 1.1)Us | 1.1)Us | ||
| Release voltage | (0.2~ | (0.2~ | (0.2~ | (0.2~ | (0.2~ | (0.2~ | ||
| 50/60Hz(v) | 0.75)Us | 0.75)Us | 0.75)Us | 0.75)Us | 0.75)Us | 0.75)Us | ||
| Coil power | 50Hz | Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | ||
| 60Hz | Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | ||
| Power | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6 | ||
