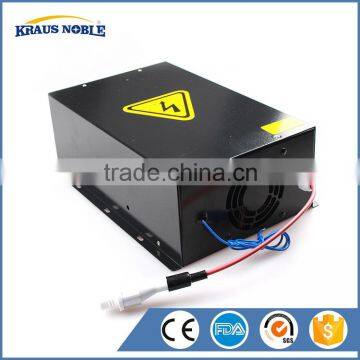

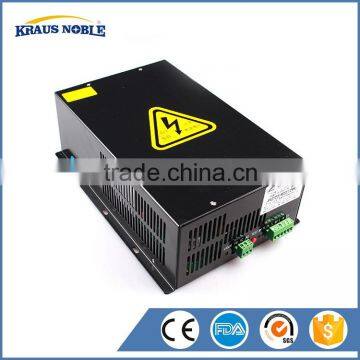

Shanghai Manufactory Latest w8 150w Laser Tube Power Supply

Name: Shanghai Manufactory Latest w8 150w Laser Tube Power Supply
Brand: RECI
SKU: 117924487
Availability: InStock

US$ 220 - 320 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

RECI

Model Number:

DY10

Shanghai Kraus&Noble Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name RECI

Model Number DY10

Shanghai manufactory latest w8 150w laser tube power supply

Product parameters of w8 150w laser tube power supply

Model		DY10	DY13	DY20
Input	Input voltage	AC220V or 110V(please specify when placing order)
	AC frequency	47-440HZ
	Max input power	450W	550W	1000W
Output	Max output current	5A	8A	10A
	Max output voltage	DC 35KV	DC 40KV	DC 50KV
	Max output current	DC 24mA	DC 28mA	DC 35mA
Effciency	>=90%(full load)
MTBF (Mean time between failure)	>=10000hours
Response Speed	<=1ms(from the TTL signal is given to the output current up to 90% of setting current)
Withstand Voltage	Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure.
Environment	Operating temperature:-10~40degrees, relative humidity:<=90%
Cooling	Force air cooling (FAC)
Dimension (LWH) mm		19815985	24716178	31420384
Net Weight		1.75kg	2kg	3.14kg

Model		ZL-DY35	ZL-DY40	ZL-DY60	ZL-DY80	ZL-DY100	ZL-DY120	ZL-DY150
Rate Power		35W	40W	60W	80W	100W	120W	150W
Peak Power		40W	55W	75W	95W	120W	135W	180W
Input	Input voltage	AC220V or 110V(please specify when placing order)
	AC frequency	47-440HZ
	Max input power	250W	350W	450W	550W	650W	650W	1000W
Output	Max output current	3A	3A	3A	5A	8A	8A	10A
	Max output voltage	DC 25KV	DC 25KV	DC 35KV	DC 40KV	DC 40KV	DC 40KV	DC 50KV
	Max output current	DC 20mA	DC 20mA	DC 24mA	DC 28mA	DC 35mA	DC 35mA	DC 38mA
Effciency	>=90%(full load)
MTBF (Mean time between failure)	>=10000hours
Response Speed	<=1ms(from the TTL signal is given to the output current up to 90% of setting current)
Withstand Voltage	Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure.
Environment	Operating temperature:-10~40degrees, relative humidity:<=90%
Cooling	Force air cooling (FAC)
Dimension (LWH) mm		17014275	17616997	20517896	28319696	32819397	32819397	328239101
Net Weight		1.05kg	1.65kg	2.2kg	2.95kg	3.7kg	3.7kg	4.6kg
