Home > Products > RF COAXIAL CONNECTOR > F Type Twist On Connector

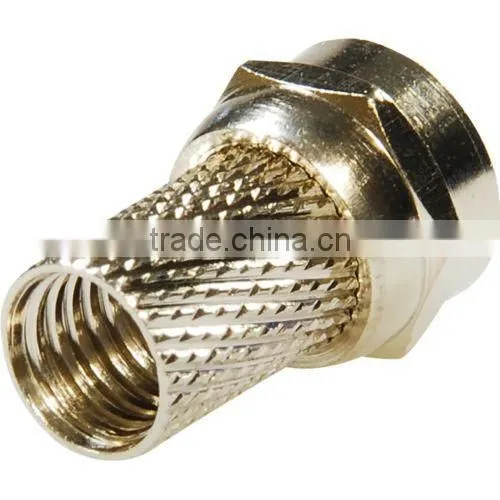

F Type Twist On Connector
- 20000 Piece / Pieces per Month
- shanghai or ningbo
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | stride | Model Number: | FC029 |
Type: | F | Application: | RF | Gender: | Male |
Product Description
F connector, F female PCB mount, F plug
Material:Copper or zinc
Plating:Nickel or gold
Insulator:teflor/plastic
F type joining devices use for 75Ω cable assign system,especially CATV,broadcast television netword.It can already be used for having impedance to mate the occasion required,can be used in not mating the occasion too.It is joined,inserts helping jointly that its charac-teristic is whorl,the price is suitable.
F type joining devices can exchange and use with the similar products in the world.FL10 products are M10×0.75 whorl,the structure,performance are the same as F type.
F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products.
F connectors are available in a limited selection to fit various cable sizes.
Product Series: | F |
Product Type: | Thru Hole PCB Mount |
Body Plating: | Nickel-plated |
Connector Body Style: | Straight |
Connector Material: | Brass |
Contact Plating: | Nickel-plated |
Gender: | Jack |
Impedance: | 75 Ohm |
APPLECABLE STANDARD
IEC 60169-24.
TECHNICAL CHARACTERISTICS
Temp. range.................. ...-40~ +60 ℃
Impedance.................... ...75Ω
Frequency Range..............DC~1GHz
Working Voltage............. ..170V max
Withstand Voltage......... ....500V rms
Center Contact...................≤10mΩ
Outer Contact.....................≤5mmΩ
Insulation resistance ...........≥1000 mΩ
VSWR Straight...................≤1.20
Right angle?.......................≤1.30
Durability(mating)................500 (cycles)
