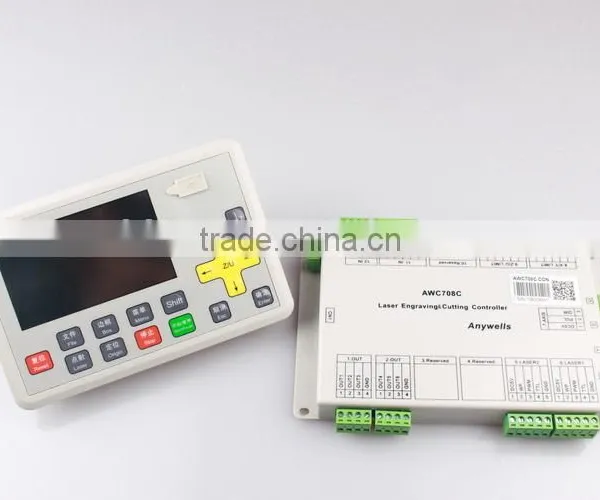

Shanghai manufacture promotional laser engraving machine usb controller
1. Technical Parameter of laser engraving machine usb controller:
1) AWC708C is an independent DSP laser controller used for the laser cutting and engraving systems.
2) It support up to 4 different axis.
3) It can work together with a PC or read files from U-disk directly and work without PC. User can operate the whole work directly from the display easily.
4) AWC708C laser controller: for making industrial laser systems and diy laser engraver and diy laser cutter and upgrading your old laser systems.
2. Features of Anywells AWC708C Co2 Laser Motion Controller System:
1) Support CorelDraw and AutoCad;
2) PWM output or Analog output;
3) Optical isolation for data In/Out;
4) Mutliple motor configuration;

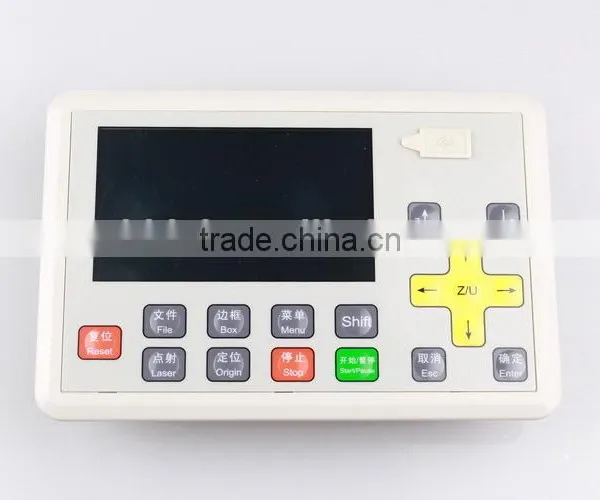

5) LCD panel control;
6) Support Dump Drive (no PC need);
7) Memory recovery after power surge;
8) Support Vector and Raster;
9) Dual power supply control. Allow two laser to fire simultanously;
10) Interface port: USB;
11) 4 Axis control: X,Y,Z,U;
12) Dual power supply control for PWM or analog control;
13) Power: DC24V (no need to add 5V);
14) LCD Control size: 150mm x 100mm.
| NO. | Part Name | Pieces | Description |
| 1 | AWC708C | 1 | Controller board with Aluminum case |
| 2 | LCD Panel | 1 | Size: 150mmX100mm |
| 3 | Cable | 4 | USB cable + USB extended cable + net work cable + Panel connection cable |
| 4 | Laser CAD | 1 | Laser CAD software |
Product parameters of laser engraving machine usb controller
