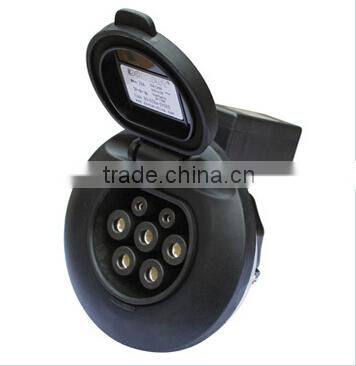

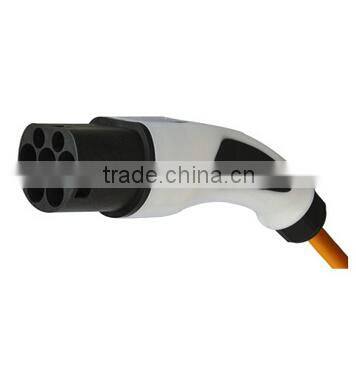

Help CenterDSIEC 62196-2 EV Connector Plug Socket
Related Products
Specifications
Meet 62196-2 IEC 2010 SHEET 2-llb standard easy to use ,Reliablity materials High water levels:protection class IP54
Product Features
meet the62196-2 IEC 2010 SHEET 2-llb standards
nice shape hand -held ergonomic design easy to use
safety design to prevent usersform personal injury
protection class IP54
reliability of materials,antiflaming environmental protection ,abrasion resistance ,impact reaiatance ,oil resistance and Anti -UV
Electric Proformance
rated current: 16A or 32A or 63A
opearting voltage : 250V AC
insulation resistance:>1000MΩ (DC500V)
terminal temperature rise :<50K
withstand voltage :2000V
vibration impedance :meet JDQ 53.3 requirement
contact impedance :0.5mΩMax
Mechanical properties
mechanical life :no-load plug in /pull out >10000times
insertion and extration force:45N<F<80N
Materials
shell materials:thermoplastic insulator inflammability UL94-V0
contact pin :copper alloy ,sliver ornickel plating
sealing gasket :rubberorsiliconc rubber
Environmental performance
opearting temperature: -30°C-+50°C
