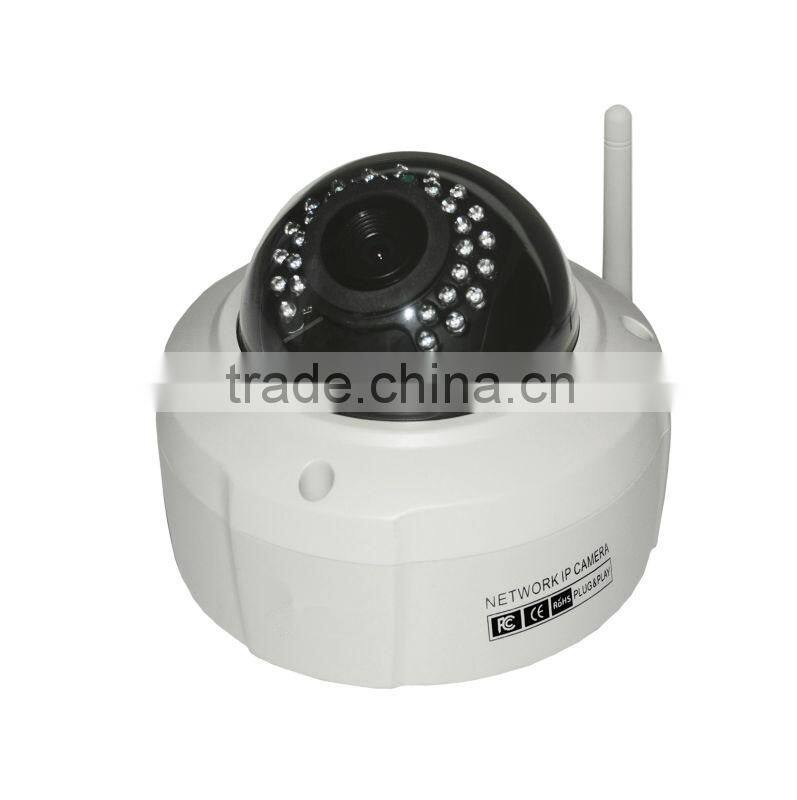

2MP IP Camera 2.8-12mm Lens P2P Outdoor IP Dome Camera POE Dome Megapixel ip Camera
2.0 Mega Pixel 1080P Full HD 1/2.7" CMOS
Metal IR IP Indoor Dome
H.264 Compression
Plug & Play, P2P
Support Mobile Remote Viewing
2.8-12mm MegaPixel Fixed Lens
30 pcs of Φ5 IR LEDs, IR distance: 35m
WIFI, POE, 3G, SD/TF Card Slot optional
24hours aging test for board camera and 48hours aging test for finished camera
Specifications:
Model |
Product Model |
SC02 |
Product Name |
1080P IP IR Dome Camera |
|
Image |
Image Size |
1920*1080 |
Frame Rate |
50HZ:25fps(1920*1080) |
|
60HZ:30fps(1920*1080) | ||
Image Settings |
Brightness,Contrast,Saturability,Sharpness etc. are adjustable by the client or IE browser |
|
Compression Format |
Video Compression Format |
H.264 Main profile/MEPG4 |
Code Rate |
32kbps~8Mbps adjustable |
|
Camera |
Image Sensor |
1/2.7”Progressive Scan CMOS |
Min illumination |
||
IR Distance |
35m |
|
Electronic Shutter |
1/25 - 1/100,000/ second |
|
Lens |
2.8-12mm MegaPixel Fixed Lens |
|
Mount |
CS/MTV |
|
Auto Iris |
Fixed |
|
Day/Night System |
ICR |
|
Main Functions |
Recording |
NVR Device and CMS Storage |
Heart Function |
heartbeat mechanism enables host manager computer monitors front-end IPC in real - time |
|
Multi -Streaming |
support 3 independent Streaming: Main Stream, VGA,CIF(Mobile Surveillance) |
|
Intelligent Alarm |
motion detection, covering alarm , network connection failure , IP address conflict |
|
Mobile Surveillance |
Support iPhone OS3.0 above,Android 2.2.above,Symbian,windows mobile |
|
Remote Access |
remote configuration, browsing , recording, playback and PTZ control can be implemented by built-in IE Web client or CMS, DDNS |
|
Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPOE,SMTP,NTP,UPnP,FTP,802.1X, |
|
Interface Protocol |
ONVIF2.0 |
|
General Function |
FLC , 3 stream encoding , heartbeat mechanism, mirror function, password protection, privacy area, watermark etc. |
|
Interface |
Internet Interface |
One RJ45 10M,100M Self-adaptive Ethernet port |
POE |
Support POE Power Supply(Optional) |
|
Others |
Working Temp./ Humidity |
-10°C~60°C,/ <90%(No Condensation) |
Power |
DC12V±10%/POE(Optional) |
|
Consumption |
5.6W,8W MAX |
