Soft Seal Electric Flange Butterfly Valve

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Butterfly

Pressure:

Low Pressure

Wenzhou Jiasheng Valve Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Butterfly

Pressure Low Pressure

Power Other, Solenoid, Manual

Material Other, WCB,CF8,CF3,CF3M

Temperature of Media Medium Temperature

Media Other, Gas, Water, Oil, Acid, Base

Port Size DIN2543

Place of Origin Zhejiang, China

Model Number D941X-10

Brand Name JSV

Specifications

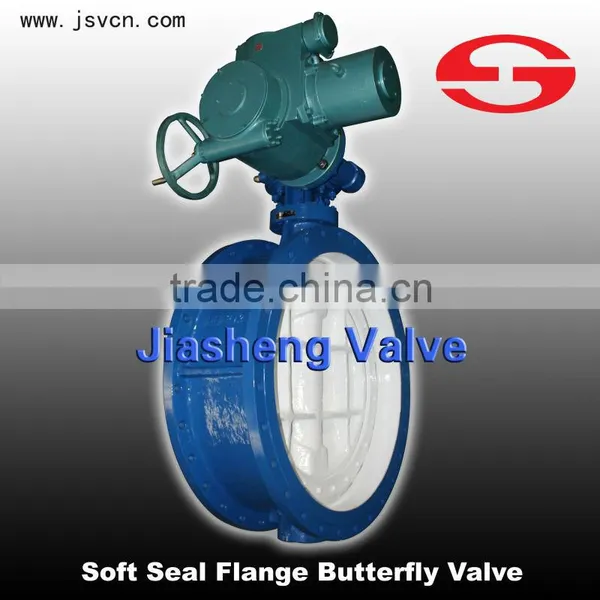

electric flange Butterfly Valve
1.Aging-resistant
2.Chemical resistance
3.Long service life

electric flange Butterfly Valve

Nominal diameter:DN50mm~DN1200mm

Nominal pressure:PN≤1.6MPa

Applicable temperature:-20°C~150°C

Materials of main parts:HT200,QT400,WCB,CF8,CF3,CF3M

Applicable medium: air, water, steam, gas as well as weak corrosive media, such as acid, alkali, and salt and so on.

Design standard: GB/T12238-2005;

test standard: GB/T13927-2008

Driving mode: Manual. Solenoid

Main connection dimensions

DN	Main dimensions			Flange dimensions and bolt specifications
	Main dimensions			1.0MPa		1.6MPa		2.5MPa
	L	H	H1	D1	n-ΦM	D1	n-ΦM	D1	n-ΦM
50	43	80	160	110	4-Φ13.5	120	4-Φ17.5	125	4-Φ17.5
65	46	88	175	130	4-Φ13.5	136	4-Φ17.5	145	4-Φ17.5
80	46	96	180	150	4-Φ17.5	160	4-Φ17.5	160	4-Φ17.5
100	52	115	200	170	4-Φ17.5	185	4-Φ17.5	180	4-Φ17.5
125	56	128	213	200	4-Φ17.5	215	4-Φ17.5	210	4-Φ17.5
150	56	140	225	225	4-Φ17.5	238	4-Φ22	240	4-Φ22
200	60	175	260	280	4-Φ17.5	295	4-Φ22	295	4-Φ22
250	68	202	290	335	4-Φ17.5	357	4-Φ22	355	4-Φ26
300	78	242	330	395	4-Φ22	407	4-Φ22	410	4-Φ26
350	78	266	360	445	4-Φ22	467	4-Φ22	470	4-Φ30
400	102	298	390	495	4-Φ22	515	4-Φ26	525	4-Φ33
450	114	315	410	550	4-Φ22	565	4-Φ26	585	4-Φ36
500	127	348	430	600	4-Φ22	620	4-M24	650	4-M30
600	154	400	490	705	4-Φ26	725	4-M27	770	4-M33
700	165	520	550	810	4-Φ26	840	4-M27	840	4-M33
800	190	591	610	920	4-Φ30	950	4-M30	950	4-M36
900	203	660	680	1020	4-M27	1050	4-M30	1050	4-M36
1000	216	670	730	1120	4-M27	1160	4-M33	1170	4-M39
1200	254	780	835	1340	4-M30	1380	4-M36	1390	4-M45
1400	-	-	-	1560	4-M33	1590	4-M39	1590	4-M45
1600	-	-	-	1760	4-M33	1820	4-M45	1820	4-M52
