Specifications
Marine Bronze Gate Valve JIS F73671. One year warrenty
2. CCS, ABS, BV, DBV, GL are availiable
3. Competitive price

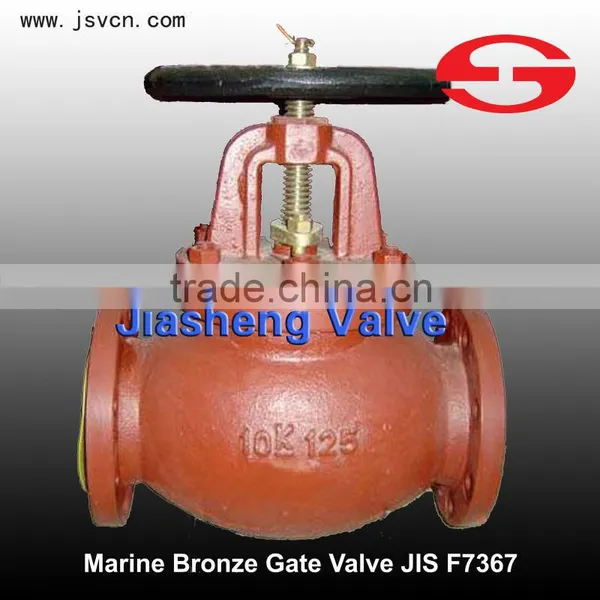

Marine Bronze Gate Valve JIS F7367
JIS standard
Bronze valve |
F7301, F7351,F7302,F7352,F7303,F7409,F7304,F7410,F7334,F7367,F7368, F7371,F7399,F7388 |
Cast iron valve |
F7305,F7353,F7306,F7354,F7307,F7375,F7308,F7376,F7309,F7377,F7310, F7378,F7311,F7311C,F7372,F7373,F7358,F7359,F7363,F7364,F7369,F7333 |
Cast steel valve |
F7311,F7311C,F7312,F7312C,F7319,F7471,F7320,F7472,F7313,F7473, F7314,F7474,F7363C,F7366,F30602,F3060R |
JIS F7367
Technical Data
Manufactured in accordance to JIS F7400/ Flanges as per JIS B2220-5K
Dimensions
Code |
Size |
Face to Face(L) |
Flange dia.(D) |
Pitch(C) |
Hole(n×d) |
Weight |
mm |
mm |
mm |
mm |
Kgs |
Kgs |
|
750951 |
15 |
90 |
80 |
60 |
4×D12 |
2.29 |
750952 |
20 |
100 |
85 |
65 |
4×D12 |
2.98 |
750953 |
25 |
110 |
95 |
75 |
4×D15 |
4.10 |
750954 |
32 |
130 |
115 |
90 |
4×D15 |
5.79 |
750955 |
40 |
140 |
120 |
95 |
4×D15 |
7.78 |
We can provide large range of JIS marine Valve
Categories
marine check valve, marine globe valve, marine gate valve, marine ball valve, marine butterfly valve,
marine hose valve, marine check globe valve, marine angle valve, marine screw down check globe valve,
marine screw down check angle valve, marine air vent/pipe head, marine strainer, marine quick-closing valve,
marine self-closing valve, marine cock, marine pipes, air pipe head, marine fittings, marine accessories.
Material
Cast iron, cast steel, bronze, ductile iron, stainless steel, SS304, SS316, SS316L
Size
15A-1200A
Pressure
5K, 10K, 16K, 20K, 1.6Mpa, 6.4Mpa, 4.0Mpa, 150LB, 300LB, 600LB.
Standard
JIS, ASTM, GB, ISO, DIN
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable
Quality Control: We have been engaged in valve design for many year and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
About Price: we provide very reasonable and competitive price for you
Wenzhou Jiasheng Valve Co., Ltd, is a professional valve manufacturer since 1995. Our main products include high temperature regulating metal to metal butterfly valves, rubber sealing butterfly valves, hydraulic butterfly valves, telescopic butterfly valves, ball valve, gate valve and etc. At present, we mainly produce/manufacture "ISO, API, ANSI, DIN, BS, EN, GB, JB" standard valves, also special valves according to the requirement of clients.
