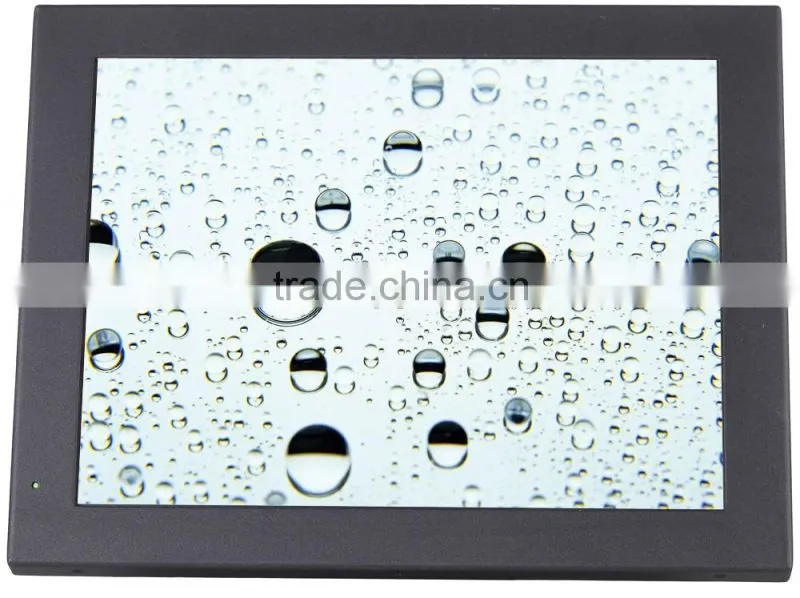

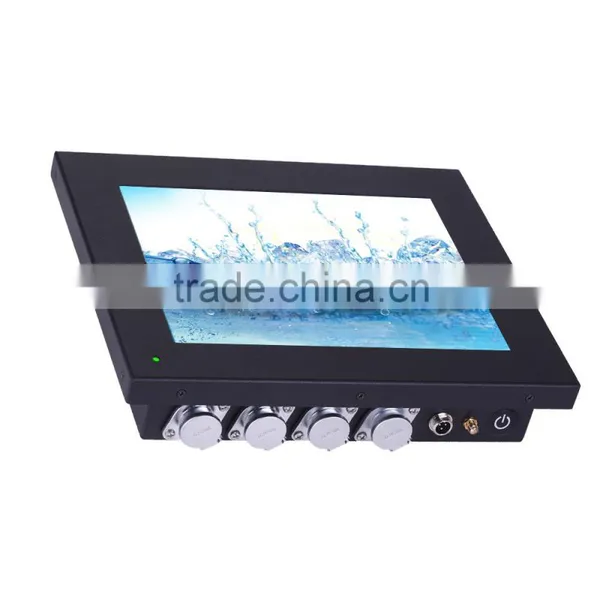

Rugged metal housing IP65 waterproof industrial panel pc 12.1 1024x768
- 10000 Piece / Pieces per Month
- Hongkong/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Products Status: | Stock | Type: | Panel PC | Brand Name: | Shinho |
| Model Number: | SC121W | Place of Origin: | Guangdong, China |
Product Description
Rugged metal housing IP65 waterproof industrial panel pc 12.1 1024x768
Features:
1.Rugged aluminium housing
2.Dustproof & IP65 Waterproof
3.high brightness, sunlight readable
4.Harsh environment 24/7 operation
5.extreme temperature range:- 25 to +75
6.Accept customization

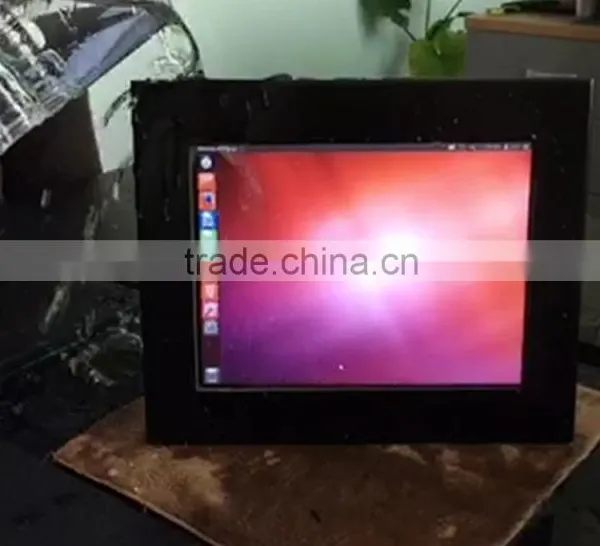

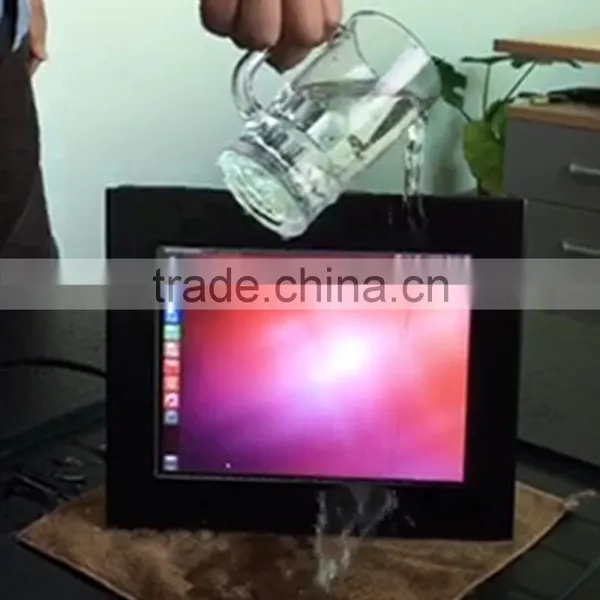

Waterproof testing
Model:SC121W | |
PC | |
CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
Chipset | Intel ValleyView SSA-CUnit |
Memory | 2G DDR3, ( Max. 8G) |
Hard Drive Capacity | 32G SSD or 320G HDD |
Hard Drive Optional | SSD: 16GB,32GB,64GB,128GB,160GB |
HDD: 160GB,320GB,500GB,1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek® High Definition Audio Decoder (5.1) Digital audio via HDMI Port |
Network | 2x Realtek® Gigabit Ethernet Controller(RTL8111F) |
Wireless Network | WIFI optional |
I/O Interface | 2×USB2.0 , 2×USB3.0, 2 x COM RS232 (max 6xRS232 or 5xRS232+1xRS485/RS422) |
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Opetation System | Preinstall test version Windows 7 |
LCD panel | |
Panel size | 12.1" |
Resolution | 1024*768 |
Aspect ratio | 4:3 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 400+ |
Response time | 15ms |
Contrast ratio | 700:1 |
View angle | 80°/80°/70°/70° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points ) |
Surface Hardness | 7H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch response time | 2ms |
Working Life | >50 million times |
Touch options | (4 or 5 wires resistive touch, IR ,SAW touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤28W |
Enclosure | |
Material | Aluminum alloy bezel + High strength cold rolled steel |
Color | Black, white, Silver , color can be customized |
VESA mounting | 100×100mm |
Ingree Protection | IP65 |
Operating Environment | |
Temperature Range | operating: -25 to 75°C, storage :-30 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 3kg |
Gross weight | 4.5kg |
Product Dimension | 29.5×23.5×6 cm |
Packing size | 44×37×14 cm |
Accessories | Power adapter, USB touch CD drive, touch pen, wall mounting bracket (optional) |
Other | |
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Certification | CE, FCC, ROHS |
Warranty | 1 year warranty and 3 years free maintenance |
1. Our products have one year warranty.
2. Within one year warranty, if there is quality problem happening to the products, you can send us the pictures or video to showing the fault phenomenon, so can help us to find out the cause of failure, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and re-send it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of warranty
5. If your product is our of warranty, we will charge you the factory cost for the replaced accessories.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the product.
7. Complaint Feedback: We set up the service hotline. After receipt of your complaint feedback, we will send the qualified personnel to contact you within 12 hours and solve your complaint.
Service hotline: +86-0755-36921825
