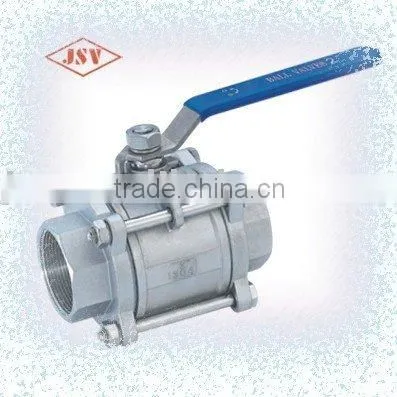

3pc API Stainless Steel Ball Valve

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Stainless Steel Ball Valve
1.Nominal Diameter:2"~40"
2.Nominal Pressure:PN less than 900Lb

API Stainless Steel Ball Valve

Unit:mm

DN DN	Main external and connectiong dimensions	WT (kg)
L	D	D1	D2	b	Z-Φd	H	W
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P
15	130	95	65	45	14	4-Φ14	78	140	3
20	140	105	75	55	14	4-Φ14	84	160	4
25	150	115	85	65	14	4-Φ14	95	180	5
32	165	135	100	78	16	4-Φ18	150	250	9
40	180	145	110	85	16	4-Φ18	150	300	11
50	203	160	125	100	16	4-Φ18	170	350	15
65	222	180	145	120	18	4-Φ18	195	350	19
80	241	195	160	135	20	8-Φ18	215	400	27
100	305	215	180	155	20	8-Φ18	250	500	38
125	356	245	210	185	22	8-Φ18	265	600	58
150	394	280	240	210	24	8-Φ23	270	800	81
200	457	335	295	265	26	12-Φ23	330	800	95
250	533	405	355	320	30	12-Φ25	450	1300	140

Fixed Ball Valve

Unit:mm

DN DN	Main external and connectiong dimensions									WT (kg)
DN DN	L	D	D1	D2	b	Z-Φd	H	H1	Do	WT (kg)
Q47F-16C Q67F-16C Q47F-16P Q347F-16C Q367F-16C Q347F-16P Q647F-16C Q667F-16C Q647F-16P Q747F-16C Q767F-16C Q747F-16P Q9B47F-16C Q9B67F-16C Q9B47F-16P
50	178	160	125	100	16	4-Φ18	177	120	-	15
65	191	180	145	120	18	4-Φ18	190	140	-	19
80	203	195	160	136	20	8-Φ18	210	150	-	27
100	229	215	180	155	20	8-Φ18	235	172	-	38
125	356	245	210	185	24	8-Φ18	350	215	-	58
150	394	280	240	210	24	8-Φ23	530	250	-	81
200	457	335	295	320	30	12-Φ23	620	290	600	140
250	533	405	355	320	30	12-Φ25	650	320	600	160
300	610	460	410	375	30	12-Φ25	780	360	600	205
350	686	520	470	435	34	16-Φ25	790	395	800	260
400	762	580	525	485	36	16-Φ30	920	450	800	390
450	864	640	585	545	40	20-Φ30	970	490	800	510
500	914	705	650	608	44	20-Φ34	1100	530	800	750
600	1067	840	770	718	48	20-Φ41	1150	590	800	1200
700	1245	910	840	788	50	24-Φ41	1850	700	800	2100
