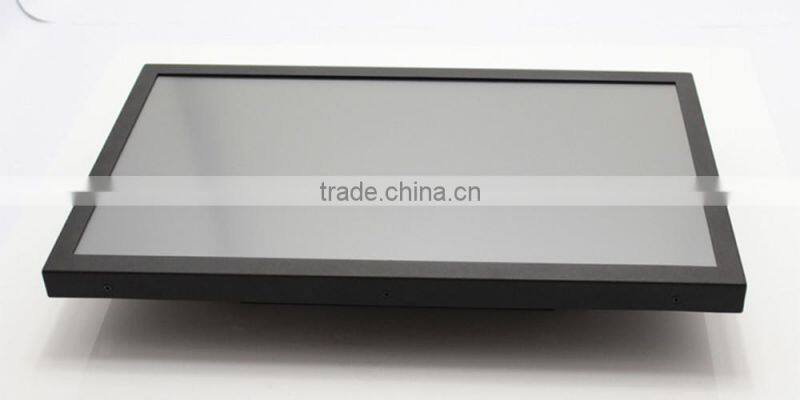

Industrial embedded installation 18.5 inch all in one touch screen pc
Features:
1. Robust and durable all-metal enclosure, dustproof and shockproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 4/5 wires resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and rackmount etc. apply to a wide range of industrial application.
Model:SC185 | |
PC | |
CPU |
Intel® Celeron 1037 1.8GHz , dual core |
Chipset |
Intel NM70 |
Memory |
2G DDR3, ( Max. 8G) |
Hard Drive Capacity |
32G SSD or 320G HDD |
Hard Drive Optional |
SSD: 16GB,32GB,64GB,128GB,160GB |
HDD: 160GB,320GB,500GB,1TB | |
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
Wireless Network |
WIFI optional |

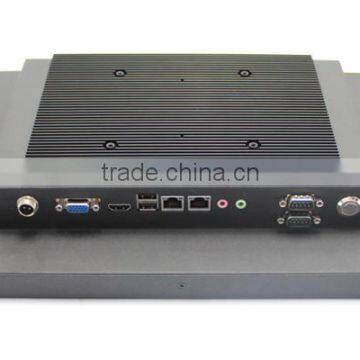

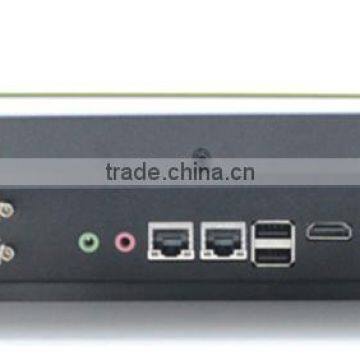

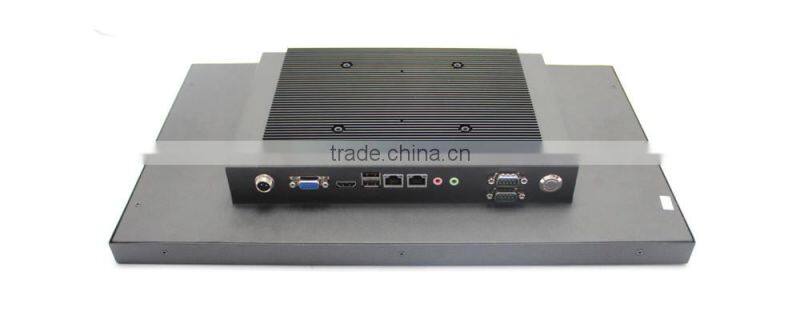

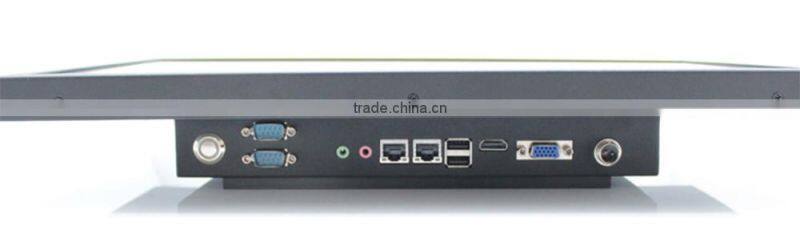

I/O Interface |
2×USB2.0 , 2×USB3.0, 2 x COM RS232 |
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Opetation System |
Preinstall test version Windows 7 |
LCD panel | |
Panel size |
18.5" |
Resolution |
1366*768 |
Aspect ratio |
16:9 |
Support Color |
16.7M colors |
Brightness (cd/m²) |
450+ |
Response time |
10ms |
Contrast ratio |
1000:1 |
View angle |
85°/85°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type |
4 wire resistive touch |
Touch Interface |
USB (RS232 optional) |
Touch response time |
<8ms |
Luminousness |
75-85% |
Surface Hardness |
3H |
Working Life |
>5 million times |
Touch options |
( 5 wires resistive touch, IR ,SAW touch optional) |
Power Supply | |
External Power Supply |
AC 100 - 240V |
Working voltage |
DC 12V |
Power consumption |
≤30W |
Enclosure | |
Material |
High strength cold rolled steel |
Color |
Black, white, Silver , color can be customized |
VESA mounting |
100×100mm |
Operating Environment | |
Temperature Range |
operating: -25 to 75°C, storage :-30 to 80°C |
Relative humidity |
5%~95% @ 40° C, non-condensing |
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight |
6kg |
Gross weight |
7.8kg |
Product Dimension |
42.2×26.4×5.2cm |
Packing size |
53.6×38.4×13.6 cm |
Accessories |
Power adapter, USB touch CD drive, touch pen, wall mounting bracket (optional) |
Other | |
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Certification |
CE, FCC, ROHS |
Warranty |
1 year warranty and 3 years free maintenance |
