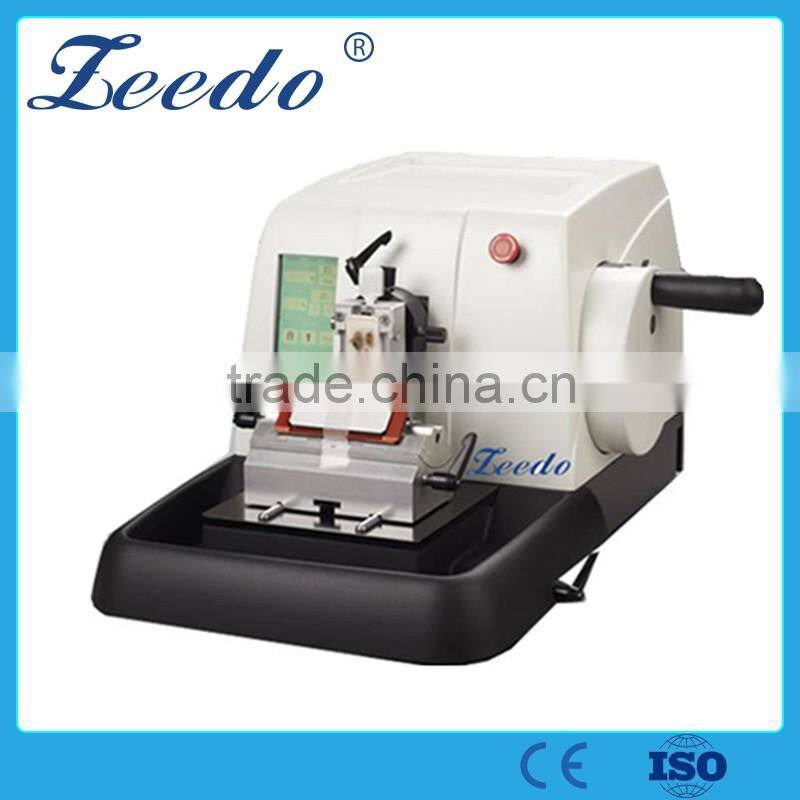

Used for hospital and laboratory microtome tissue sectioning HS3345
| Description |
Section thickness range | 0~100μm |
| Section thickness setting | 0~20μm,in 1μm increment 20~60μm,in 5μm increments 60~100μm,in 10μm increments |
| Trimming thickness | 1~600μm |
| Trimming thickness setting | 1~20μm,in 1μm increment ; 10~20μm,in 2μm increments:20~50μm,in 5μm increments; 50~100μm,in 10μm increments; 100~600μm,in 50μm increments |
| Specimen retraction | 0~95μm,in 5μm increments |
| Specimen vertical stroke | 70mm |
| Specimen horizontally stroke | 25mm |
| Max specimen size with cassette clamp (H×W) | 40mm×28mm |
| Max specimen size with C clamp (H×W) | 55mm×40mm |
| Dimensions (W×D×H) | 560×470×300mm |
| Weight | 35kg |
| Package | In wooden case |
| Warranty | For one year |
Feature:
Streamlined molded housing results in attractive appearance and is easy to clean.
Full-automatic sectioning with adjustable speed and three sectioning modes: continuous, step and single.
LED display
Electronic trim function makes it easy to switch from trim and section mode
Specimen retraction mechanism protects specimen from unintended blade damage
Section counting function counts total section pieces and total thickness.
Unit contains a precise micro motion specimen feeding system which uses a micro computer, optical
signal and stepper motor to control specimen feeding resulting in more precise specimen feeding.
Internationally accepted slide mechanism and groove ensures the precision of specimen movement
while making the unit free from lubrication and maintenance requirements.
Unit contains a handwheel force balancing system for adjusting the balancing force during sectioning,
making rotation even and smooth;
Two safety locking mechanisms on the handwheel; one locks on the top; the other locks at any position
The disposable blade can move horizontally to avoid the dangers of unintended contact with the blade.
Every blade cuts specimen into three equal parts, which ensures the entire use of blade edge
The waste tray collects sectioning debris are easily removed for cleaning
Cassette clamp and C clamp are optional
Specimen orientation on X/Y axes 8°
Alarm to warn of forward or backwards limitation.
Self-diagnostic prompt.
Emergency stop and foot switch (optional)

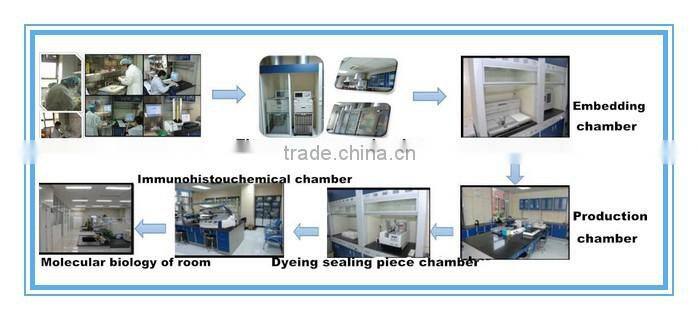

The workflow of machine:
Our certificate:

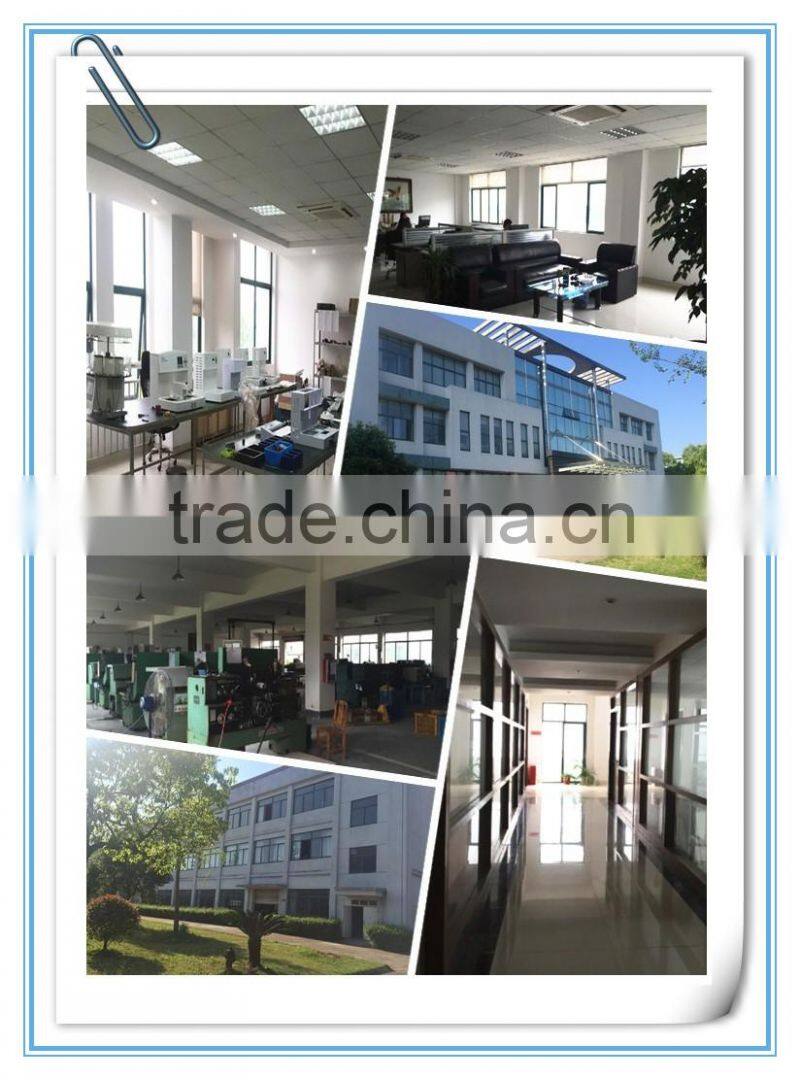

Company Information:

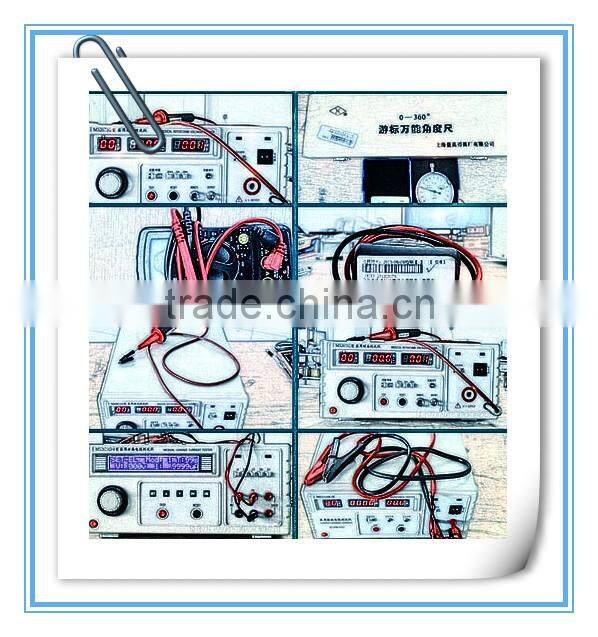

Strict quality control:
