Stop Collar for Casing
US$ 10 - 100
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Yuanda
Model Number:
GFZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
STOP COLLAR WITH API STANDARDUS$ 1 - 11MOQ: 1 Piece -
Oilfield Cementing Tool Centralizer Stop CollarUS$ 1 - 11MOQ: 1 Piece
-
Casing Stop Collar for CentralizerUS$ 1 - 11MOQ: 1 Piece
-
Oilwell Downhole Stop Collar for Casing CentralizerUS$ 1 - 11MOQ: 1 Piece
-
4 1/2" Oilwell Stop Collar for CentralizerUS$ 1 - 11MOQ: 1 Piece
Place of Origin
China
Brand Name
Yuanda
Model Number
GFZ
Type
Other, stop collar
Machine Type
Other, cementing tools
Certification
API
Material
Stainless Steel
Processing Type
Casting
Use
Other, oil fields
Specifications

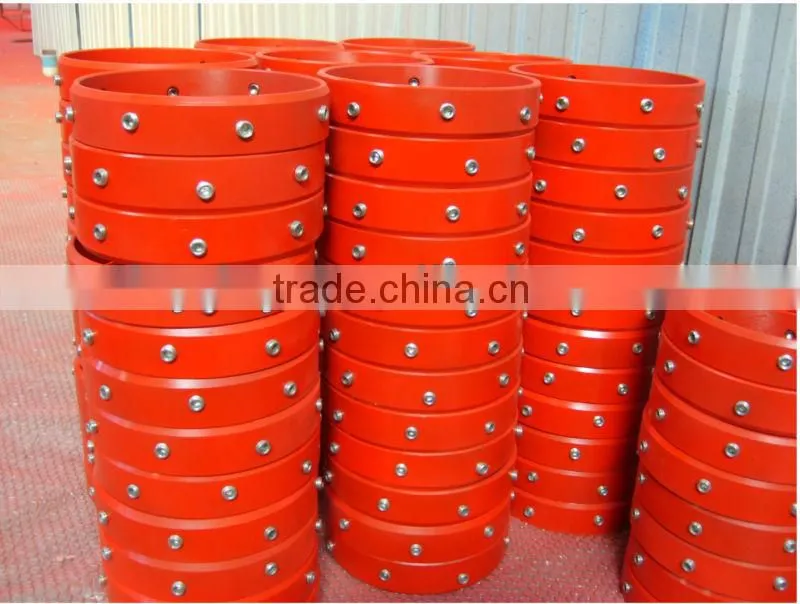

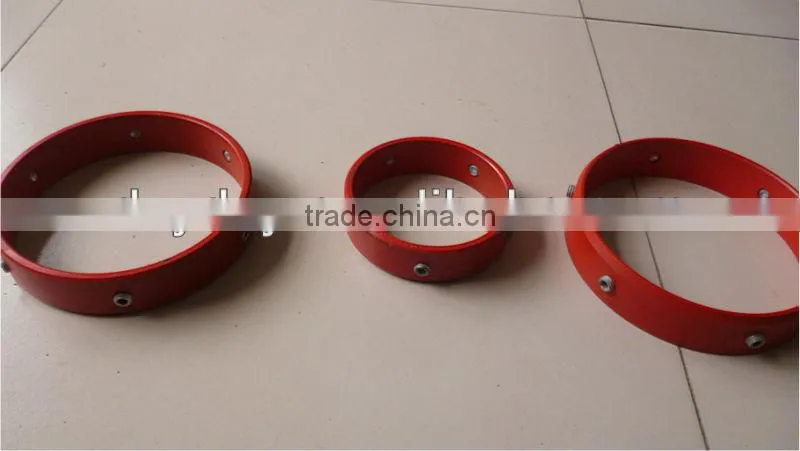

stop collar for casing1.stop collar
2.nails
stop collar
1. The stop collars are available in three types: Knock-On Type, Spiral Nail Type and Set Screw Type.
2. The stop collars can be installed on any position on casing to limit the axial movement of centralizers and cement baskets.
Property Parameters
Specifications,mm |
13 3/8″ |
10 3/4″ |
9 5/8″ |
8 1/8″ |
7 5/8″ |
7″ |
5 1/2″ |
5″ |
4 1/2″ |
ID,mm |
338 |
272 |
245 |
206 |
193 |
177 |
139 |
126 |
114 |
OD,mm |
350 |
284 |
257 |
218 |
285 |
189 |
151 |
138 |
126 |
Holding Force,KN |
40 |
40 |
40 |
30 |
30 |
30 |
30 |
24 |
24 |
a. Spiral Nail Type stop collar b.Set Screw Type stop collar c.Knock-On Type stop collar
