Specifications
Leadingtouch is professioneal SAW(Surface Acustic Wave) touchscreen maunfactory, Standard,Dustproof,Waterproof and IP-Level typeSA1020D30-G4

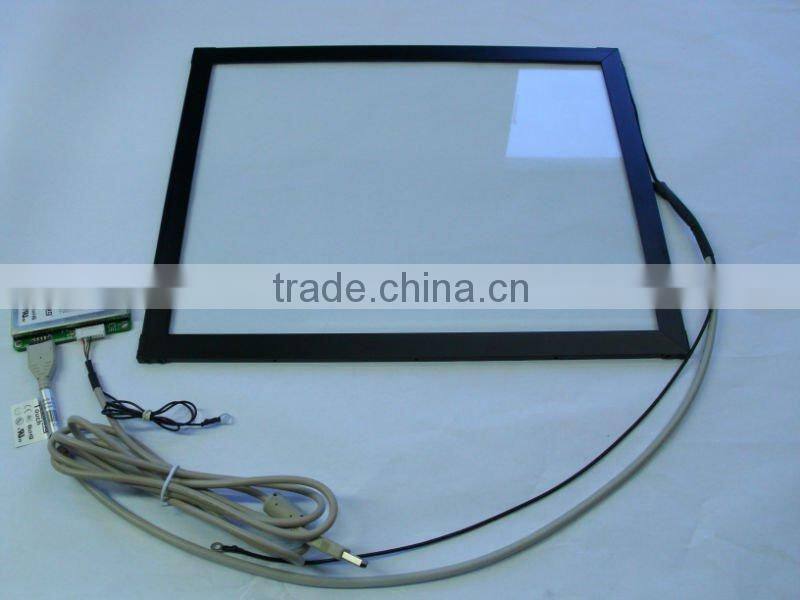

LeadingTouch 10.2" Dust Proof Surface Acoustic Wave (SAW) Touchscreen
Dustproof Surface Aucostic Wave touchscreen,The reflectors and transducers are sealed inside the metal or plastic frame. The frame around the panel prevents dust and dirt from accumulating on the reflectors and transducers.. Its pure glass construction provides superior optical performance and makes it the most scratch-resistant technology available. In addition, they are sensitive and fast on response, accurate touch position performance. it is widely used in kiosk, gaming, and office automation applications.
SA1020D30-G4 10.2” Dustproof SAW Touch Panel | |
Frame Dimensions |
177 x 265.5(mm) |
Active Dimension |
133.5 x 222(mm) |
Fit in with |
10.2” TFT LCD Panel display device |
Mechanical | |
Construction |
Sensors are sealed inside Aluminum Alloy metal frame |
Input Method |
Finger or gloved hand (rubber ,cloth or leather) |
Active Force |
Stylus or Finger or Similar <85g |
Surface Hardness |
Surface durability is that of glass, Mohs' hardness rating of 7 |
Durability |
>70 million touches |
Positional Accuracy |
<1% |
Touchpoint Density |
>100,000 touchpoints/inch² (15,500 touchpoints/cm²) |
Optical | |
Light Transmission |
>=90% |
Visual Resolution |
Clear surface: Excellent, with no noticeable degradation |
Antiglare surface: 6:1 minimum | |
Gloss |
Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units |
Environmental | |
Temperature |
Operating Range: -20°C ~ 70°C; |
Storage Range: -40°C ~ 85°C | |
Relative Humidity |
Operating Range: 5%~90% RH (no dew falls) |
Storage Range: 5% to 95% RH (no dew falls) | |
Dustproof |
Sealed to prevents dust and dirt |
Altitude |
Up to 5,000m |
Fire Retardation |
Meets the requirements of UL 94HB |
Electrical | |
Supply voltage |
DC5V |
Power Supply |
USB or PS/2 Interface, power ripple max.200mV rms |
Interface |
Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity | |
Electrostatic Protection |
15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4) |
Resolution |
Based on controller resolution of 4096 x 4096 |
Agency Approvals |
CE, FCC, Rohs |
Operating System | |
Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS | |
SA0840D30-G4 Drawing:
Advantage
* Surface Acoustic Wave Technology. Protected touchscreen and dustproof
* Superior image clarity with high light transmission
* Sensitive and fast response
* Durability, deep scratch resistance and abrasion
* Highest resolution
* Activated by finger, gloved hand, leather or soft stylus
* More than 50 million touches in a single point
* Dirt and splash sealed capability
Application
* Point-of –information Kiosks
* Vending and ticket sales
* Electronic catalogs
* Gaming, lottery and amusement
* Public pay phones
* Multimedia Marketing
* Banking/financial transactions
* Industrial control rooms
* Computer-based training
