Casing Roller Centralizer for oilfield cementing
- 10000 Piece / Pieces per Month
- TIANJIN QingDao
- T/T Credit Card
- API-7-1 Standard single cone drill bit
- 6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
- Oil Well Api Oilfield Fishing Tool Overshot Grapple Assembly/Oil Well Magnetic Fishing Head/Cable Righting Fishing Head
- Drop Shipping API Oilfield Releasing Overshot 4 11/16" Oil Fishing Tools LT119
- API compliant fishing tool overshot for oil field downhole work
- Oil Well fishing tool sucker rod overshot/circulating overshots
Product Details
Place of Origin: | Shandong, China | Brand Name: | YUANDA | Model Number: | 3 1/2"-20" |
Type: | Other, Centralizer,spiral | Machine Type: | Other, cementing tool | Certification: | API |
Material: | Other, 35CrMo | Processing Type: | Casting | Use: | Other, cementing well |
Product Description

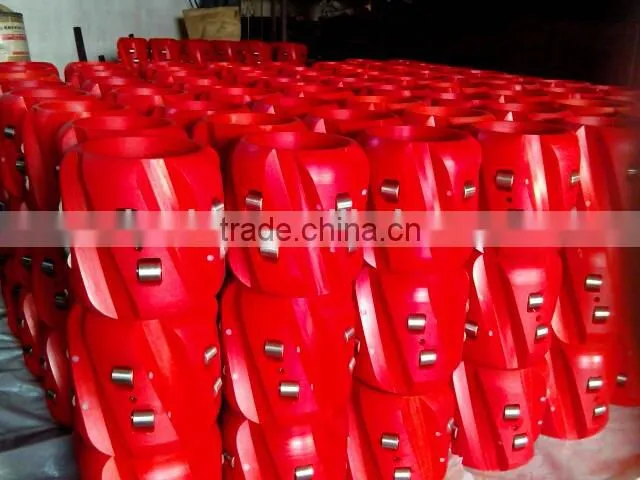

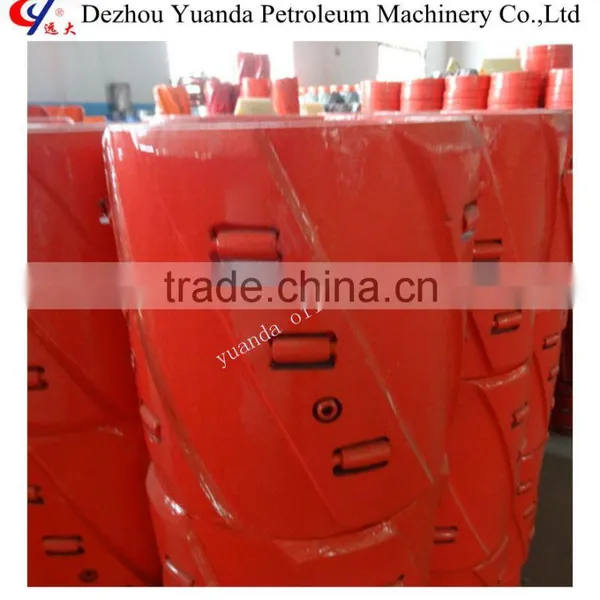

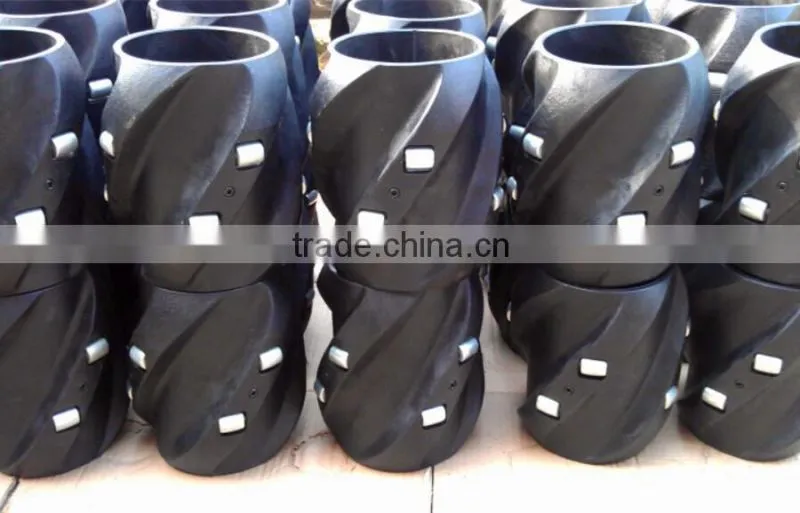

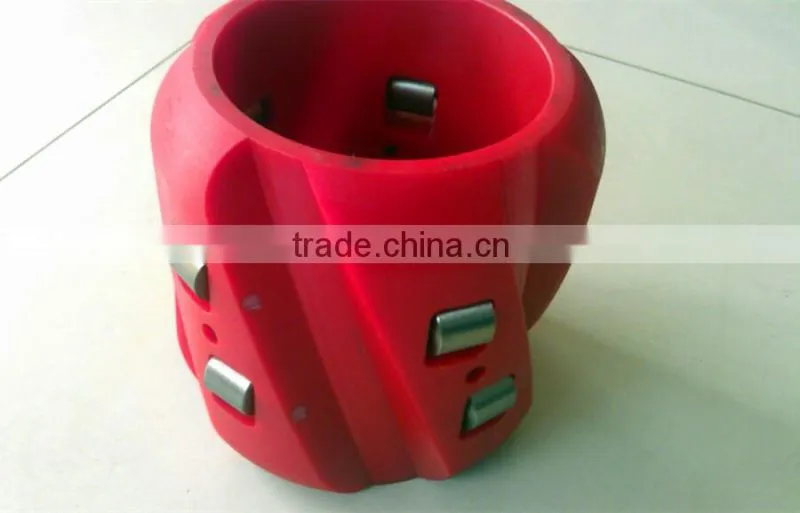

Casing Roller Centralizer for oilfield cementing
The Roller Centralizer consists of rigid body, on which machined five spiral blades or straight blades. There are three modified alloy steel, fully heat treated rollers fixed on every blade. Because of rolling friction between the rollers and inside of well or casing, the capability of the RCR Centralizer is better than others of all. Recommend to use the tool in deviated holes and horizontal holes.
13-3/8"Centralizer Technical parameters(Bore Hole17-1/2")
Size | OD(mm) | ID(mm) | Lenght(mm) | Material | Flow Area% |
339.7 | 432 | 342 | 200 | 35CrMo | 75 |
9-5/8"Centralizer Technical parameters(Bore Hole12-1/4")
Size | OD(mm) | ID(mm) | Lenght(mm) | Material | Flow Area% |
244.5 | 305 | 248 | 200 | 35CrMo | 70 |
7"Centralizer Technical parameters(Bore Hole9-1/2")
Size | OD(mm) | ID(mm) | Lenght(mm) | Material | Flow Area% |
177.8 | 238 | 182 | 200 | 35CrMo | 75 |
7"Centralizer Technical parameters(Bore Hole8-1/2")
Size | OD(mm) | ID(mm) | Lenght(mm) | Material | Flow Area% |
177.8 | 210 | 182 | 200 | 35CrMo | 65 |
5-1/2"Centralizer Technical parameters(Bore Hole8-1/2")
Size | OD(mm) | ID(mm) | Lenght(mm) | Material | Flow Area% |
139.7 | 210 | 142 | 200 | 35CrMo | 41 |
4-1/2"Centralizer Technical parameters(Bore Hole6")
Size | OD(mm) | ID(mm) | Lenght(mm) | Material | Flow Area% |
114.3 | 150 | 116 | 180 | 35CrMo | 42 |
Packaged by wood box then we load them in container by sea or air (when the quantity is small).
Our company has a professional service engineer team on the cementing oilwell, which can provide a reliable, safe well service work according to the customer demand.
a.Assist clients to prepare for the first construction scheme;
b. Install and debug the equipment;
c. Train the first-line operators once customer need
d. Examine the equipment regularly;
e.Take initiative to eliminate the troubles rapidly at site;
f. Distribute the guarantee fittings door-to-door
g.Provide perfect service;
h. Provide technical exchanging;
i.Provide maintenance for big items on your side
Dezhou Yuanda Petroleum Machinery Co., Ltd. is a very famous high tech enterprise in Dezhou of China that
sets oil mechanical product design,development,production,sales and sevice as a whole,and registered capital of 20 million yuan. It is located in Dezhou City, Shandong Province, which covers an area of 78,000 square meters. We have the luxurious office building and two large production plants which cover 9,000 square meters , as well as the acquisition of the advanced production equipment with a total investment of more than 30 million in fixed assets element. Now it employs 128 people, including 38 engineers and technicians, and 86 secondary education workers. At present, we has passed ISO9001 quality system certification of DNV, ISO14001, OHSAS18001 certification.

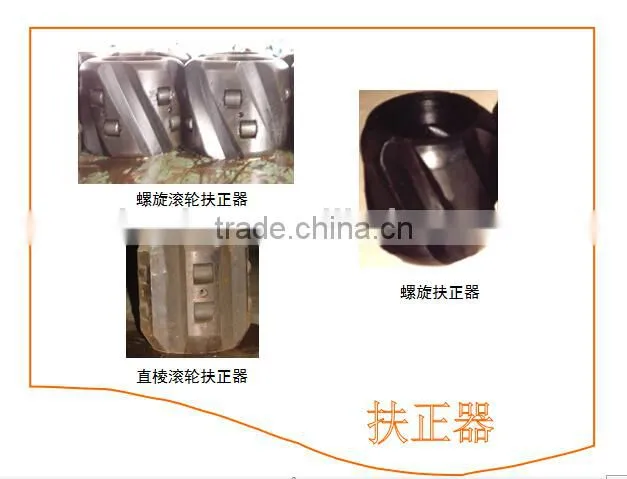

roller centralizer show
