What is the details of our 7.6mm Mini RGB760 Connector System ?
(1)24V/10A 3-poleor 4-pole plug system for 12-24 v RGB strips high voltage connector system for luminaires
(2) The 7.6mm Mini RGB 760 connector system is designed according the IEC60320 standard for lighting industry applications.
(3) 7.6mm outer diameter of mini plug to fits though 8 mm cavity
(4) Connection:max.6A ,24V AC
(5) Cable: 20-24 AWG 3C/4C
What is the Specifications of our 7.6mm Mini RGB760 Connector System ?
|
Model
|
Deacription |
Way |
Connection |
Color |
Wire |
Wire length |
Wire end |
RGB760MP4 |
Distributor |
1 |
10A,24V AC |
White |
20 AWG cable white4C |
Optional |
Tin/Crimp |
RGB760MP3 |
Distributor |
1 |
10A,24V AC |
White |
20AWG cable white 3C |
Optional |
Tin/Crimp |
RGB760FS4 |
Distributor |
1 |
10A,24V AC |
White |
20AWG cable white 4C |
Optional |
Tin/Crimp |
RGB760FS3 |
Male plug |
1 |
10A,24V AC |
White |
20AWG cable white 3C |
Optional |
Tin/Crimp |
|
RGB760FME3 RGB760FME4 |
Male plug |
2 |
10A,24V AC |
White |
20AWG cable white 3C or 4C |
Optional |
Tin/Crimp |
RGB760-4D6 |
Female Socket |
6 |
10A,24V AC |
White |
20AWG cable white 4C |
Optional |
Tin/Crimp |
RGB760-3D6 |
Y Distributor |
6 |
10A,24V AC |
White |
20AWG cable white 3C |
- |
- |
760BI |
Build-in Socket | 1 | 10A,24V AC | ||||
|

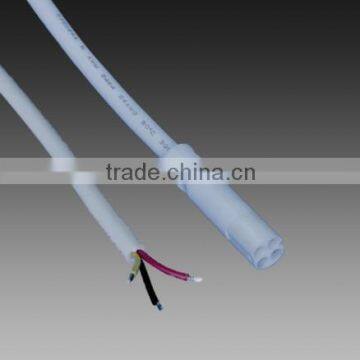

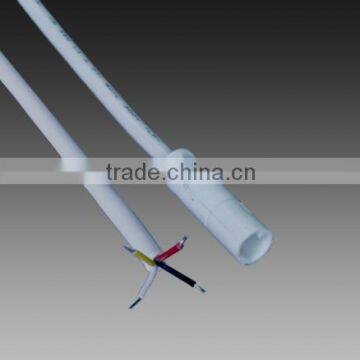

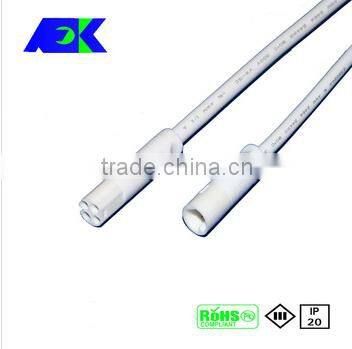

Product Photos

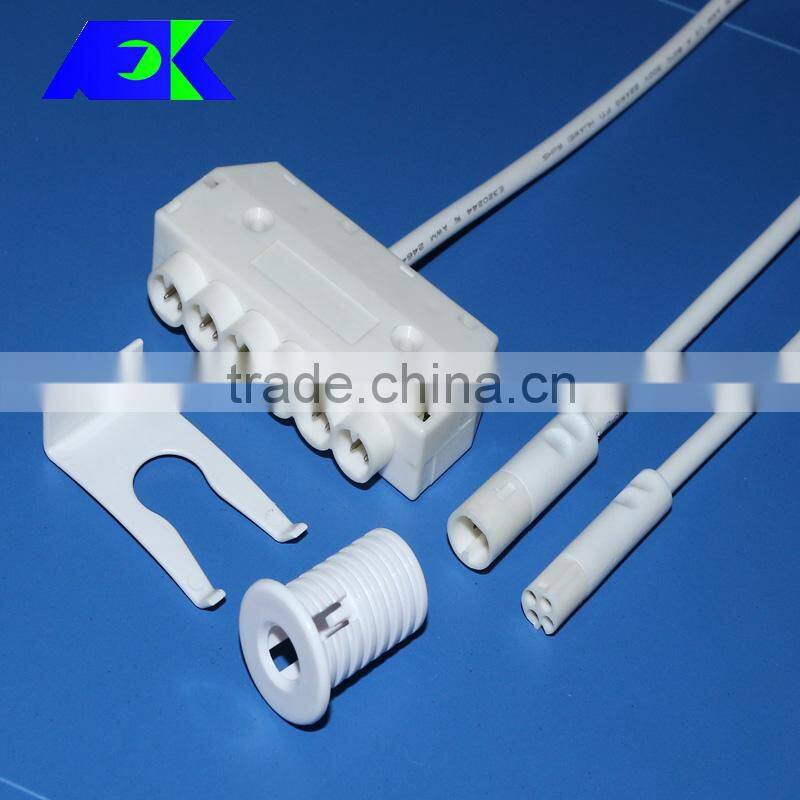

RGB760-3D6

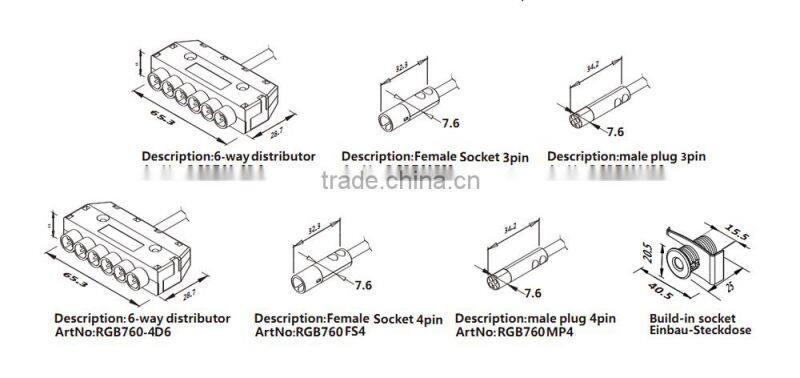

Proudct Size

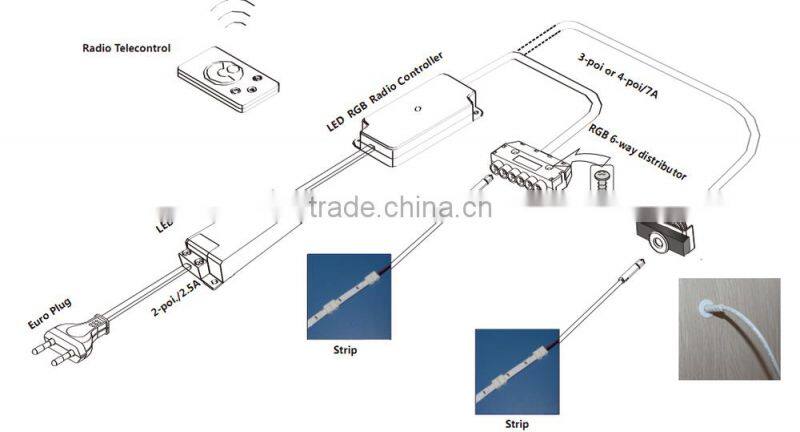

Installation

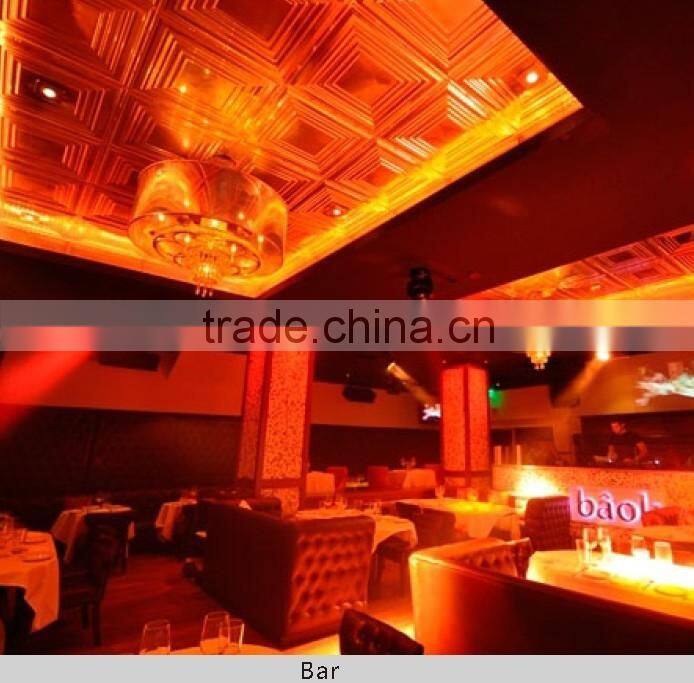

Application
Applicable in power connection and coupling between lamps
such as lighting wiring in offices, kitchen, bathroom, shop and household furniture, display cabinets and mountable lighting..
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Payment Terms
1. Payment: T/T; 30% deposits; 70% balance before delivery.
2. MOQ:500 pcs
3. Warranty : 2 years
4. Package Informations: 20/50pcs per polybag /The volume of the box is 49cmx30cmx19cm
