Specifications
1, 32" touch screen panel kits2, USB input
3, SAW, infrared, capacitive solution

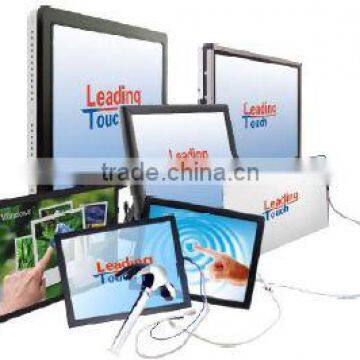

LeadingTouch also produce other size
LeadingTouch Technology Co.,Ltd. is professional manufacture of touch screen, touch monitor and all in one touch panel PC.
1. Mechanical Characteristics

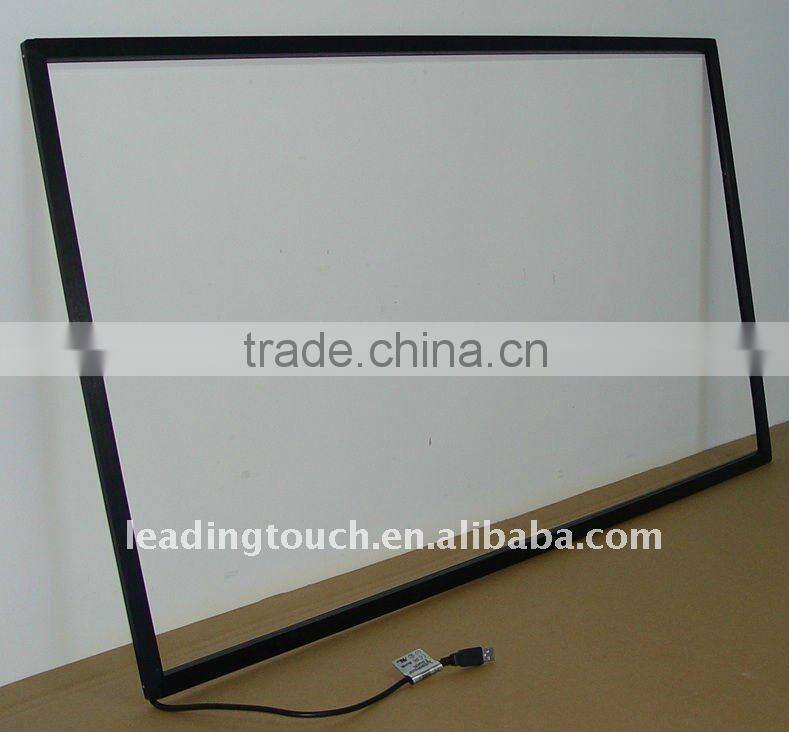

IRS3201U Series infrared touch panel is 32" touch screen panel kits multi-touch dustproof touchscreen that designed to easily fit in a 32” LCD display
.
Active Area |
702mm* 397mm |
Outline Dimension |
741mm*436mm(with frame) |
Resolution |
4096 X 4096 |
Optical element pitch |
5.2mm |
Input Medium |
Finger or gloved hand (rubber, cloth or leather ) |
Min. Touch Medium |
<8mm |
Response time |
20 msec average |
Scan Frequency |
43~50Hz |
Glass Options |
Without glass Or with 4mm tempered glare/AG(anti-glare)/AR(anti-reflective) glass |
Light Transmission |
100% without glass |
Surface Durability |
Mohs' hardness rating : 7. |
Positional accuracy |
Standard error deviation less than 1.5mm. |
Life time |
>50,000,000 touch |
Temperature |
Operating range: -20°C ~ 70°C |
Storage range: -20°C ~ 70°C | |
Humidity |
Operating range: 0%~90% RH (no dew falls) |
Storage range: 0% to 95% RH (no dew falls) | |
Thermal Cycling |
Ambient (0.5 hr) to 65°C / 90%RH (0.5 hr), 12 thermal cycles, temperature range: 2°C/Min |
2.Electrical Specifications
Operating System |
Plug & play, support multi-touch(Dual Touch) function under Microsoft Windows 7/8 operation system without driver. |
With Leadingtouch drivers, support single-touch function under Microsoft Windows 2000/Xp/Xpe/Vista operation system. | |
Controller |
Integrate inside touch panel |
Operation Voltage |
Typical +DC 5V,+4.75V to +5.25V |
Power Supply |
USB, power ripple max.200mV rms |
Current |
Power<2W,operating current<400mA |
Interface |
Full Duplex USB 2.0 (Full Speed) |
Electrostatic Protection |
15KV air / 8KV contact discharges(EN61000-4-2,1995:Level 4) |
Cable and Connector |
Cable typically exits from lower left corner, terminating in USB male connector |

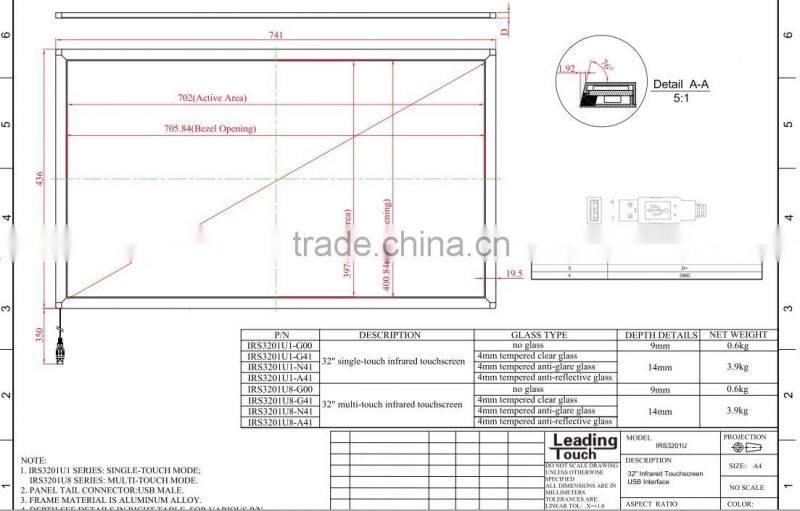

3. Drawing

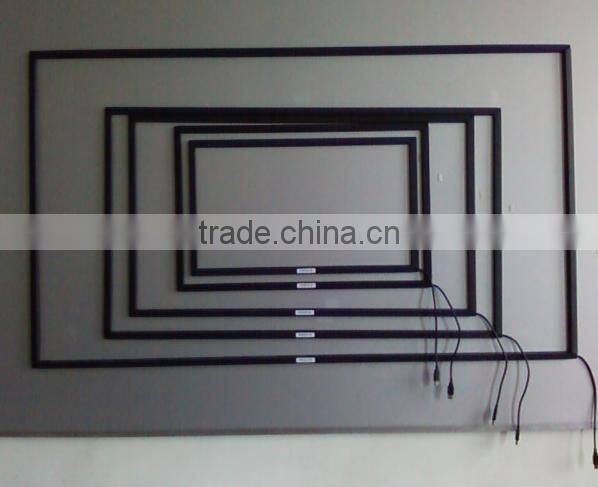

4. Picture with Details

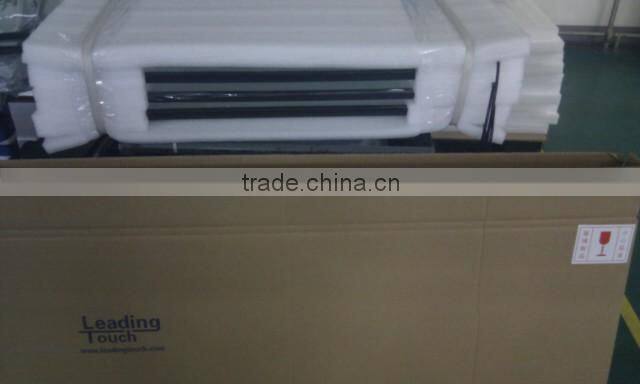

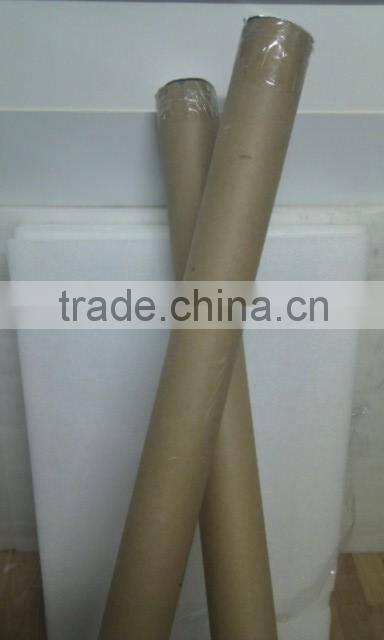

The touch panel can be shipped as assemble or disassmeble, we will package accordingly as below
LeadingTouch support brilliant before-sales service, same brilliant after-sales service.
supply good quality product with good/ beatifull/ sutiable design.
Also accept support Custmization service, design and produce according to customer's requriement.
LeadingTouch Technology Co.,Ltd get FCC, CE, RoHS certification for product, company reach ISO9001
Welcom to visite LeadingTouch Family
Please contact with LeadingTouch for your any requirement to touch product, we will supply the best product with the best service together soon.
