Plexiglass fence
Plexiglass fence Features:
1) High light transmission: Up to 88% that of same thickness of general glass.
2) Excellent impact resistance: 80 times that of glass.
3) Weather and UV resistant: Properties retained for years.: Temperature resistance range is -40º C ~ +120º C, with an ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
4) Light weight: Only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal shaping.
5) Flame resistance: High fire performance rating is class B1.
6) Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
7) An engineering plastic of excellent integration capability. It has outstanding physical, mechanical, electrical and heat capabilities.
ISO 9001: 2008 Quality Assurance
Plexiglass fence Specifications:
Sound barrier design parameter: wind load: fundamental wind pressure W.
According to once every 50 years in two files : W ≤0.45kN/m2 and 0.45kN/m2<w.≤0.75kN/m2..
Vertical load: The vertical load of the sound barrier are suond barrier plate, stand column and the weight of the connection
Sound barrier post bottom load design value:
|
Wind pressure vaiue(kN/m2) |
Height |
Vertical force N (kN) |
Horizontal force Sva (kN) |
Mbending moment M (kN*m) |
w.≤0.45 |
2.0 |
1.70 |
9.1 |
9.4 |
2.5 |
2.64 |
11.4 |
14.7 |
|
3.0 |
3.30 |
13.7 |
21.1 |
|
3.5 |
4.28 |
16.0 |
28.6 |
|
4.0 |
4.92 |
18.3 |
37.3 |
|
0.45<w.≤0.75 |
2.0 |
1.85 |
15.2 |
15.8 |
2.5 |
2.90 |
19.0 |
24.5 |
|
3.0 |
3.62 |
22.8 |
35.1 |
|
3.5 |
4.32 |
26.7 |
47.7 |
|
4.0 |
5.40 |
3.0.5 |
62.1 |
Plexiglass fence performance
Item No. |
Items |
Performance index |
1 |
noise reduction coefficient |
≥0.5 |
2 |
sound reduction index |
≥26dB |
3 |
density |
≤30kg/m3 |
4 |
deflection |
Maximum deflection under standard load≤L/600(L for sound absorption board length) |
5 |
fireproofing |
GB8624-2003 Rules of class B or above |
6 |
weather ability |
JG149-2003 |
7 |
durable years |
≥15 years |
1) Thickness: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm.
2) Width: 1, 220mm, 2, 100mm
3) Weight (Kg/M2): 0.8, 1.2, 1.4, 1.6, 1.9, 2.2, 2.4, 2.6, 3.0, 3.3.
4) Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request)

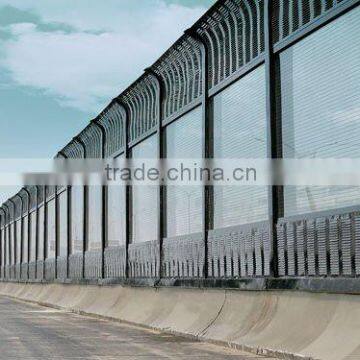

Highway Noise Barrier panel Detail Description
1. Non-Flammability: GB8624 grade A
2. Waterproof :Resistant to deformation in wet environments
3. Sound proof:
4. Strength: Bendable and impact resistant
5. Weight: 35kg/m2
6. Temperature Maintenance
7. Environmental Friendly;
8. Installation: Easy to cut, saw, nail, paint and veneer
Sound barrier Panel thickness: 80mm, 100mm,120mm
Sound barrier Size: 2500x500x80mm, 2500x500x100mm, etc.
Sound barrier Metal plate thickness: 0.5-1.2mm
Sound barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Sound barrier Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.
Sound barrier Panel type: shutter type, punching type.

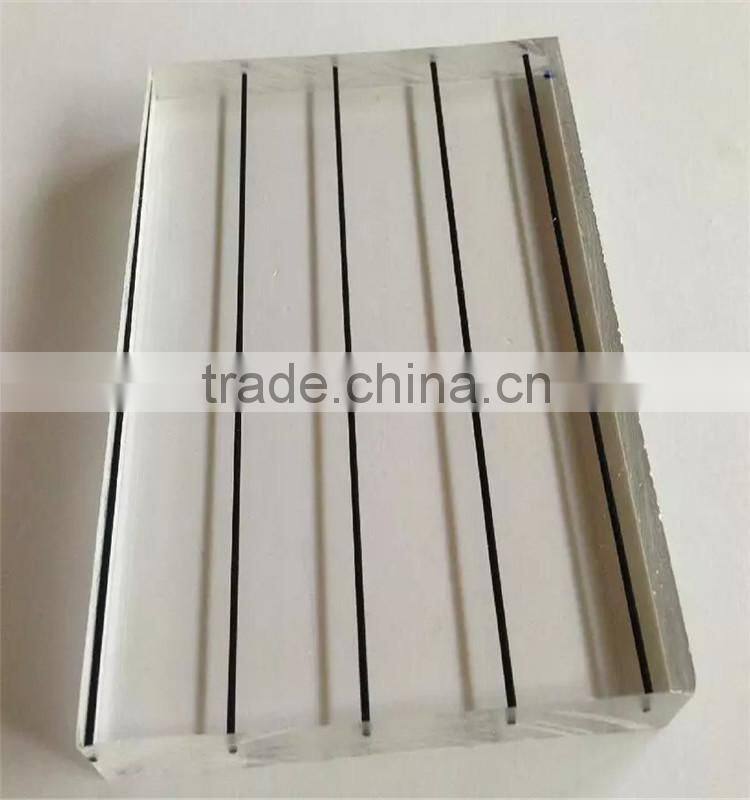

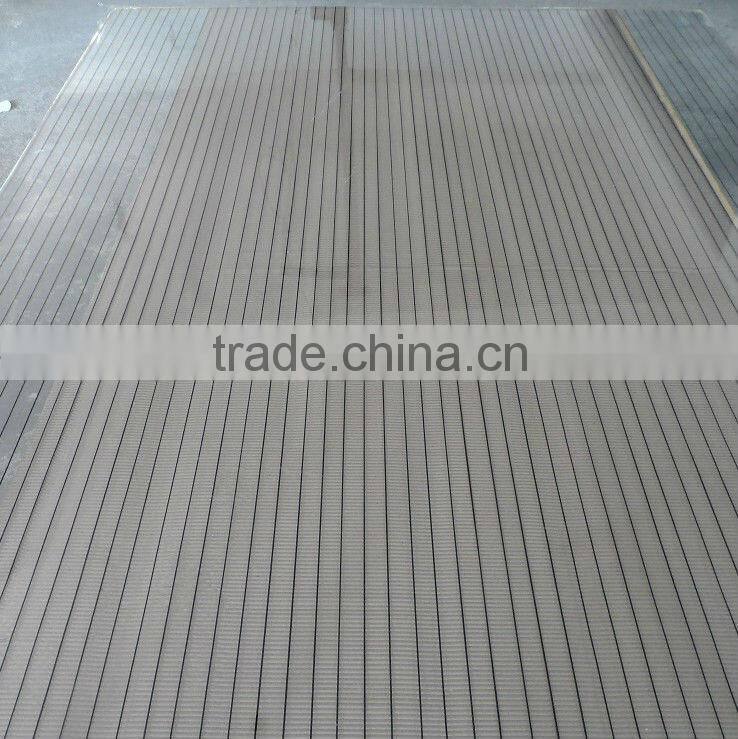

Photos of Plexiglass fence

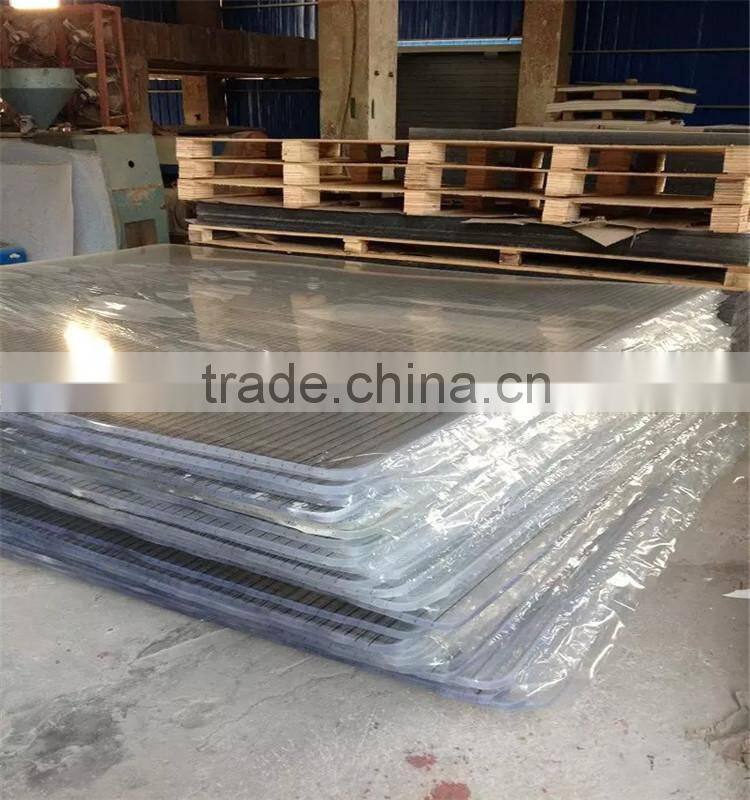

Packing of Plexiglass fence
