7" High DPI Monitor 800*600 Tft Lcd Display Which Can be Used for a Variety of Industry

Specifications

1.TFT- LCD Module with Serial Interface.
2.Lcd module with touch screen.
3.Can be controlled by any MCU command set
4.ODM/OEM

TFT-LCD Module:



1.Touch-controller & TFT display system.

2.Control by Any MCU via "Instruction Set".

3.Low price HMI device.

4. TFT LCD



 Model: STI070WT-02 (Eco









nomic Type)



Description
Size	7''
Module	CPU
Colour	65K (16 bit)
Resolution:	800*600(4:3)
Flash memory	128M
With High-precision Touch-Screen & RTC & KB
Temperature	-20°C-+70
Moisture	60°C,90%
Voltage	4.5V-20V
Backlight	LED
Brightness	300cd/m2
Viewing Area	141.6*106.2 mm
Power Consumption	1.8 W
Interface	RS232/RS485/TTL/USB
Processing Speed	Switch 10 Pictures per second





Function:

1. Touch-Control

2. Display-Picture

3. Display-Text

4. Display-Graph

5. Read & Store Data.



Application Field:

Medical & Cosmetology Equipment, Electronic-Instrument, Industry Controller, Electric Power Industry, Engineering Machinery, Civilian Electronic Product and so on.

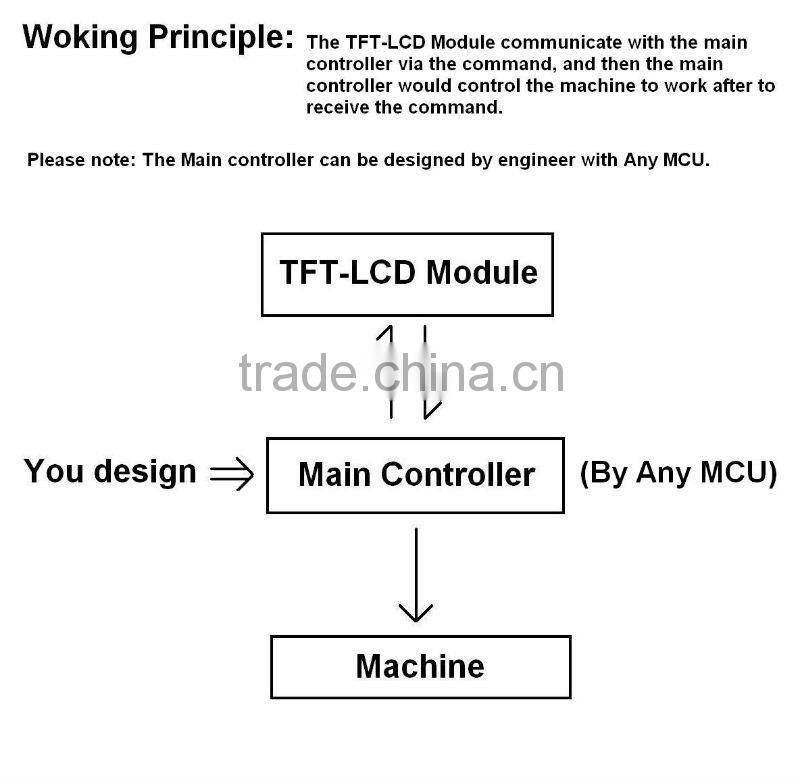

 Operation:

It’s very easy for any engineer to use it, there are only two steps you need to do.

1. Connect your equipment with our TFT-Module by UART port (RS232 or USB) or TTL logic directly, Plug and Play.

2. Write a control program for any MCU to work the TFT-Module via "Instruction Set".  .



Quality:

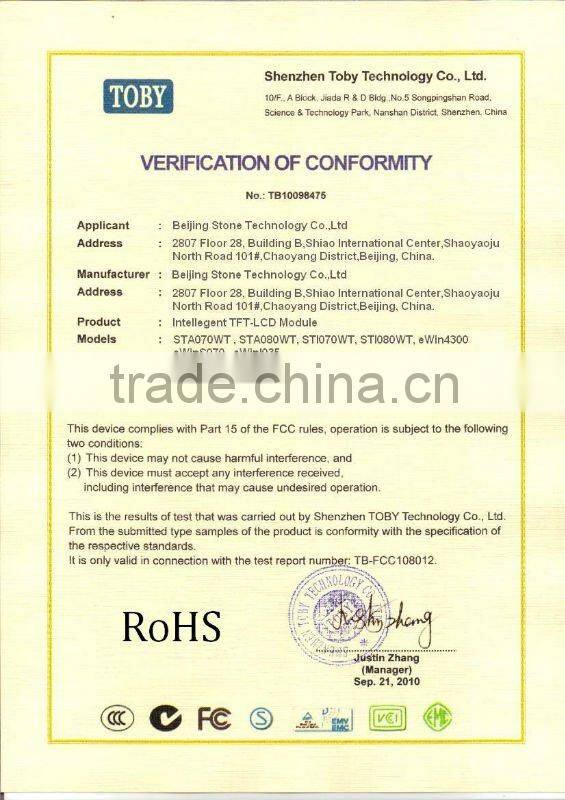

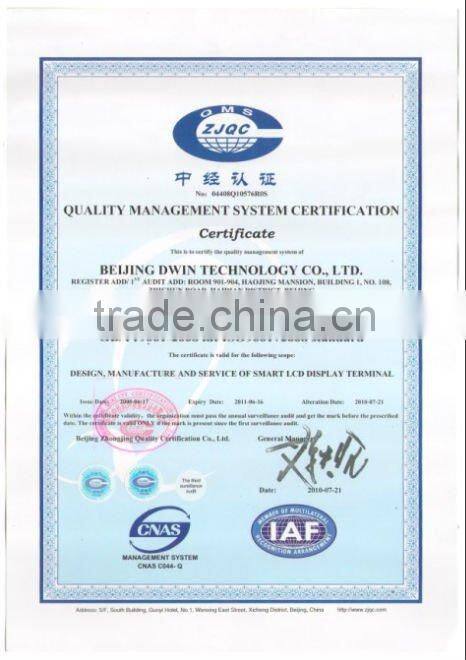

Pass the CE & ROHS certification, and ISO9001:2008 Quality Management System.

Delivery Term:

Within 2 weeks for all order.



Quality Guarantee and Warranty Period:

 The warranty period will last 5 years after delivery. If there is any technical or quality problem in warranty period, we guarantee the goods will be replaced by new product unconditionally.
