API standard well head equipment double plug cement head
cementing head is a special tool for pumping slurry and releasing plug.
It can couple with two plugs at the same time, and makes the drilling fluid fill into casing in turn and quickly.
This can simplify the cementing operation, prevent cement pollution.

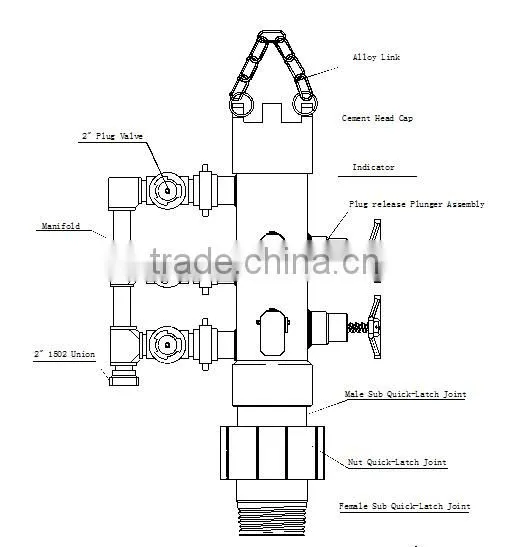

1.The structure of the SSC- D
double Plug Cement Head as fellow. It's bottom has a quick-latch joint, it be used to connection with casing. The body contains plug. Screw-bar block plug. Open cement head cap can put plug into cement body. Union interface can be connected with cementing pipeline or displace mud. cement head cap,body and
quick-latch joint are used with large trapezoidial-thread,
it makes the tool convenient to disassemble and carry.
2. FEATURES
(1). Quick-latch joint is designed to offer easier, faster and safer makeup for two-stage cementing. It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads.
(2). Positive lever indicates plug releasing.
(3). Structure is very reasonable, main parts are made from AISI4145H alloy steel.
(4). Cement head cap and nut quick-latch joint with large trapezoidial-threaded, it makes the tool convenient to disassemble and carry.
3. MAIN TECHNICAL PARAMETERS
Specifications, mm (Inch) |
168mm (6 5/8") |
244.5mm (9 5/8") |
298.45mm (11 3/4") |
339.7mm (13 3/8") |
Working Pressure, MPa |
35 |
35 |
21 |
21 |
Connection Thread |
6 5/8"BTC |
9 5/8"BTC |
11 3/4"BTC |
13 3/8"BTC |
Manifold |
2" 1502 Union |
2" 1502 Union |
2" 1502 Union |
2" 1502 Union |
I.D. of Plug Container, mm |
160 |
225 |
280 |
320 |
Length of Plug Container, mm |
450 |
550 |
550 |
600 |
Overall Length, mm |
2000 |
2300 |
2300 |
2440 |
Dezhou Yuanda Petroleum Machinery Co., Ltd. is a very famous high tech enterprise in Dezhou of China that
sets oil mechanical product design,development,production,sales and sevice as a whole,and registered capital of 20 million yuan. It is located in Dezhou City, Shandong Province, which covers an area of 78,000 square meters. We have the luxurious office building and two large production plants which cover 9,000 square meters , as well as the acquisition of the advanced production equipment with a total investment of more than 30 million in fixed assets element. Now it employs 128 people, including 38 engineers and technicians, and 86 secondary education workers. At present, we has passed ISO9001 quality system certification of DNV, ISO14001, OHSAS18001 certification.
1.Question:How to store?
Answer :The product should be stored in a dry warehouse with a flat ground, the accessories should be
kept away from rain, sunshine and exposure of sea water. Make sure not to unpack or remove
the plastic bags unless you need it to work.
2.Question:How to transport?
Answer :Handle with care, no deformation should occur due to dropping or collision during convey.
3.Question: What's the demand for maintenance?
Answer :Storage time should not exceed 2 years.
