12v 1inch solenoid air valve waterproof
Description
This solenoid valve is made to guarantee the gas interception either for gas detector signals (methane, lpg, carbon monoxide and so on) and safety thermostats, or for an electric black out.
In order to be more reliable this solenoid valve can be reset only when electrically supplied and only if the gas detector doesn’t send any danger signal.
Simply powering the coil does not open the valve. The reset mechanism has to be operated by hand (MANUAL RESET).

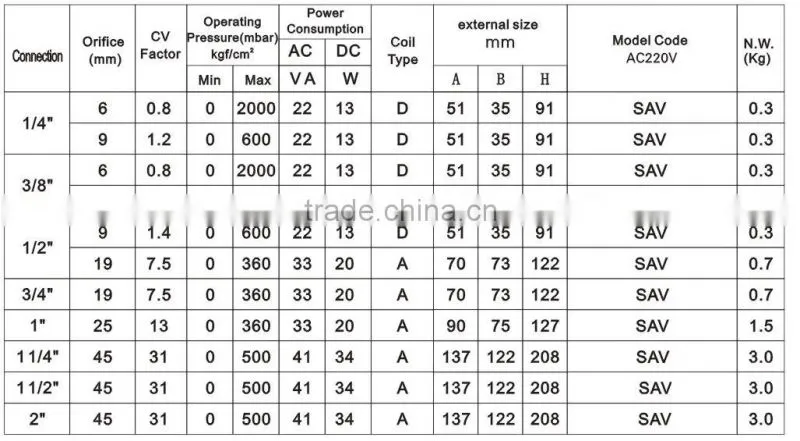

Technical Parameters
1. Direct acting zero differential pressure, large flow rate
2. 2-way normally closed solenoid valve,closed when de-energized,open when energized.
3. Open and closed time : less than 1 second
4. Material :
Main valve body : die-casting aluminium
Other parts : stainless steel / brass
Seal : NBR viton
5. Media : coal gas, natural gas, and air
6. Media temp. : less than 65°C
7. Ambient temp. : 0~50°C
8. Voltage : DC12V,DC24V,AC220V
9. Voltage tolerance : ±10%
10. Class : H
11. Explosion-proof, EX class : EXMⅠ/ⅡT4
12. Installation : flow s the arrow, solenoid vertical and upright direction

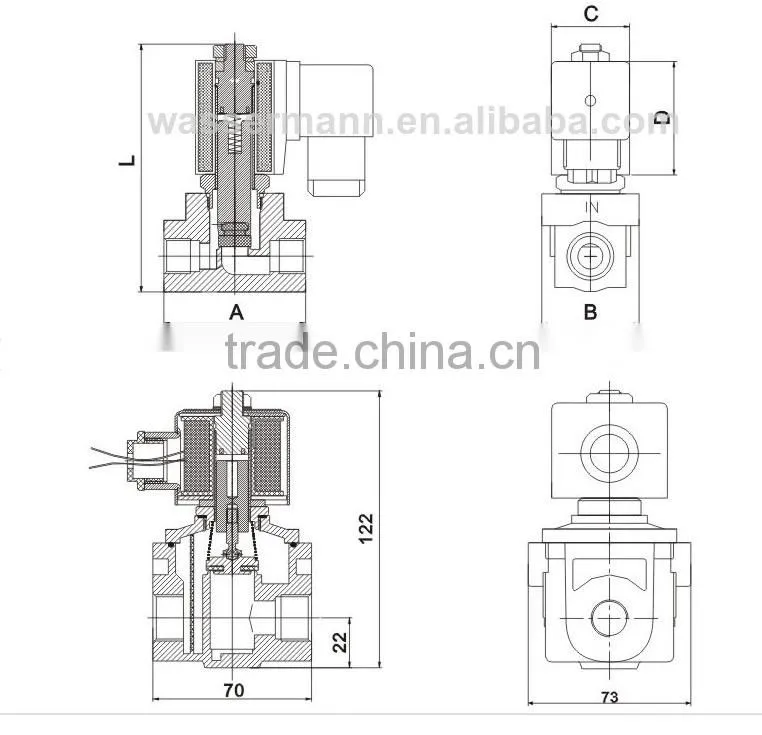

Dimensions
...
