China Manufacturer Support all sizes of SSD+HDD Top Quality Htpc Keyboard
Partaker N550features
1.Ultra Small Form Factor
2. It comes with 3G card slot, Can install the 3G SIM on it.
3. 3 times faster working speed then 1037U
4. Can Embedded with windows/Linux OS
5. Network card RJ45 with 100Mbps/1000Mbps self-adaptive
Partaker N550 as type 1. 2. 3.
N550 mini pc adopts multi-thread intel Baytrail dual core CPU, 1.7-2.6GHZ Turbo boost,it has strong office processing performance, Low consumption,high performance.adopt the black metal shell which looks very professional and high-end. Firm and shakeproof enough.
This N550 is your best choice for both working and Entertainment .
Specification
Specification |
||
Model Number |
N550 i5-3317u |
|
Processor |
Onboard Intel Core i5 3317U 1.7GHz |
|
Max 2.6GHz(Turbo boost ) |
||
Dual Core 4 thread |
||
Operating System |
Windows XP/ Windows 7/ Windows 8/ Linux |
|
Storage |
Support all sizes of SSD+HDD |
|
Memory |
SO-DIMM DDR3L 204PINS Max. 8G RAM |
|
Memory Type |
DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
|
Motherboard |
Intel ChiefRiver(Intel Ivy Bridge-HM65 |
|
Express High Speed Chipset) |
||
Processor details |
||
CPU |
Intel Core i5 3317U |
|
Clock Speed |
1.7GHz(100MHz x 17.0) |
|
Turbo clock Speed |
2.6GHz |
|
Processor Number |
2 core/ 4 threads |
|
Core code |
Ivy Bridge |
|
Technique |
22nm |
|
Characteristic |
MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT… |
|
BIOS |
AMI BIOS, ACPI supported, support call on fanction automatically, Wake-On-LAN |
|
Function |
Hyper-Threading, Virtualization technology, 64 bit computing |
|
Graphic Cards |
Intel Ivy Bridge Graphics |
|
Controller(1803MB/Intel) |
||
Intel HD Graphics 4000 |
||
Audio Cards |
ALC662 sound chip, 6-channel |
|
Intel Panther Point HDA |
||
Network card |
RTL8111E PCI-E Gigabit Ethernet NIC |
|
|

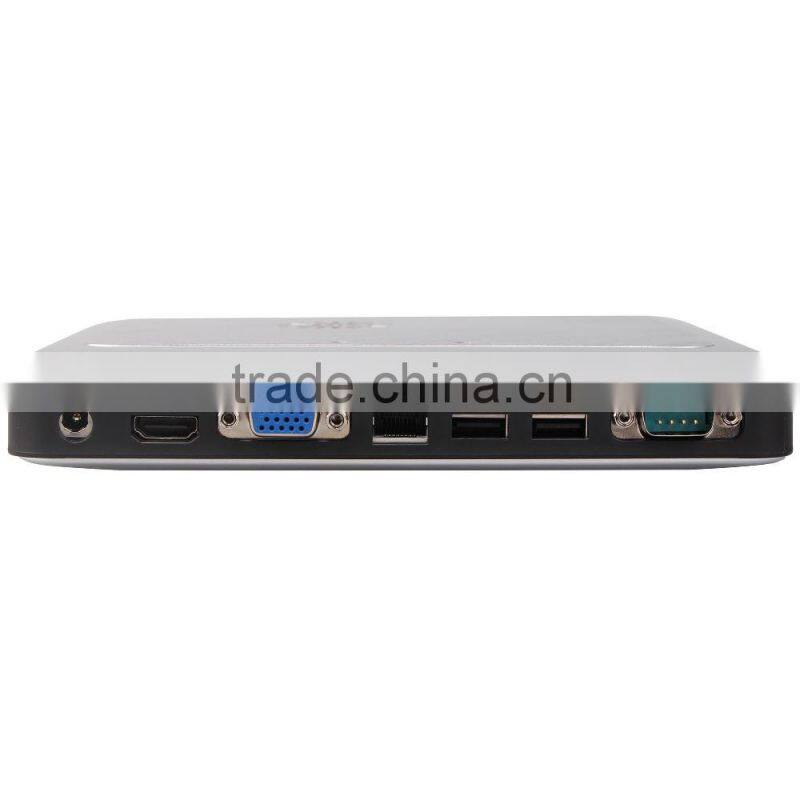

Backside ports |
2*USB2.0 port 1* Power indicator and switch |
|
Ethernet |
10/100/1000 BaseT LAN |
|
WIFI |
With dual antenna, 802.11.b/g/n(150M or 300M) |
|
I/0 Port |
||
Display port |
1 * VGA + 1 * HDMI |
|
USB port |
4 * USB2.0 2*USB 3.0 |
|
SATA port |
1 * MSATA3.0, 6Gb/s; 1 * SATA2.0 , 3Gb/s |
|
MINI PCIE |
1 * MSATA SSD, 1 * WiFi module |
|
Ethernet port |
RJ45 10/100/1000 Mbps Adaptive |
|
Power input port |
1 inner diameter 2.5mm,external diameter 5.5mm |
|
Audio port |
Standard 3.5 Audio input and output |
|
Power and Working Environment |
||
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/5A |
|
Consumption |
17W |
|
Noise |
0 |
|
Temperature |
0-70 Centigrade |
|
Humidity |
10%-90% |
|
