Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323

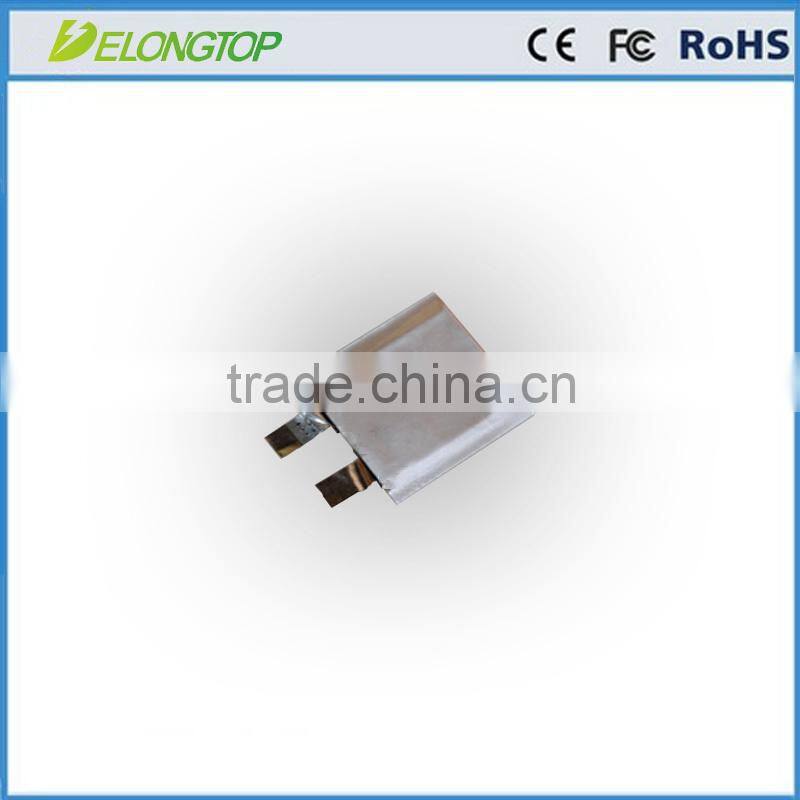

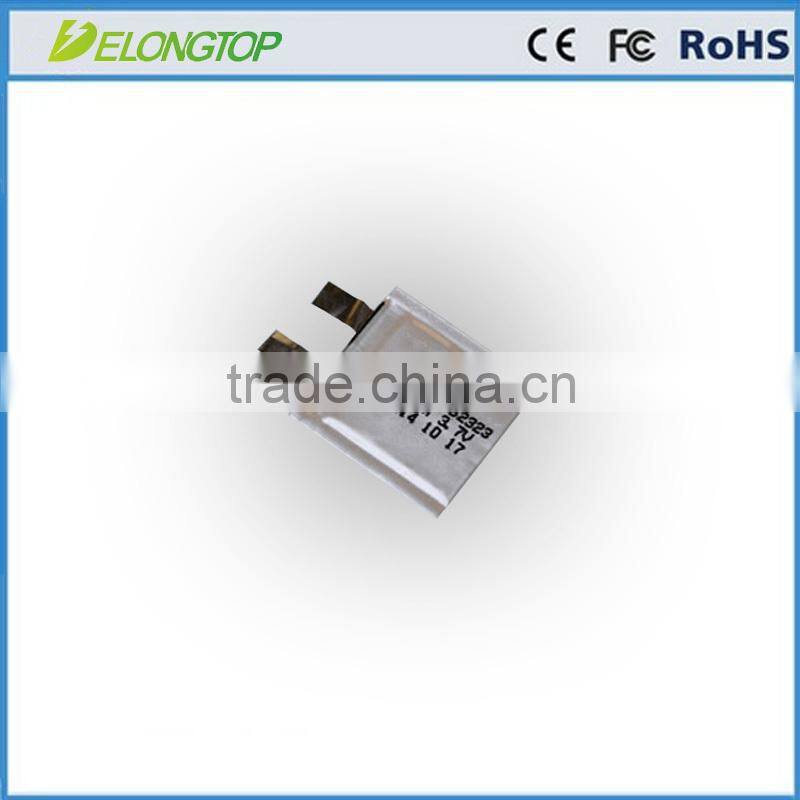

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323

Name: Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323
Brand: DELONGTOP
SKU: 117848551
Availability: InStock

Shenzhen Delong Energy Technology Co., Ltd.

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 thumbnail-1

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 thumbnail-2

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 thumbnail-3

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 thumbnail-4

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 photo-1

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 photo-2

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 photo-3

Ultra Thin Lithium Ion Polymer Battery Small Li-po Battery 052323 photo-4

US$ 0.8 - 2 MOQ: 10000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DELONGTOP

Model Number:

DEL-052323

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DELONGTOP

Model Number DEL-052323

Type Li-polymer

Nominal Voltage Other, 3.7V

Size Other, 052323

Nominal Capacity 10mAh

Item			Rating	Note
Capacity		Typical	10mAh	Discharge:0.2CmA cut off Voltage:2.75V
		Nominal(Minimum)	10mAh
Nominal Voltage			3.7V	Discharge:0.2CmA cut off Voltage:2.75V
Discharge Cut-off Voltage			2.75V
Charge Current			0.5C mA	Standard Charge
Max. Charge Current			1.0C mA
Charge Voltage			4.2V
Max. Charge Voltage			4.23V
Charge Time			Approx 3.0h	Standard Charge
Fast Charge Time			Approx 2.0h	1.0CmA
Standard Discharge Current			0.5C mA	Standard Discharge
Max. Discharge Current			2.0C mA
Weight			Approx 8.0 g
Operating Temperature	Charge		0~+45℃
	Discharge		-20~+60℃
Storage Temperature	less than 1 month		-20~+45℃	Recommended storage temperature: 25℃,at the shipment state
	less than 6 months		-20~+35℃

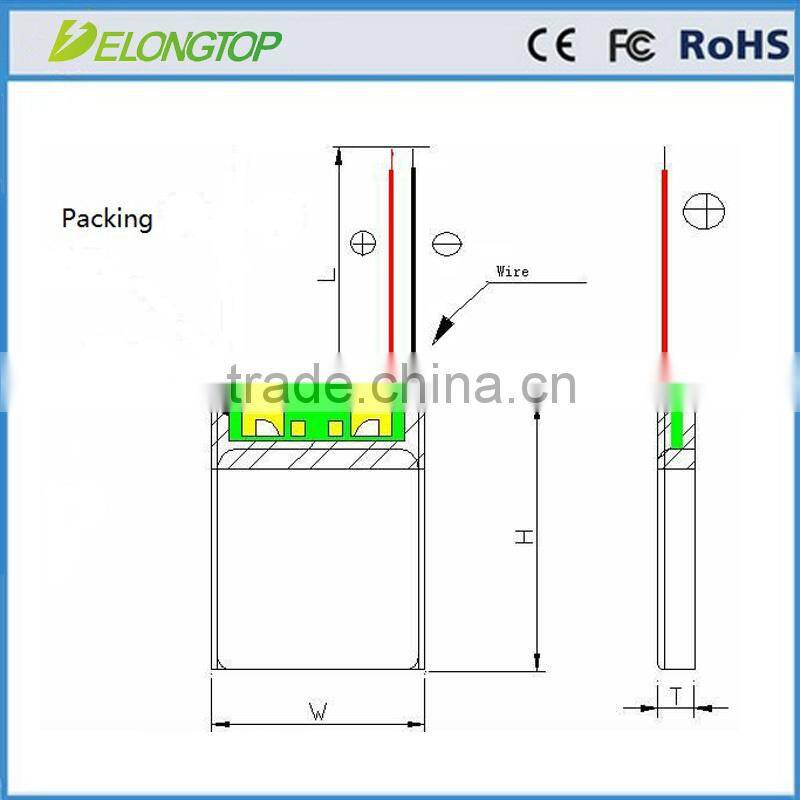

TYPE	Rated	Thickness	Width	length	Nominal	Charge current	Charge time	Discharge current
TYPE	Capacity	Thickness	Width	length	Voltage	Charge current	Charge time	Discharge current
	(mAh)	(mm)	(mm)	(mm)	(V)	(mA)	(H)	(mA)
201030R	43	2	10	30	3.7	0.5C	2.5~3.5	0.5C
201021R	22	2	10	21	3.7	0.5C	2.5~3.5	0.5C
200830R	32	2	8	30	3.7	0.5C	2.5~3.5	0.5C
251341R	95	2.5	12	41	3.7	0.5C	2.5~3.5	0.5C
501215	50	5	12	15	3.7	0.5C	2.5~3.5	0.5C
361215R	40	3.6	12	15	3.7	0.5C	2.5~3.5	0.5C
622238	450	6.2	22	38	3.7	0.5C	2.5~3.5	0.5C
451937	250	4.5	19	37	3.7	0.5C	2.5~3.5	0.5C
502030	240	5	20	30	3.7	0.5C	2.5~3.5	0.5C
302547	320	3	25	47	3.7	0.5C	2.5~3.5	0.5C
302436R	220	3	24	36	3.7	0.5C	2.5~3.5	0.5C
382030	190	3.8	20	30	3.7	0.5C	2.5~3.5	0.5C
301009	12	3	10	9	3.7	0.5C	2.5~3.5	0.5C
301009L	8	3	10	9	3.7	0.5C	2.5~3.5	0.5C
502025	180	5	20	25	3.7	0.5C	2.5~3.5	0.5C
301240	110	3	12	40	3.7	0.5C	2.5~3.5	0.5C
241240R	80	2.4	12	24	3.7	0.5C	2.5~3.5	0.5C
250816R	13	2.5	8	16	3.7	0.5C	2.5~3.5	0.5C
501320	75	5	13	20	3.7	0.5C	2.5~3.5	0.5C
251215R	20	2.5	12	15	3.7	0.5C	2.5~3.5	0.5C
251515R	28	2.5	15	15	3.7	0.5C	2.5~3.5	0.5C
153030R	85	1.5	30	30	3.7	0.5C	2.5~3.5	0.5C
142828R	65	1.4	28	28	3.7	0.5C	2.5~3.5	0.5C
233080R	560	2.3	30	80	3.7	0.5C	2.5~3.5	0.5C
253030	180	2.5	30	30	3.7	0.5C	2.5~3.5	0.5C
255050	500	2.5	50	50	3.7	0.5C	2.5~3.5	0.5C
301013	14	3	10	13	3.7	0.5C	2.5~3.5	0.5C
301017	16	3	10	17	3.7	0.5C	2.5~3.5	0.5C
301025	43	3	10	25	3.7	0.5C	2.5~3.5	0.5C
301030	62	3	10	30	3.7	0.5C	2.5~3.5	0.5C
303030	230	3	30	30	3.7	0.5C	2.5~3.5	0.5C
303040	320	3	30	40	3.7	0.5C	2.5~3.5	0.5C
303048	420	3	30	40	3.7	0.5C	2.5~3.5	0.5C
303540	430	3	35	40	3.7	0.5C	2.5~3.5	0.5C
305050	750	3	50	50	3.7	0.5C	2.5~3.5	0.5C
323540	400	3.2	35	40	3.7	0.5C	2.5~3.5	0.5C
402528	230	4	25	28	3.7	0.5C	2.5~3.5	0.5C
451124	65	4.5	11	24	3.7	0.5C	2.5~3.5	0.5C
501320	75	5	13	20	3.7	0.5C	2.5~3.5	0.5C
541835	280	5.4	18	35	3.7	0.5C	2.5~3.5	0.5C
251341	90	2.5	13	41	3.7	0.5C	2.5~3.5	0.5C
201021	23	2	10	21	3.7	0.5C	2.5~3.5	0.5C
201024	26	2	10	24	3.7	0.5C	2.5~3.5	0.5C
201030	41	2	10	30	3.7	0.5C	2.5~3.5	0.5C
202580	270	2	25	80	3.7	0.5C	2.5~3.5	0.5C
205080	550	2	50	80	3.7	0.5C	2.5~3.5	0.5C
252090	260	2.5	20	90	3.7	0.5C	2.5~3.5	0.5C
252270	320	2.5	22	70	3.7	0.5C	2.5~3.5	0.5C
254045	300	2.5	40	45	3.7	0.5C	2.5~3.5	0.5C
233045	200	2.3	30	45	3.7	0.5C	2.5~3.5	0.5C
233070	370	2.3	30	70	3.7	0.5C	2.5~3.5	0.5C
242269	340	2.5	22	60	3.7	0.5C	2.5~3.5	0.5C
251343	85	2.5	13	43	3.7	0.5C	2.5~3.5	0.5C

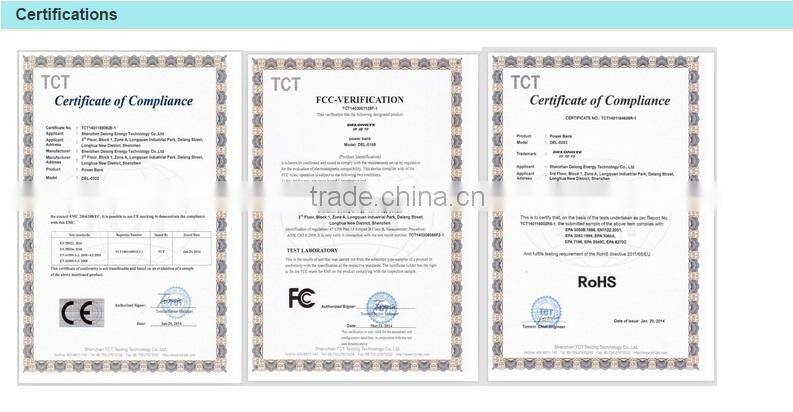

Certification:(CE/ROHS/FCC/MSDS/UN38.3)

Payment and shippment:

FAQ

1. Q: Can i get some samples for test?

A : Of course, the sample is available for test.

2. Q: Can i print brand on the power bank whatever i asked for ?

A: Yes, we can print it in the power bank according to your requirement.

3. Q: The capacity of power bank is real,right?

A: Yes, all of our products are used by the A grade 18650/lipo cell which has the real capacity, if need, we can also use the samsung 18650 cells to build in the power bank according to your requirement.
