Specifications
Electric-Driver Machine for Ground Screw Driling can dig and drill by changing certain parts and can drill ground screw.Electric-Driver Machine for Ground Screw Driling
A.FUNCTIONAL DESCRIPTION .
WBQ ground screw drivers are designed to install or remove various sizes and types of WBQ ground screws.
B. ASSEMBLY
This driver is shipped completely assembled,only the counter torque devices to be fixed during drilling the ground screw. Detailed informations for assembly refer to attached video CD.
C. Drill out the ground screw
There is a reverser on the handle of host machine. When we push the reverser, the host machine will contrarotate. Then ground screw will be drilled out.
D. Control instrument regulation
When the ground screws work normally, the adjusting knob of control instrument can be adjusted to maximum. It can ensure the host machine output the biggest torque.
E. Technical Parameters
Rated Torque (Nm) |
Rotation Speed (r/min) |
Rated Voltage |
Rated Current |
Square Head Size |
Host Machine Net Weigh t(kg) |
Maximal Ground Screw |
1500 |
8 |
220V/ 60Hz |
4A |
25*25 |
10 |
Φ68*1000 |

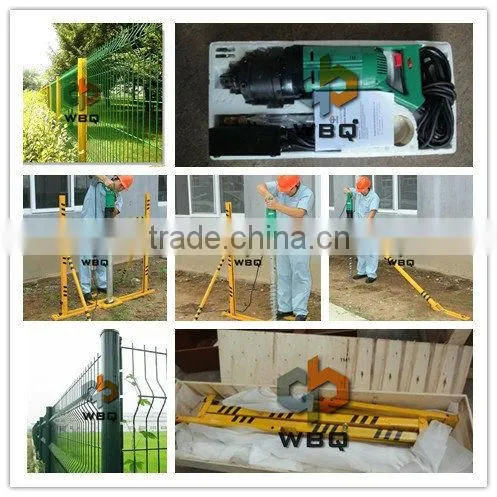

F Three pattern of the counter torque device

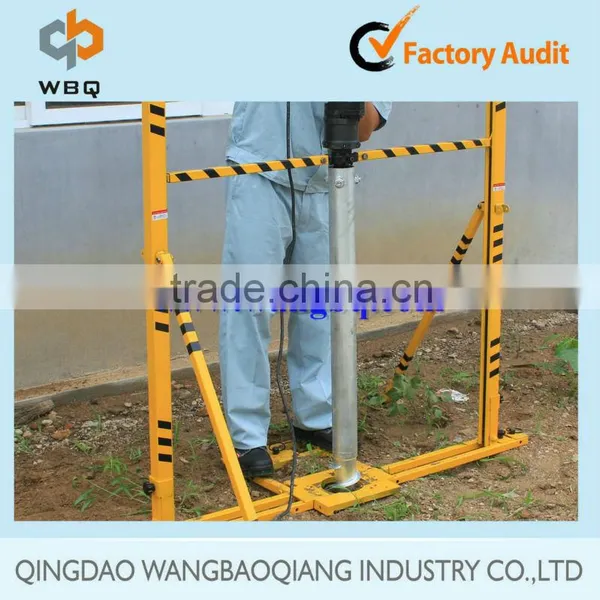

The single counter torque device for mini-type ground Screw
b) The double counter torque device for bigger Ground Screw
c) The drag pole type counter torque device used for the uneven ground
