Specifications
1. Spiral Piling Machine for ground screw and solar monunting system2. Easy to opeartion, can be used for drill and dig.
1. Spiral Piling Machine for ground screw and solar monunting system Technical Date:
| Spiral Pliling Machine | ||
| Main Data | Unit | SWDL150 |
| Opeation Parameter | ||
| Pile Diameter | mm | 76 |
| Pile Depth | mm | 1800 |
| Chassis | ||
| Track base | mm | 1430 |
| Gauge | mm | 1150 |
| Ground width | mm | 250 |
| Ground clearance | mm | 280 |
| Blade length | mm | 1400 |
| Engine | ||
| Model | YANMAR-3TNV82A | |
| Displacement | L | 1.331 |
| Power/Speed | KW/RPM | 16/2200 |
| Fuel tank | L | 2 |
| Feed | ||
| Length of drillring | mm | 3400 |
| Feed length | mm | 2000 |
| Feed speed | m/min | 2 |
| Travelling | ||
| Travel speed | KM/H | 4.7/2.6 |
| Traction force, max | KN | 19 |
| Hill climbing ability | 20 | |
| Rotary | ||
| Roatry speed, max | RPM | 40 |
| Rotary torque,max | N.M | 3000 |
| Diamension | ||
| Gross weight | KG | 3000 |
| Diamension(L*W*H) | mm | 5650*1400*2600 |

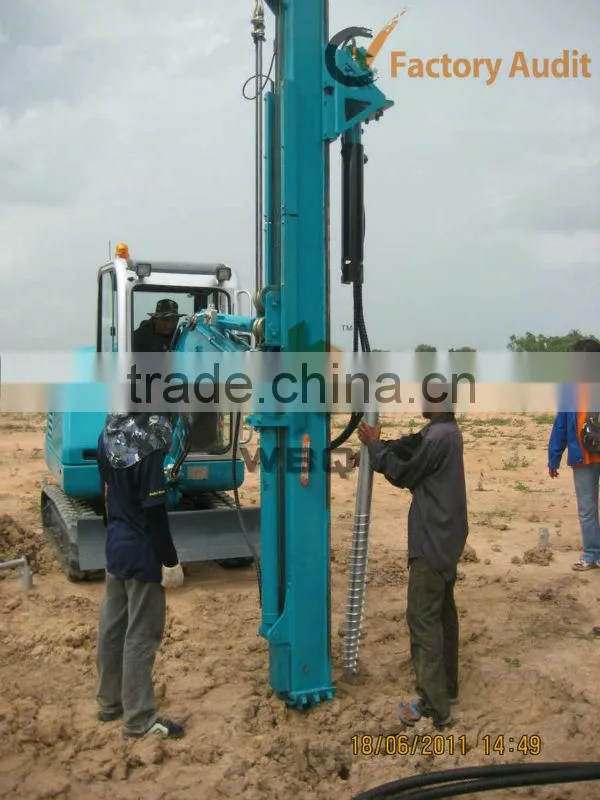

Spiral Piling Machine for ground screw and solar monunting system

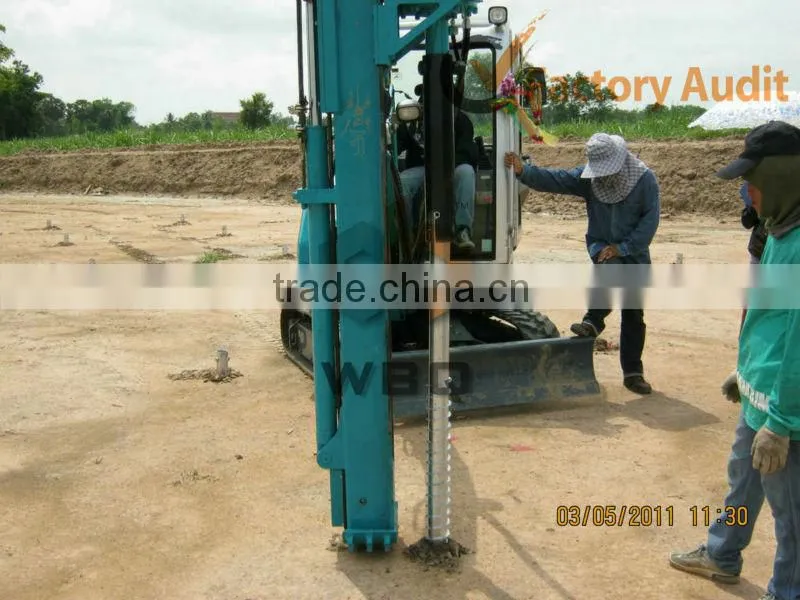

Spiral Piling Machine for ground screw and solar monunting system
