Solar Ground Screw Anchor WBQ N114*1200L

Brief Introduction of WBQ Company:

• Making history: since 1990
• Main market: the European, USA, Asia market
• Special spec. or marks can be made according to clients' instruction
• Owning related intellectual properties

A. Details of WBQ Solar Ground Screws Anchor:

1. Outer dia: 65mm

2. Length: 1200mm

3. Material: ISO630 Fe A / DIN EN10025 Fe 360 B

4. Tube thickness: 3mm-4mm

5. Surface finish: Hot Dip galvanize to DIN EN ISO 1461-1999

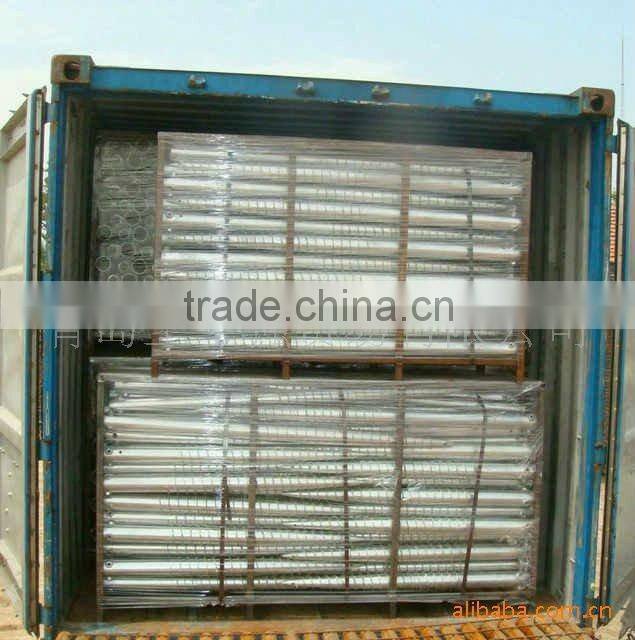

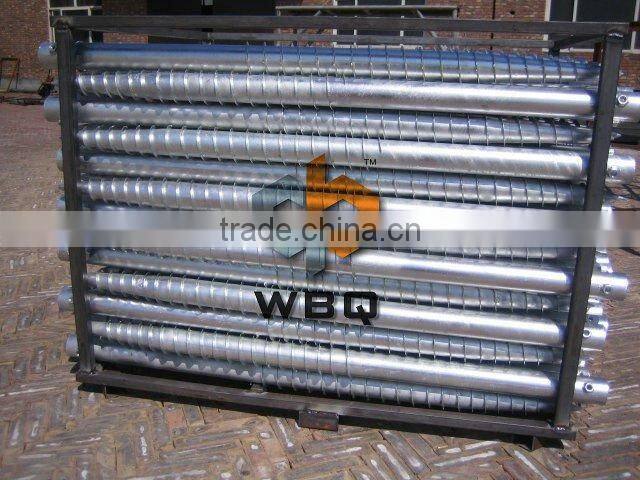

6. Packing: steel pallet and stretch film

7. Applications: foundation system for solar mounting system,fences,wooden house,advertising boards, flag poles,etc.

8. Application Scope: Clayed Ground, Desert, Gobi Desert

9. Drawing force: 20.5 KN

10.Loading power: 35 KN

11.Horizontal torque force: 9.5KN

12.Advantage: easy installation by spiral piling machine without digging and concrete,much convenient, cost effective, time-saving and environmentally friendly than concrete foundations. could be quickly and easily erected and removed without any waste

B. Advantages of WBQ Solar Ground Screws Anchor:

1.The WBQ Ground Screw System sets new standards for safe, fast, and affordable construction projects.

2.The WBQ Ground Screw is extremely environmental.

3.The WBQ Ground Screws are installed in a matter of minutes with no digging and no concrete.

4.The WBQ Ground Screws are statically tested and have been approved by LGA in Germany.

5. The WBQ Ground Screw  have own engineering team which can read the drawings from the clients or make drawings according to requirements.

C. Applications of WBQ solar ground screws anchor:
