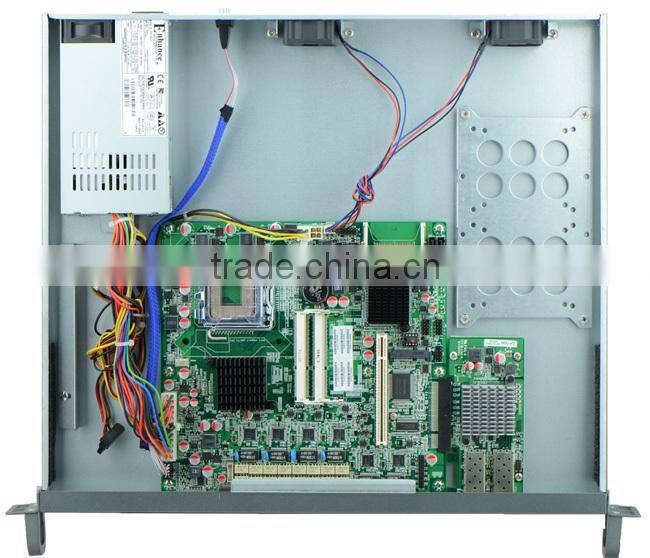

2015 Hot Selling 1MINI PCIE+3SATA+CF+IDE Professional Firewall Appliance

Name: 2015 Hot Selling 1*MINI PCIE+3*SATA+CF+IDE Professional Firewall Appliance
Brand: INCTEL
SKU: 117842365
Availability: InStock

US$ 1 - 488 MOQ: 2 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

INCTEL

Model Number:

IN-RG8

Shenzhen Inctel Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name INCTEL

Model Number IN-RG8

2015 Hot Selling 1*MINI PCIE+3*SATA+CF+IDE Professional Firewall Appliance

Type	IPC standard 1U chassis. 430MM * 280MM * 46MM
Nics	Intel PCI-E 1000M 6 * 82574L + 2 * 82580DB gigabit fiber ports (two groups Bypass, scalable 2 Gigabit Gigabit 82599ES 82580DB or optical)
Processor	LGA 771 series processor with Intel G41 + ICH7R Express Chipset
Motherboard	Green Network Security Industrial Motherboard silent version with turbo fan
Features	Multi-network 8 Gigabit firewall ROS Router
Power Supply	1U FSP FSP180-50PLA 180W / ATX industrial power, to have a stable 365 days without failure
Chassis	1U, 43284.6/ 6.5KGS
OEM	LOGO can be customized easily, LOGO neutral easy for twice sales
Expansion	1MINI PCIE+3SATA+CF+IDE

Model	IN-RG8
Processor	LGA 771 series processor with Intel G41 + ICH7R Express Chipset
	Intel Xeon XEON / 771 L5420 quad-core 2.5G processor add $35
Memory	Support 204 Pins DDR3 low-power low heat, Max. 16G RAM
Motherboard	Green Network Security Industrial Motherboard silent version with turbo fan
NIC	Intel PCI-E 1000M 6 * 82574L + 2 * 82580DB gigabit fiber ports (two groups Bypass, scalable 2 Gigabit Gigabit 82599ES 82580DB or optical)
WiFi Optional	Can add 1 Antenna WiFi
Heat sink	1U copper 775 turbofan
Storage	Industrial grade SSD/CF card
Chassis	IPC standard 1U chassis. 430MM * 280MM * 46MM
Chassis Dimensions	1U, 43284.6/ 6.5KGS
I/O	DC+Console+USB2+Lan8+VGA
Package	1U Router, Rack Ears, HDD Bracket, With Power Cord
Software	Our firewall appliance can install routing software like Radius_Manager, RouterOS, ROS, Panabit, PFSense, monowall, PFS, OPENWRT, Yunbs, XiaoCao, Wayos, Netzone, Bytevalue, Bithighway, Hi-Spider, iKuai etc
