7.4v 5200mah rechargeable pack for heated apparel lithium ion battery pack for heated clothes battery
Product spec:
Nominal Voltage |
7.4v |
Working Voltage |
6V-8.4V |
Nominal Capacity |
5200mAh |
Charge Cut-off Voltage |
8.4v |
Charge Current |
200mA—1200mA |
Standby Current |
≤100μA |
Max. Output Power |
20W MAX |
Operating Efficiency |
≥99% |
Loading Resistance |
5Ω-200Ω |
Charge Method |
CC/CV Constant Current/Constant |
Charge Temperature |
0°C—40°C |
Discharge Temperature |
-20°C~ +60°C |
Charge Duration |
4-5hrs(Standard) |
Cycle Life Time |
Above 500 cycles |
Internal Impedance |
PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ |
LED Display |
4-heat settings, capacity indication |
Output Terminal |
DC3.5*1.35*7mm |
Usage |
Heated jackets, heated seat cushions, etc. |
Battery Size |
92*72*23mm |
Weight |
210g |
Color |
White, black, red, pink, blue, brown, etc. |
Certificates |
CE, FCC, ROHS |
Features:
1.Low self power consumption.
2.High performance and security.
3.Enviroment friendly.
4. Smart Power Management
5. LED Display the capacity of our battery
6. Four adjustable pulse outputs
7. Protection circuit inside
8. Different colors are optional
9. Our products meet CE, FCC, ROHS standard .
10. One Year Warrant
Charging Instruction:
Remove batteries and charger from packaging.
Plug the charger into a properly rated AC electrical outlet.
Connect the batteries to the output plugs from the charger to commence charging.
The LED lights on the charger will show "red"when charging.
Batteries will be fully charged when the LEDindicator on the charger turns green.Fully discharged batteries will take 5 hours to charge completely.
Disconnect batteries from charger output plugs.
Locate the "power" button to activate and select desired power level.
When finished,press the power button to turn off,unplug the batteries and recharge for next use.

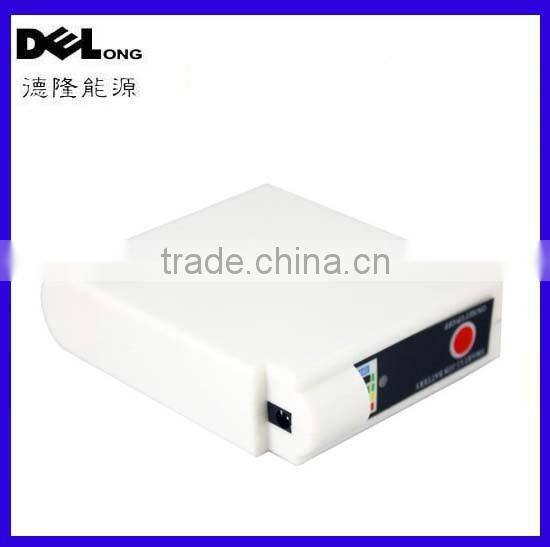

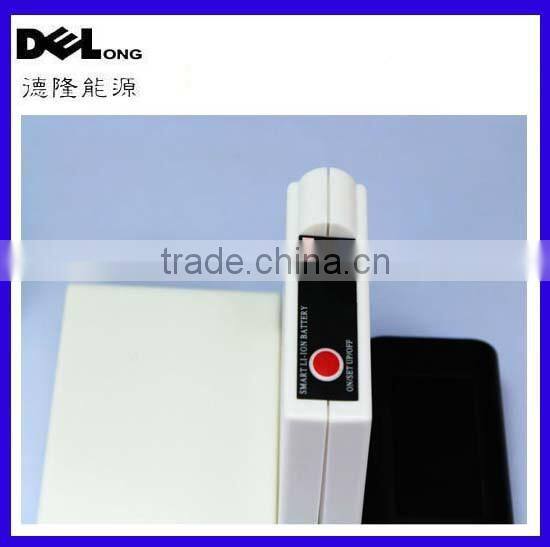

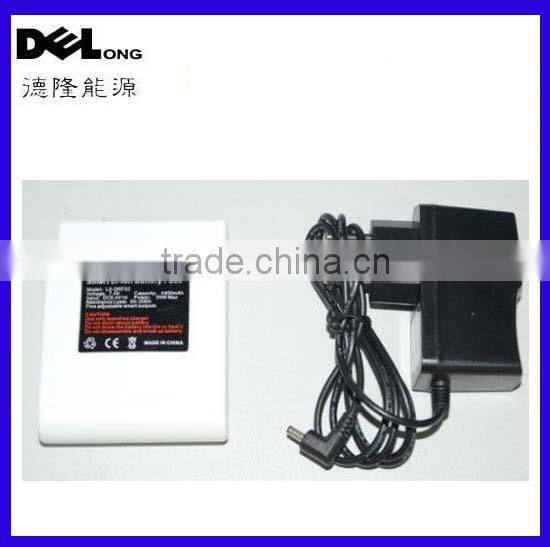

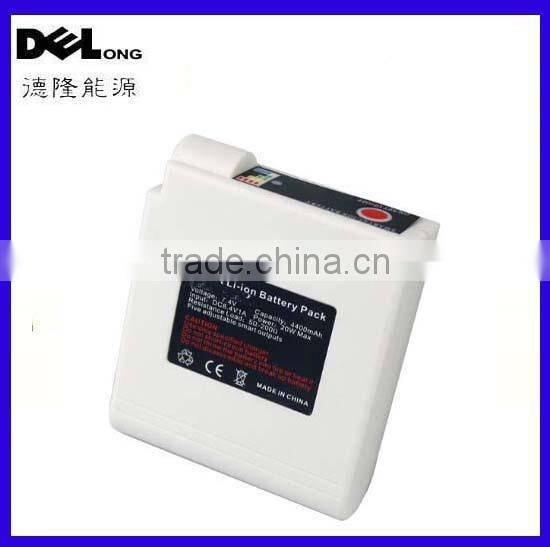

Product picture:
Payment & shippment:
Why choose us:
1. Our battery are used A grade cell, with CE, ROHS,UL certification.
2. We have own professional design team to customize any type lithium battery power according to your requirement.
3. Shipping to your detail address(Door-to-Door).
4. Factory price- you can get the lowest price from us.
5. Accepte OEM & ODM.
6.High quality contral: one by one test before shippment.
7. The fast reply after you ask for inquire.
Certification:
