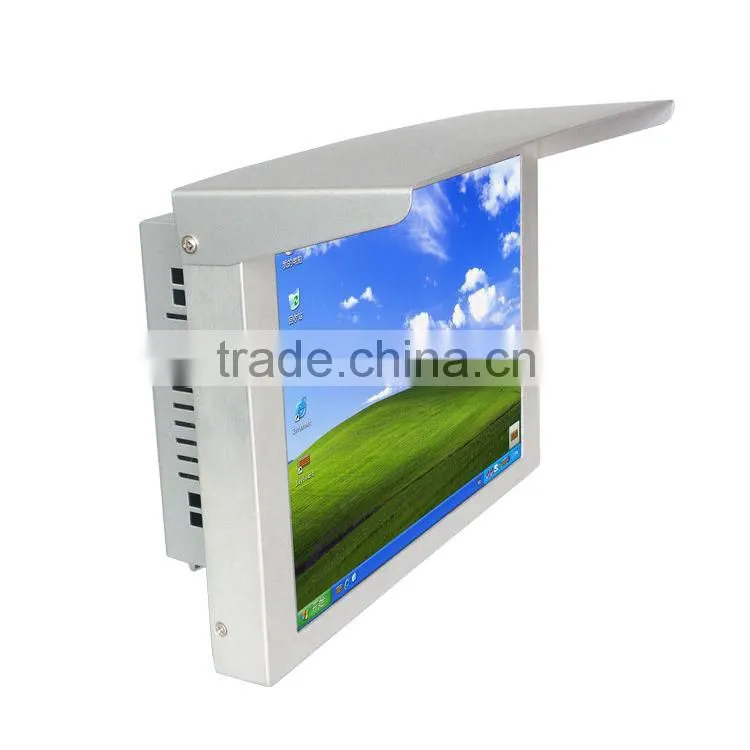

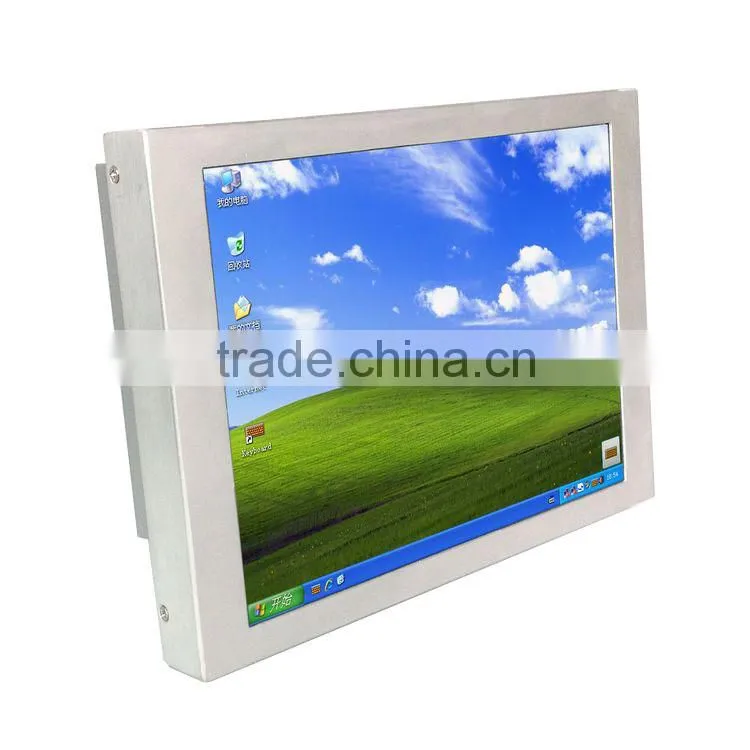

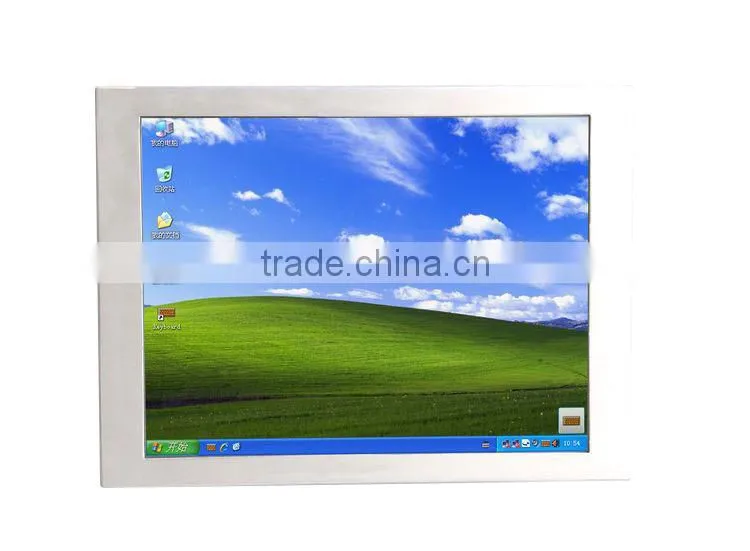

China Manufacturer Support 1*Mini PCIE Msata SSD Led Touch Screen AIO
Model |
IN-0D52 |
Size |
10-inch LED display industry |
|
Taiwan AbonTouch (Gtouch) temperature 5 wire touch screen |
Processor |
Intel Atom D2550 Dual Core 1.86G |
Memory |
Support 204 Pins DDR3 low-power low heat, Max. 4G RAM |
Hard Disk |
Support 1*Mini PCIE Msata SSD (SSD Max.512G) |
GPU |
Integrated Intel GMA 3600 graphics core |
WiFi Optional |
Wireless-(150Mbps or 300Mbps optional) |
Package |
AIO+Power Supply+Power Cord (USA, European, UK Types for optional)+Stand |
Feature:
|
Industrial touchscreen all in one pc with 10 inch LED Gtouch AbonTouch high temperature 5 wire resistive touch screen Driving Test System IP61 standard |
|
Specification |
|
The new 10-inch machine |
4: 3,800 * 600 resolution |
LED backlight, brightness 420 lumens |
D2550 dual-core motherboard |
Taiwan AbonTouch (Gtouch) temperature 5 wire touch screen |
Built-in 2W Speakers |
Add two COM, one can tune into RS485 |
4 USB |
2 INTEL dual 1000M wired LAN |
With Sunshield |
|
Display characteristics Size: 10-inch LED display industry |
Resolution: 800 × 600 |
Brightness: 430cd / m2 |
Contrast: 500: 1 |
Response time: 5ms |
Machine size: 245 mm (length) × 182 mm (W) × 54.7 mm (H) |
Hole size: 220 mm (length) × 135 mm (W) |
Material: sheet metal / aluminum panel |
Weight: NW 3KG, with packaging 3.5KG |
Color: Silver |
Touch feature Brand: Abontouch (or Gtouch) |
Touch screen: Taiwan high temperature five-wire resistive touch screen |
Click to life:> 35 million times |
Performance Configuration C P U: ATOM D2550 dual-core 1.86G |
Memory: 2GB DDR3 notebook memory (optional 4GB) |
Hard disk: 16GB SSD high stability |
Optional 32GB / 64GB / 128GB SSD) |
Display card: INTEL GMA3600 |
Support system Windows XP, Windows 7, LINUX |
I / O interface U S B: 4 x USB 2.0 |
Serial: two RS232 interfaces (one adjustable for RS485 / RS422) |
Ethernet ports: 2 INTEL dual 1000M wired LAN |
Audio: Built-in 2W speaker |
Display: VGA * 1, HDMI * 1 |
Environmental testing IP Protection: IP61 default |
Working temperature: -10 degree ~ 60 degree surface air flow |
Storage temperature: -20 degree ~ 70 degree |
Humidity: 95% at 40 degree without condensation |
