Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > Import Solar Panels From China
US$ 0.32 - 0.48 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Model Number:
CT-HS255P-60
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port or Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name OEM
Model Number CT-HS255P-60
Material Polycrystalline Silicon
Size 1650*990*40mm
Number of Cells 60
Max. Power 255
Product Description

Hot sale cheap price 255 solar panels imported from  china

PRODUCT DESCRIPTION_________________________________________

Import solar panels from China

1.Electrical Data
Rated Max. Power(Pmax)                      255W
Optimum Power Voltage(Vmp)30.8V
Optimum Operating Current(Imp)8.28A
Open Circuit Voltage(Voc)38V
Short Circuit Current(Isc)8.92A
Cell Efficiency (%)≥14.5%
Module Efficiency (%)≥14%
Tolerance Wattage±5%
NOCT47℃±2℃
Max. System Voltage1000V

2.Temperature Coefficients

Temperature coefficients of Voc(%)℃                             -0.36
Temperature coefficients of Isc(%)℃+0.05
Temperature coefficients of Pm(%)℃-0.45
Temperature coefficients of Vmp(%)℃-0.36
Temperature coefficients of Imp(%)℃+0.05

3.Components & Mechanical Data

Solar Cell

156*156mm
Number of Cell60PCS
Size of Module

1650*990*40mm

Front glass thickness3.2mm
Surface Maximum Load Capacity2400-5400Pa
Allowable Hail Load23m/s,7.53g
Weight Per Piece(KG)15.5kg
Junction Box Type Ip65 Rated/ Pass the TUV certificate
Bypass Diode Rating(A)12
Cable & Connector TypeTUV
Frame(Material Corners,etc.)anodized aluminium alloy ,45#angle
Backing (Brand Type) TPT
Temperature Range-40℃~90℃
FF (%)70%-76%
Brand OEM
Standard Test ConditionsAM1.5E=1000W/m2  Tc=25 °C
Module ApplicationClass B
Safety tested IEC61730/IEC61215

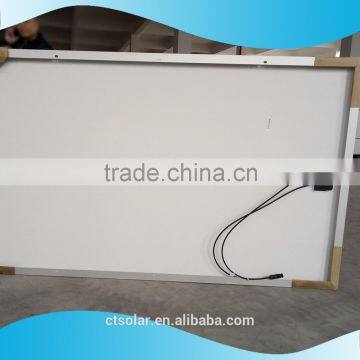

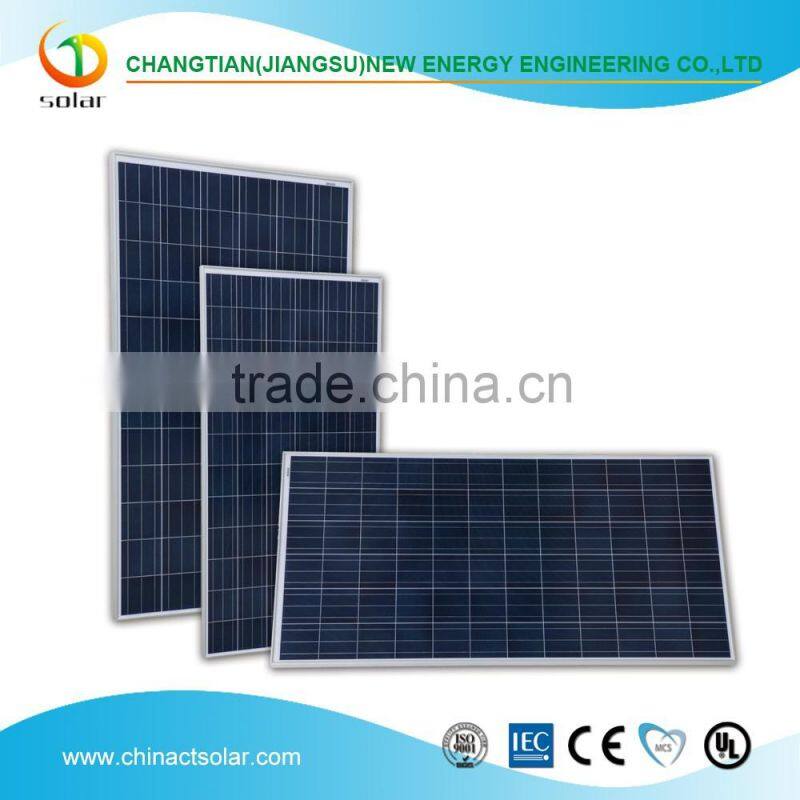

Product Appearance

DETAILED IMAGES            ___________________________________

There are stock for solar modules of Class A,Class B and Class C at our warehouse every month , so we can deliver the goods according to your time and quality request .

OEM is acceptable.

Import solar panels from China

Import solar panels from China

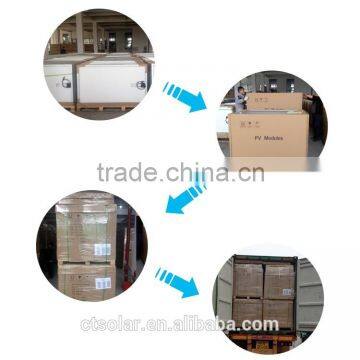

Packaging & Shipping

Packaging & shipping_________________________________________

Normally packaging is 26 pieces per bundle with carton , products can mark your label , the bottom use pallet to support them. The maximum quantity we can load 28 pallets and some two pieces packaging .

Import solar panels from China

Import solar panels from China

Company Information

COMPANY PROFILE            __________________________________

Changtian (Jiangsu) New Energy Engineering Co., Ltd (Referred to as" Changtian New Energy) was committed to photovoltaic industry since 2010,with a headquarter in HK, a Foreign trading office & Solar modules warehouse in Jiangsu Province, and a solar panel factory in Zhejiang .

Changtian is dedicated to the research, development, manufacture Poly-crystalline and mono-crystalline solar cells & modules, cell efficiency from 17.8% to 20.0% and modules wattage from 255w to 330w. In the year of 2014,we are passed & authorized to build power generation plant system  .

Our foreign trade office was founded in 2014, with sales staff more than 30 people ,engineer 10 people .We are a knowledgeable, professional and young sales team.

Modules factory was established in 2010 ,covers 30,000 square meters, who has reached a capacity of 800MW/year ,and supposing to 900MW/Year in 2016. Modern production equipment, the realization of computer control,to ensure the quality of the product qualification rate reached 99.99%.

Production Overviews

PRODUCT LINE OVERVIEW  ________________________________

We have our own five production lines and many good co-operated suppliers ,which can make us supply you a high quality and fast delivery goods . Many different models of solar panels could be choosed from us .

Import solar panels from China

Our Services

OUR SERVICE                  ____________________________________

WARRANTIES

Our Limited Warranty for Solar modules guarantees materials and workmanship for 10 years and power for 25 years.

1. 10 years limited product warranty

2. 15 years at 85% of the minimal rated power output

3. 25 years at 80% of the minimal rated power output

SAMPLES

We can supply one piece of sample for your test first .

TEAM

Our foreign trade office was founded in 2014, with sales staff more than 30 people ,engineer 10 people .We are a knowledgeable, professional and young sales team.

TRADE ASSURANCE

Import solar panels from China

CERTIFICATES

Import solar panels from China

FAQ

Import solar panels from China          FAQ               _______________________________________

1. Q : Are you Manufacturer or trading company ?

    A: We are both manufacturer and trading company .

2. Q : How about the quality ?

    A : There are solar modules with quality of Class A ,B and C ,we own our                                             brand or other brands like JINKO ,YINGLI,TIANWEI,SOLAR-KEY,

           CPI ,HANWHA,JA-SOLAR etc.

3. Q : What about your price ?

    A :  Our price is according to the quality of the solar panels which you need . We have                     bottom  price with quality of class C ,middle price with quality of class B and high   price for class A.

4. Q : Can the price be cheaper ?

    A :  Sure , we have different grades products with matched price , and if your quantity is                 bigger , we can offer you a big discount .

5. Q : When can you deliver the goods once we placed a order ?

     A : ASAP. Normally in 8-15days .

6. Q : How many payment way we can choose ?

    A : For new customer , we accept TT,L/C,CASH ,for long partner , we accept D/A ,D/P.
