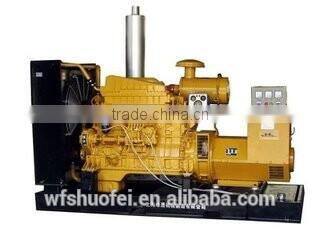

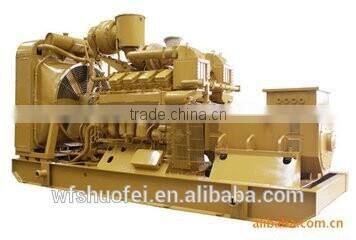

diesel generator 150kw set
| DETAILED PARAMETERS | ||
| Generator | Genset Model | LX-150KW |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8lagging | |
| Rated Voltage(V) | 400/230 | |
| Rated Power (KW/KVA) | 150/188 | |
| Rated Current(A) | 270.6 | |
| Phase/Wire | 3Ph, 4Wr | |
| Weight (kg) | 1600 | |
| Diesel Engine | Model | 6113ZLD |
| Type | Water-cooled, inline, 4-stroke, direct injection,1500 rpm | |
| Rated Power (kw) | 150 | |
| Intake Type | Turbocharge and middle cooled | |
| No. of Cylinder | 6.L | |
| Bore×Stroke (mm) | 113X135 | |
| Compression Ratio | 17:1 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤96 | |
| Exhaust Temperature (℃) | ≤600 | |
| Starting Model | DC24V electric starter | |
| Specific fuel consumption(g/KW.h) | ≤254 | |
| Exhaust back pressure (kpa) | 3 | |
| Alternator | Model | SLX-150 |
| Rated Power (KW/KVA) | 150/188 | |
| Type | Three-phase synchronous | |
| Adjustable voltage amplitude | ±5% | |
| Speed ragulation mode | Auto or Manual | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
1). Manufacturer or Trading Company
Our factory is a generator manufacturer for 11 years, and specializing in the production of diesel generators from 15KW to 1000KW
2). MOQ.
1set
3). Spare Parts
a. Free spare parts with the order shipped
b. Within 10 working days after payment send by express.
4). Shipment
We can help customer to arrange shipment.
5). Delivery Time
One container 20~30days
6). Payment Terms
30% deposit T/T, 70% T/T before shipment or L/C at sight
7). Generator Options
Diesel Generators : 15kw to 1000kw
8). Generator Logo
a. We have our own logo LX
b. We can make customers own logo in the generator for free.
9). Package and Loading qty
a. Nude Package or Wooden Package
b. Loading qty : as the container's size
