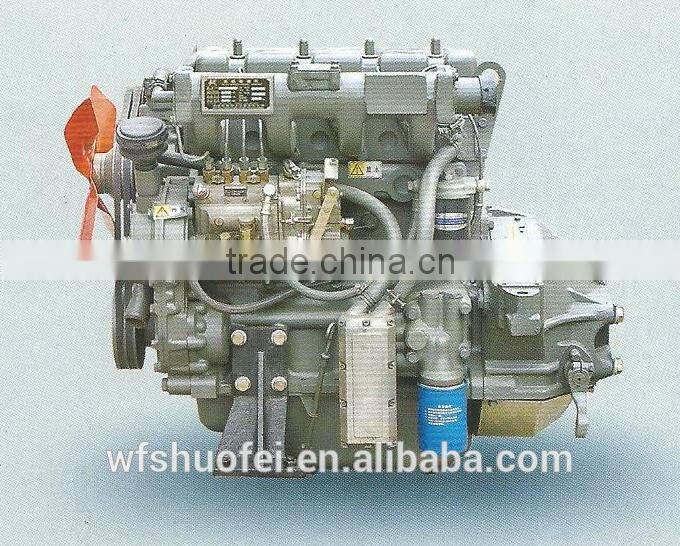

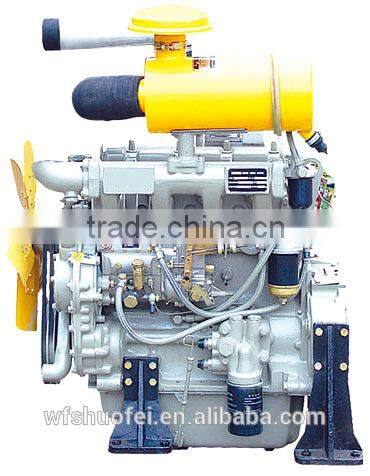

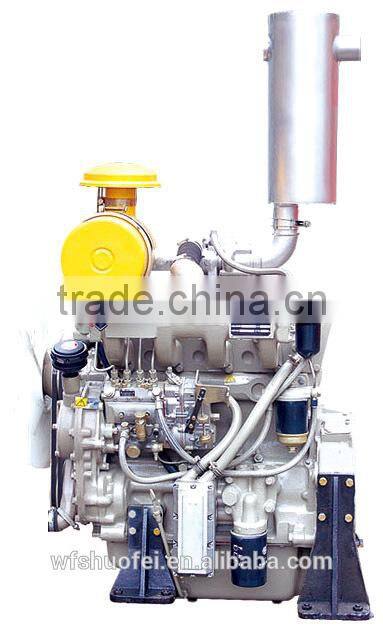

4105series R4105zd 4 Cylinder Engine

US$ 1,610 - 2,070 MOQ: 1 Set

Key Specifications

Condition:

New

Usage:

Other, genest, Genset

Fuel:

Other, Diesel, Diesel

Weifang Shuo-Fei Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, genest, Genset

Fuel Other, Diesel, Diesel

Stroke 4 Stroke

Cylinder Multi-cylinder

Cold Style Other, Water-cooled

Start Electric Start

Place of Origin Shandong, China

Brand Name LX

Model Number R4105ZD

Dimension(L*W*H) 950X650X1200

Weight 430kg

Certification ISO9001:2008

Warranty 1 year or 1500 running hours

After-sales Service Provided No overseas service provided

Specifications

4 cylinder engine
1. Factory direct price
2. 4cylinder 4storke
3. Water cooled
4. Fuel: Diesel

Product Description

Engine model	4105ZP	4105ZG28	4105D	4105D1	4105ZD	4105ZD1
Type	4-stroke,inline, water-cooled, driect injection
Cylinder no.	4.L
*Borestroke (mm)**	105*125
Total emission of piston(L)	4.33
Compression Ratio	16:1		17:1		16:1
Cylinder firing order	1-3-4-2
Intake type	Turbocharged		Natural aspirated		Turbocharged
Rated power kw/(r/min)	60/2000	68/2200	42/1500	46/1800	56/1500	67/1800
High idling speed(r/min)	≤2160	≤ 2950	≤ 1575	≤ 1890	≤ 1575	≤ 1890
Low idling speed(r/min)	≤ 600
Brake mean effective pressure (kPa)	832	856	776	708	1034	1032
Specific fuel consumption(g/KW.h)	≤ 231	≤ 239	≤ 231		≤ 239
Specific oil consumption(g/KW.h)	≤ 1.63
Exhaust Temperature (℃)	≤ 600
Crankshaft steering	Counterclockwise(From the power output end at)
Cooling method	Inforced Water Cooled
Lubrication method	Pressure and splash composite
Starting method	Electric
Net weight(kg)	460	550	420		435
Usage	fixed operation	Air compressor	Genset
