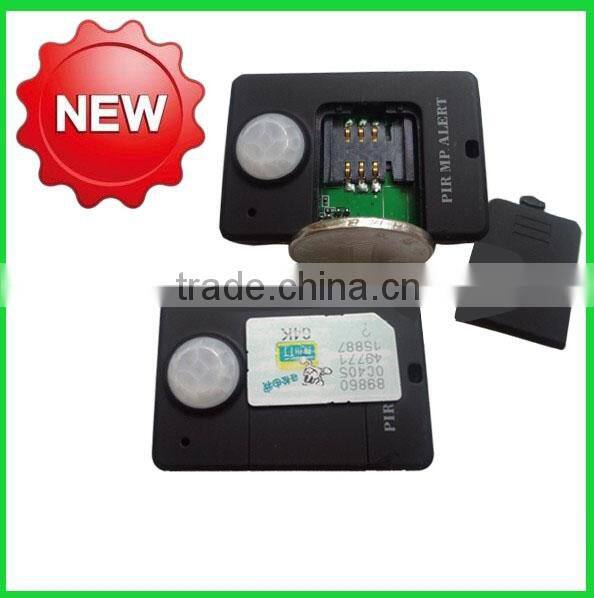

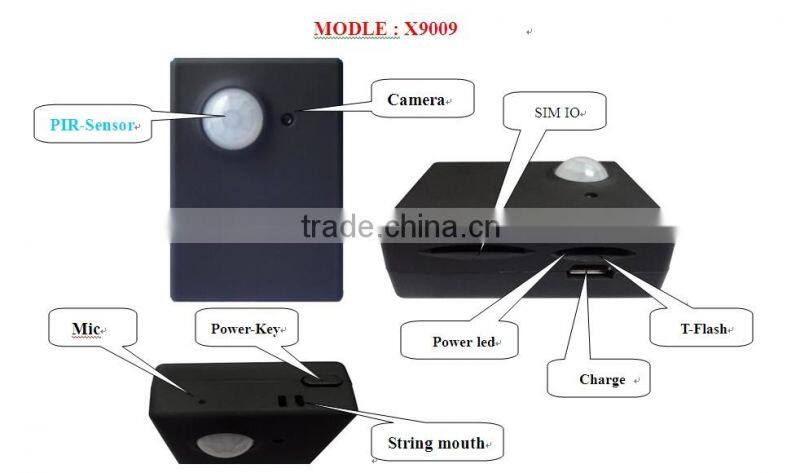

X9009-DV
--- Leading MINI Infrared Camera—MMS & CALL Togather Alarm.
This product supports GSM850/900/1800/1900 network and GPRS, and can switch seamlessly among different networks. Compact, strong signal, loudy sound, precise positioning, clear picture, founctional stability, long standby time and globle access, all these features are its greatest advantages.
Applicable in: China, UK, France, Germany, USA, Netherlands, Italy, Spain, Portugal, Brazil, Denmark, India,Russia, Poland, Turkey, Hungary, Thailand, Greece, Indonesia, Malaysia, Vietnam, Iraq, Saudi Arabia and so on.
(B) Technical parameters
Model |
X9009 |
|
Size |
L 48mm * W 35mm * H 15mm |
|
Camera |
Sensor type |
CMOS |
Pixel |
1.3 million |
|
Expansion card |
Micro T-Flash card |
|
Battery |
Polymer(450mAh) |
|
Standby time |
Using:3-5 days |
|
Standby :12-15 days | ||
Human Body Induction scope |
10 meters |
|
Monitoring scope |
100 square meters |
|
(C) function operational specification
Power on / off
start: warning:
i). First, apply for GPRS for a new SIM, otherwise, it is unable to use photograph and MMS normally;
ii). Apply for Caller ID to SIM, otherwise, it is unable to use normally, as failure in identification of main control number, shoot and MMS,
1. After push the sim-card , Press the powder-key for 3-5 seconds. Flashing indicator light means that the machine is on. when the light is off, calling function is available .
2. Pressing the SIM card out turns off the machine.
Number Bind-Check-Del:
1)By edit SMS: "SZ#phone-nums#" to the machine, after that will return back "XXXXXX binded ok".
2)Edit SMS"GET"to the machine which can check and return back:" bind num:XXXXXXXXX".
3)Sending SMS:"DEL"to SIM number, can delete the bind number, system SMS return: "bind number is null".
4)The number is using for return back MMS, phone, SMS etc..
MMS & CALLAlarm
The machine has the active trigger Probe function with below situation:
1) the distance with in 0-6 meters with 120angle
2) when reaction the human or heat objects to be moved, it will take high quality picture and sent out to the specify phone number with a call.
Remote-control setting:
1) Send "0000" to the SIM card number after a successful turn off this feature, return sms: "The PIR-Alarm opened"
2) Send "1111"is open induction.,return the sms of "The PIR-Alarm closed "
3) Send"COFF "to the SIM card number,and closed the call alarm, receive the sms : " Call Alarm closed "
4) Send " CON" to the product and open the call alarm, receive the sms : "Call Alarm opened "
Camera fuction
Editing text "MMS" to this product, it will take a photo automatically and this photo will be kept in the this machine, which saves the T card costs for users. After 15-25 seconds , a MMS will be received. ( the card shoule be with GPRS and MMS founction)
LBS-AGPS Postion Support(The World can be used)
Send the sms of content " W " to the sim numbers and after return a http link and open it can show the following:
Video recording
A: Editing text "VDO" to this product (T card needed)
B: Long press the POWER_KEY can be videoed and the led can flash 2-3 seconds;
Video recording termination
A: Editing text "VOV" to this product (T card needed)
Message prompted : video stop,saved
B: Long Press the POWER_KEY can stop video record,the Led flight for one second;
Message prompted : video begin
Sound recording
Editing text "SDO" to this product (T card needed)
Message prompted : sound begin
Sound recording termination
Editing text "SOV" to this product (T card needed)
Message prompted : sound stop,saved
Restart Remote Control
When there is difficulty of receiving MMS, try to restart the machine to return to factory setting. Then MMS can be sent.
Editing text “RET”, the machine will restart after 3 seconds.
Auto answer : This product has the function of automatic answer
Short Press the power-key and the led flash once to illuminate the machine be idle
Powder prompted
This product will send a message to the user automatically to remind its under low-battery.
Return : " Low battery,PIR will close"
(D) Announcements
* When connected the computer by usb cable, the MMS (MultimediaMessagingService) function can not used ,
when quit the usb state and restart it by pull out the sim and pull into it,
* Before use the MMS function, At First make the SIM can connect to the gprs .
* SIM should be inserted before charging
* If the battery is used up, it takes three minutes to start charging after connected to charger.
* Please fully charge the battery before first use for best effect. Please use the original charging line.
* Charger standard:± 5.0V 300-500MA
* Light out meaning battery dead, pls charge first
* If it fails to get through calls, reinsert SIM card and boot or try again after charging
* If automatic answer fails, please reinsert SIM card and boot
* Controller has to be made to order if needed
* Quality warranty void if any sea or label is removed
* Any illegal use of this product shall be subject to legal liabilities
Operation instructions:
1> Binding number SZ # phone NO. #
2> Sending MMS for taking picture.
3> Video ON/ OFF VDO/ VOV
4> Record ON/ OFF SDO / SOV
5> Location / Restart W / RET
6> Check NO. / Delete NO. GET / DEL
7> OFF / Open induction function. 0000 / 1111
8> OFF/ Open phone call COFF / CON
