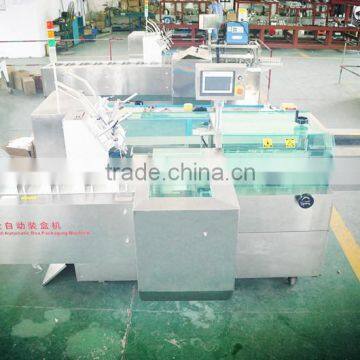

This chocolate bar into carton box packing machine is a designed for automatic packing chocolate bar into carton box . It has such advantages as small size, light weight, high efficiency, multifunctions, etc., Its speed is 40-60packs /min.
Alternatively ,this kind of cartoning machine can be widely used for for packing biscuit, milk powder, detergent powder, bottle, medicine, toothpaste, cosmetic, ointment, etc.
Main Features :
1. PLC control , English and man-machine interface, operating easy and simple maintenance;
2. Automatically carton box feeding, box opening , filling, ends sealing by inserting ;
3. Easy and fast adjustment of change over, No mould-change needed when changing
speficication; PLC automatically shows packing speed and quantity of finished products.
4. Smooth performance and low noise, perfect package appearance, sensible safety device and no pollution during production to
get friendly working environment.
5. Can be connected with aluminum-plastic packing machine, pillow packing machine, bottle packing machine, filling machine,
coding printer, ribbon printer, weighing machine, etc.
7. Both ends seals in different options ( upon enduser requirement ):
--Both ends can be sealed by inserting;
--Both ends can be sealed by glueing ;
--Bottom glueing and the other inserting ;
--bottom plug in and the other inserting
Main Technical Data:
| Model No. | SGO-100 |
| Box Packing range L x W x H | 80x40x20mm (min.), 220 x 170 x 70mm (max.) |
| Carton paper required | 300-350g/m2 |
| Packing capacity | 40 -60packs/min'; |
| Power | 1.5Kw, 220v /50Hz; |
| Air comsuption | 0.4- 0.8MPA |
| Machine dimension | 3250 x 1600 x 1600 mm |
| Weight | 1200kg |
