Help CenterYT-720 Auto Wing Rotary Silk Screen Printing Machine
Related Products
-
YT-1020 Auto Ceramic Plate Decal Printing MachinesNegotiableMOQ: 1 Set -
YT-780 Wing Auto Spot uv Silk Screen PrintingNegotiableMOQ: 1 Set
-
YT-780 Bowl Decal Automatic Screen Printing MachineNegotiableMOQ: 1 Set
-
YT-720 Wing Automatic Scratch Silk Screen PrintingNegotiableMOQ: 1 Set
-
YT-780 Automatic Bowl Decal Silk Screen PrintingNegotiableMOQ: 1 Set
Specifications
1. screen printing and other printing, part UV glazing of presswork is available2.easy to operate

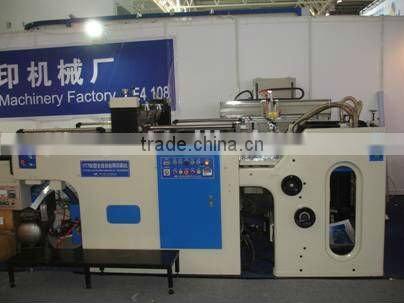

YT-720 auto wing rotary silk screen printing machine
Model |
YT-720 |
YT-780 |
YT-1020 |
Max.paper size (mm) |
720*520 |
780×540 |
1020*740 |
Min. paper size (mm) |
350*270 |
350×270 |
560*350 |
Max. printing size (mm) |
720*500 |
780×520 |
1020*720 |
Thickness of paper (g/m2) |
90-400 |
90-400 |
90-400 |
Frame size (mm) |
880*880 |
940×940 |
1280*1140 |
Max.print speed (p/h) |
3400 |
34000 |
3300 |
Total power (KW) |
8.2 |
9 |
11 |
Weight (KG) |
3500 |
4000 |
5500 |
Dimensions (L*W*H)mm |
3700*1900*1270 |
3760×1960×1270 |
4800*2800*1600 |
Price (FOBShenzhen) |
|
|
|
|
|
|
|
The printing scope of Type YT- Automatic Cylinder Screen Printing Machine is wide. Under the condition of combination printing of offset printing, screen printing and other printing, part UV glazing of presswork is available; simultaneously, the machine is available for the single-color and multi-color overprinting by paper with size of 120-250g/square meter (gold/silver paperboard, transfer paper and white board paper, etc.), plastic film (polyethylene, polyester and polypropylene) pressure-sensitive adhesive single sheet materials.
*The control system of the machine is supervised and controlled by Japan Mitsubishi transducer and Japan Mitsubishi PLC programmable controller; easy to operate; precision of overprinting is less than 0.15mm.
*The internal electrical components and main mechanical drive adopt imported components; low working noise; stable running.
*Full-automatic sequent paper transfer device; can switchover freely according to the thickness of printed products; 90°turning paper collection table makes screen plate easily be cleaned, assembled and unassembled; it is equipped with screen plate micromatic setting device.
*The external packing of the machine adopts anti-dissolvent and spraying plastic (not the common paint), which is convenient to maintaining the external surface of machine.
*YT series of printing machine can be combined with the series of drying machine to operate. e.g.
It can be combined with our UV series of infrared photofixation machines; available for UV type screen printing ink.
It can be combined with our horizontal-transfer UV and infrared drying machines; available for dissolvent type/UV type screen printing ink.
It can be combined with our flat sheet drying tunnel and paper clip drying tunnel; available for dissolvent type screen printing ink.
