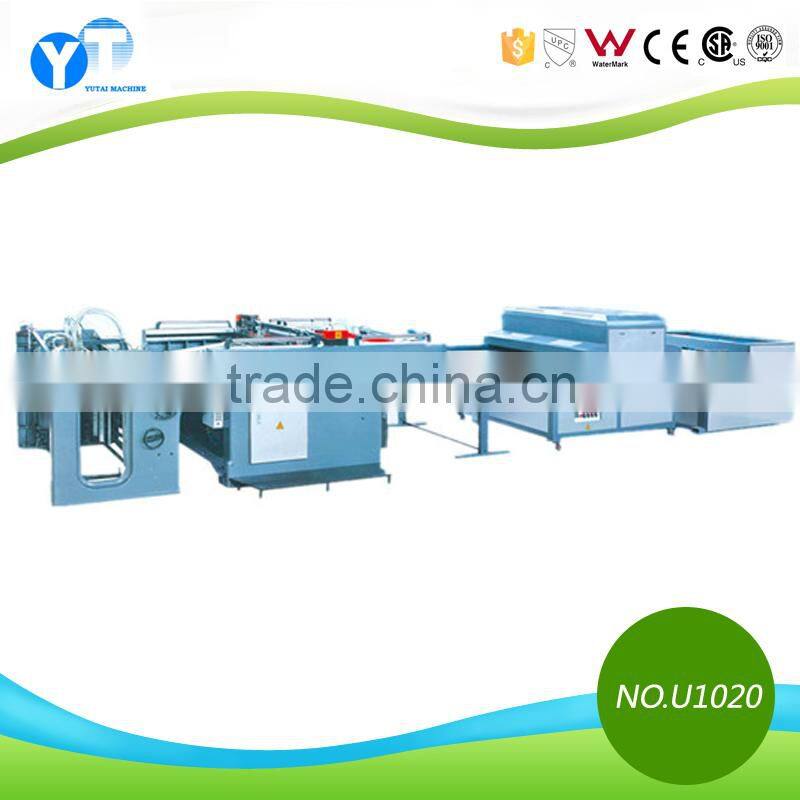

YT-U1020 High Quality UV Printing Machine for Cermaic Decal
US$ 2 - 5
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
YUTAI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YT-S6070 Manual Screen Printing Table 6070US$ 1 - 2MOQ: 1 Set -
YT- S1215 Micro-computerized Vacuum Exposing MachineUS$ 1 - 3MOQ: 1 Set
-
YT-Y160 Energy Saving Three Roller Mill Machine Quality ChoiceUS$ 3 - 4MOQ: 1 Set
-
YT-720 Auto Single Color Printing Machine PriceNegotiableMOQ: 1 Set
-
YT-780 Full Auto T-shirt Screen Print MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
YUTAI
Model Number
YT-U1020
Usage
Bill Printer, Card Printer, Cloths Printer, Paper Printer, Tube Printer
Automatic Grade
Automatic
Voltage
380V
Gross Power
8.2KW
Dimensions(L*W*H)
5300*2720*1430mm
Weight
5500kg
Certification
ISO9001:2000
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
YT-U1020 High quality UV Printing Machine for Cermaic Decal
|
Name |
YT-U1020 High quality UV Printing Machine for Cermaic Decal |
|||
|
Characteristic |
1. The control system of the machine is supervised and controlled by japan mitsubishi transducer and japan mitsubishi PLC programmable controller; easy to operate; precision of over printing is less than 0.15mm. 2.The internal electrical components and main mechanical drive adopt imported components;low working noise;stable running. 3.Full-automatic sequent paper transfer device; can switchover freely according to the thickness of printed products;90° turning paper collection table makes screen plate easily be combined with the series of drying machine to operate. e.g. 4.YT series of printing machine can be combined with the series of drying machine to operate. e.g. It can be combined with our UV series of infrared photofixation machines;available for UV type screen printing ink. It can be combined with our horizontal-transfer UV and infrared drying machines; available for dissolvent type/UV type screen printing ink. It can be combined with our flat sheet drying tunnel and paper clip drying tunnel; available for dissolvent type screen printing ink. |
|||
|
Function description |
The printing scope of Type YT-Automatic Cylinder Screen Printing Machine is wide. Under the condition of combination printing of offset printing,svreen printing and other printing, part UV glazing of presswork is available; simultaneously,the machine is avail-able for the single-color and multi-color overprinting by paper with size of 120-250g/square meter(gold/silver paperboard,transferpaper and white board paper, etc.),plastic film(polyethylene, polyester and polypropylene) pressure-sensitive adhesive single sheet materials. | |||
|
Main parameter |
Model | YT-U720 | YT-U780 | YT-U1020 |
| max paper dimension | 720*520mm | 780*540mm | 1020*720mm | |
| min paper dimension | 350*270mm | 350*270mm | 560*350mm | |
| max printing dimension | 720*500mm | 780*520mm | 1020*700mm | |
| paper thickness | 80-350g/ m2 | 80-350g/m2 | 80-350g/m2 | |
| printing frame dimension | 880*880mm | 940*940mm | 1280*1140mm | |
| max printing speed | 1000-3600s/h | 1000-3300s/h | 1000-2500s/h | |
| weight | 3500kg | 3800kg | 5500kg | |
| power | 7.3kw | 7.8kw | 8.2kw | |
| Voltage | 380V | 380V | 380V | |
| overall dimensions | 4700*1960*1270mm | 4900*2080*1270mm | 5300*2720*1430mm | |
| Note | Same model have YT-U720,YT-U780 | |||
Main products
All kinds of porcelain daily use tableware, including porcelain dinnerware set, plate, bowl,cup and saucer,sugar pot,spoon,vase and so on.
Welcome to provide us sample picture or sample to customize.
Products advantage
We committed to new products’ research and development, only choose good suppliers to cooperate, selecting high quality products, product-variety marketing, can meet your market demand.
Quality guarantee
We have our own professional QC team, strict quality control, attention to product details. Customers’satisfaction is our greatest pursuit.
Not only business between you & us, but also friend making.
Good luck and Happy bidding!
