US$ 1 - 20,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Marine
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Hainan Pengsheng Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Diesel Engine for Marine Use with Gearbox R6160
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Marine
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Shandong, China
Brand Name Diesel Engine,water-cooled Diesel Engine
Model Number Diesel Engine,water-cooled Diesel Engine
Dimension(L*W*H) 2435*967*1579
Weight 3400kg
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

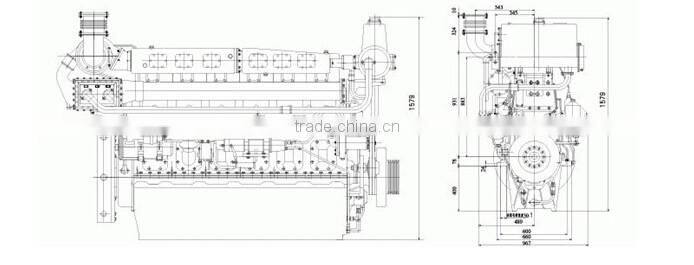

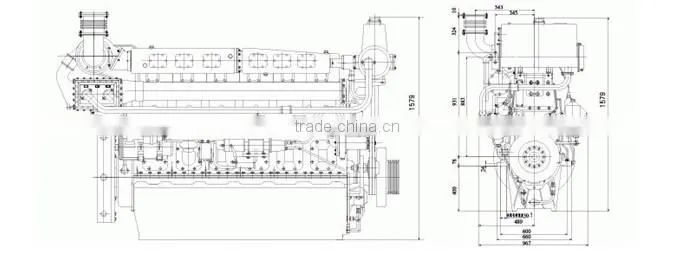

1.Drawing of our  Diesel Engine for Marine Use with Gearbox R6160



250hp marine engine,marine diesel engine with gearbox

2.Detailed info. of our  Diesel Engine for Marine Use with Gearbox R6160




The speed of R6160 series is 1000r/mine with a power range of 164kw(223hp)--330kw(448hp)
Gear boxes: Can be applied to the engine sets with the speed ratio from 2: 1 /2.5: 1/3: 1/3.5: 1/4: 1

R6160 seiries deisel engine is a new generation of 6160series which is developed by Weifang diesel engine factory in 203 to meet the requirement of market.

This product integrates the intemationally-advanced engine design conception with the 50-year-long engine manufacturing experience of Weichai, boasting wide power range, low consumption and excellent emission targets.


The design of the R6160 is based on the conception of better performance, lower consumption, convenient operation and people-oriented. The main alteration includes:


Optimizing and improving the fuel system, intake and exhaust system, cooling system, lubrication system on the basis of original 6160 series.

Adopting such advanced device as wet oil pan, eletrical pre-supply fuel pump, electric starting motor and sea-fresh water heat exchanger.

While iheriting strongpoint of the original 6160, the performance is improved and the fuel cosumption is lowered ( no more than 205g/kw. H).

The operation is simplified: There's no need to pump oil manually while atarting the engine.


This 6160 series diesel engine, designed out of brand new conception, has reached internationally advanced position.

3.Technical parameter



WEICHAI R6160 Series Marine Diesel Engine
Model   R6160A-2 R6160A-4 R6160A-6 R6160ZC R6160ZC4 R6160ZC2
Cylinder Num. - 6 6 6 6 6 6
Bore/Stroke mm 160/225 160/225 160/225 160/225 160/225 160/225
Displacement L 27.14 27.14 27.14 27.14 27.14 27.14
Rated Power kW 164 184 202 255 220 255
Rated Speed r/min 1000 1000 1000 1000 1000 1000
Starting method - Electric starting Electric starting Electric starting Electric starting Electric starting Electric starting
Overhaul Period h ≥12000 ≥12000 ≥12000 ≥12000 ≥12000 ≥12000
Net Weight kg 3350 3350 3400 3400 3400 3400
Dimension mm 2435×967×1579 2435×967×1579 2562×967×1579 2644×967×1579 2644×967×1579 2644×967×1579





WEICHAI R6160 Series Marine Diesel Engine
Model   R6160ZC270 R6160ZC280 R6160ZC325 R6160ZC380 R6160ZC408 R6160ZC450
Cylinder Num. - 6 6 6 6 6 6
Bore/Stroke mm 160/225 160/225 160/225 160/225 160/225 160/225
Displacement L 27.14 27.14 27.14 27.14 27.14 27.14
Rated Power kW 198 205 239 280 300 330
Rated Speed r/min 1000 1000 1000 1000 1000 1000
Starting method - Electric starting Electric starting Electric starting Electric starting Electric starting Electric starting
Overhaul Period h ≥12000 ≥12000 ≥12000 ≥12000 ≥12000 ≥12000
Net Weight kg 3400 3400 3400 3400 3400 3400
