Fire Alarm Bell Compatible With GST Control Panel
US$ 2.5 - 6.5
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ANZO
Model Number:
SA-B01
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Red Fire Alarm Sounder With StrobeUS$ 4.2 - 4.5MOQ: 500 Pieces -
Conventional Fire Manual Call Point Wit Resettable FunctionUS$ 4.5 - 6.5MOQ: 500 Pieces
-
Professional Manufacturer of Fire Alarm Strobe LightsUS$ 3 - 4.5MOQ: 1000 Pieces
-
Gas Leakage Detector(network) Network Combustible Gas Detector Sound&Flash Alarm Replay Output GD-706NUS$ 5.26 - 5.96MOQ: 500 Sets
-
Wired Heat Detector 2-wire Network Heat Detector or 4-wire Network Heat Detector HD-201HCUS$ 5.2 - 6MOQ: 500 Sets
Place of Origin
Zhejiang, China
Brand Name
ANZO
Model Number
SA-B01
Fire alarm bell

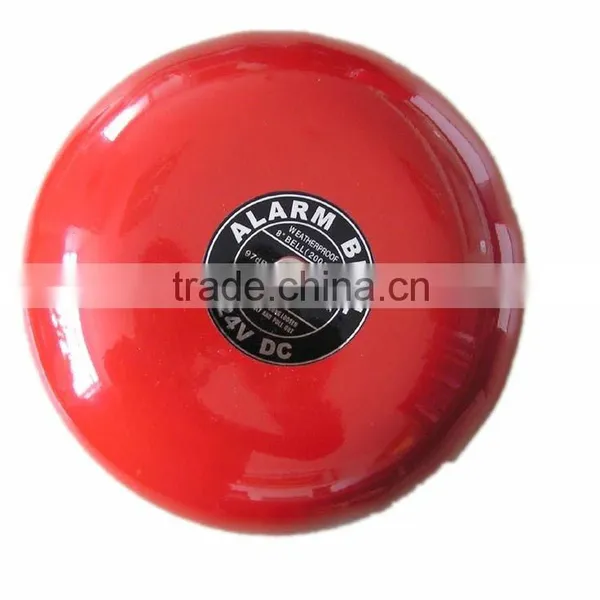

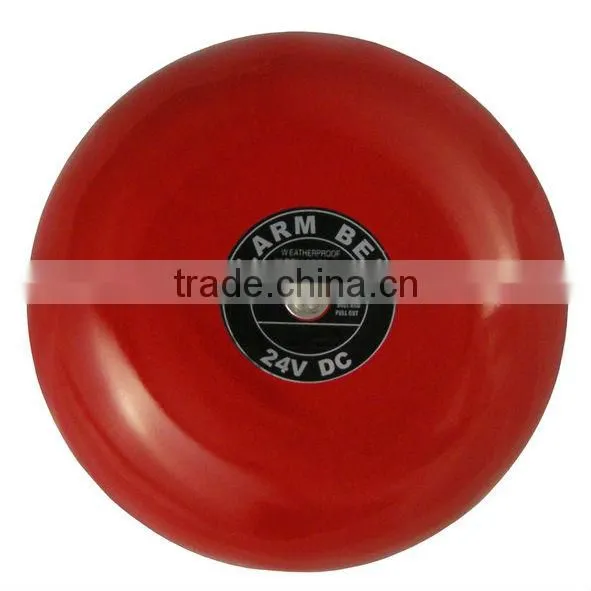

SA-B01 Fire Alarm Bell
Specification:
1.Base Material:
a>Iron Base
Size:φ100mm/150mm
b>Aluminium Base
Size:φ150mm/200mm
2.Operating Voltage:Dc24v/220v
3.Working Current:≤25ma
4.Audio Alarm:≥95db
installation note:
1.remove a gong
2.wire the bell in the circuit

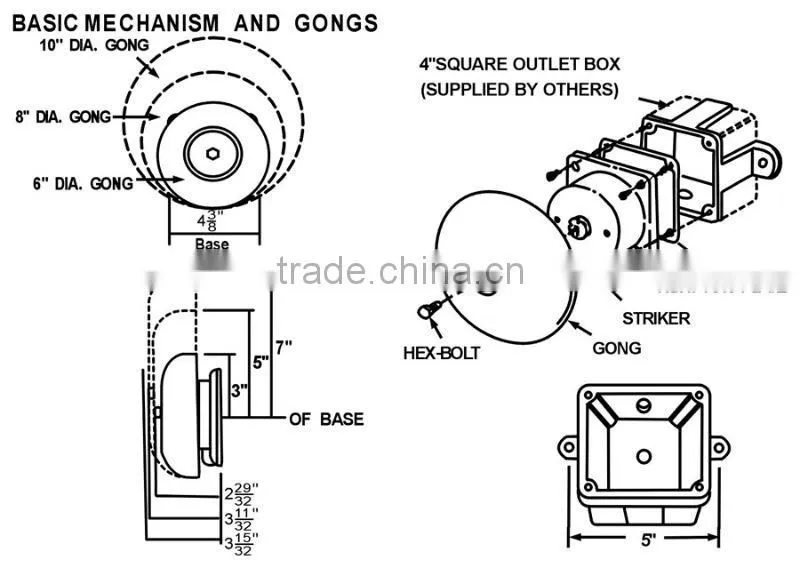

3.mount bell mechanism on 4" square standard outlet box with the striker facing down
4.replace a gong
5.the bell must be mounted a minimum of 8ft.,above the floor,or.
6.as close to the ceiling as possible

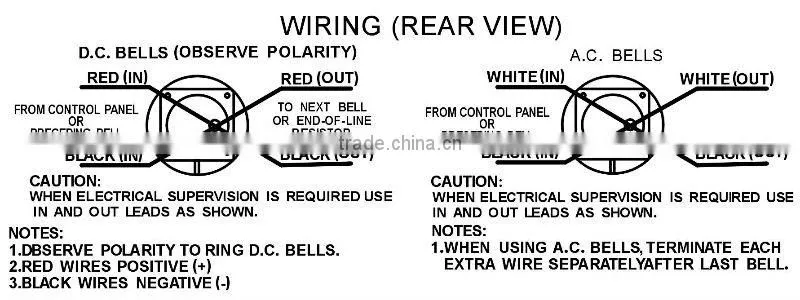

7.polarized bell provide red(+) and black(-) lead wires
8.when you install the bell,must be observed the polarity
