Home > Products > Separation Filter > high efficiency air oil plant separation of filter

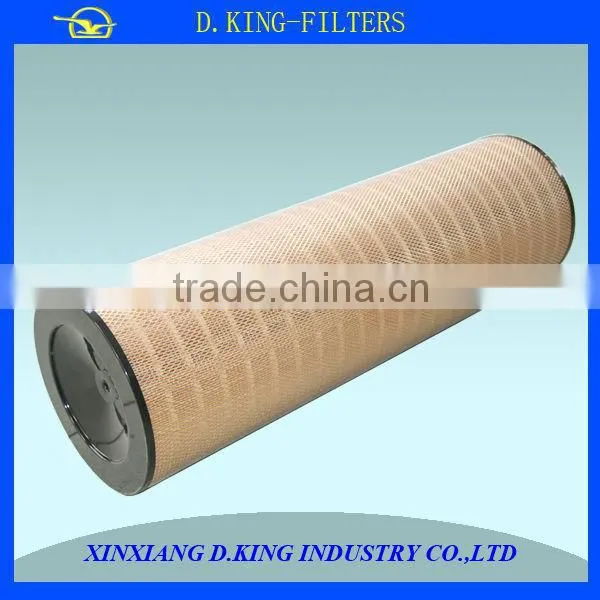

high efficiency air oil plant separation of filter
- 100000 Piece / Pieces per Month
- Tianjin Shanghai
- T/T
- 5 micro pp filter cartridge for pre filter
- washable air filters
- Air Breather HY-GLQL-001 for India Power Plant
- Filter air outlet static pressure box aluminum partition filter air outlet
- Small FFU fan 500 * 500mm FFU thin FFU fan ultra small FFU
- FFU dust-free supply fan FFU laminar flow hood ultra clean workbench FFU
Product Details
Condition: | New | Efficiency: | 99.99% | Construction: | Cartridge Filter |
Filtration Grade: | Hepa Filter | Medium Material: | Fiberglass | Porosity: | plant separation of filter |
Place of Origin: | Henan, China | Brand Name: | D.KING | Model Number: | YQLX |
Dimension(L*W*H): | 10*52*1230mm | Weight: | 1-100kg | Certification: | ISO9001-2008 |
Warranty: | One year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
high efficiency air oil plant separation of filter1.ISO 9001-2000
2.OEM service
3.SS material
4. Manufacturer
high efficiency air oil plant separation of filter
Advantages:
1.) 27 years professional
2.) Stable and constant pressure
3.) High filtration efficiency
4.) Exquisite Craftsmanship
5.) High dust holding capacity
6.) Special design team
high efficiency air oil plant separation of filter
Product Overview:
1.)As air oil separator filter in rotary air compressor and vacuum pump, due to the compressed air separation, condenses oil vapor.
2.)YQLX series filter adopts high superfine fiber agglomerate anti-corrosion materials as filtration, advance by filter layer, superfine fiber layer, support layer and layer and layer, etc, to ensure settlement of large oil can be separated directly, tiny oil gas dissolved in through the filter was disintegrated into the oil droplets greatly condenses and exclusion.
3.)With high efficiency filtration separation (after no more than oil gas 3mg/m3), the initial pressure is low long using life etc.
high efficiency air oil plant separation of filter
Model:
Model | flowing(m3/min) | Residual oil(mg/m3) | initial pressure differential(MPa) | Working pressure(MPa) | Working temperature(°C) | Size (mm) | MANN Corresponding model | |||
D | D1 | D2 | L | |||||||
YQLX I-2 | 2 | 3 | 0.02 | 0.7 | 120 | φ170 | φ88 | φ135 | 200 | 49 000 50 531 |
YQLX I-3.5 | 3.5 | φ170 | φ88 | φ135 | 305 | 49 000 50 411 | ||||
YQLX I-3.5 | 3.5 | φ200 | φ123 | φ170 | 230 | 49 000 50 201 | ||||
YQLX I-4.5 | 4.5 | φ200 | φ123 | φ170 | 305 | 49 000 50 121 | ||||
YQLX I-6.5 | 6.5 | φ200 | φ123 | φ170 | 435 | 49 000 50 111 | ||||
YQLX I-8 | 8 | φ328 | φ220 | φ272 | 305 | 49 000 50 101 | ||||
YQLX I-9 | 9 | φ274 | φ165 | φ220 | 435 | 49 000 50 171 | ||||
YQLX I-12 | 12 | φ328 | φ220 | φ275 | 450 | 49 000 50 321 | ||||
YQLX I-12 | 12 | φ274 | φ165 | φ220 | 600 | 49 000 50 131 | ||||
YQLX I-14 | 14 | φ355 | φ245 | φ300 | 500 | 49 000 50 191 | ||||
YQLX I-17 | 17 | φ355 | φ245 | φ300 | 600 | 49 000 50 181 | ||||
YQLX I-19 | 19 | φ355 | φ245 | φ300 | 660 | 49 000 50 221 | ||||
YQLX I-20 | 20 | φ324 | φ220 | φ275 | 750 | 49 000 50 521 | ||||
YQLX I-24 | 24 | φ355 | φ245 | φ300 | 820 | 49 000 50 481 | ||||
YQLX I-29 | 29 | φ355 | φ245 | φ300 | 1000 | 49 000 50 541 | ||||
YQLX I-42 | 42 | φ570 | φ400 | φ475 | 900 | 49 000 50 581 |
high efficiency air oil plant separation of filter
Our Company:
1.) Xinxiang D.King Industry Co., LTDhas won the great fame by its clients with the excellent design and advanced technology of transfer carts, besides that, it is also believed to be the long cooperate partners by its customers with the perfect after-sale service.
2.) Xinxiang D.King Industry Co., LTD have a good reputation among our customers. “United and progress” is our spirit and "good faith" is our management tenet. Thank you for choosing our high quality products and good services.
high efficiency air oil plant separation of filter
Market:
