Home > Products > Pipeline Strainer > FTT rough ss water strainer filter

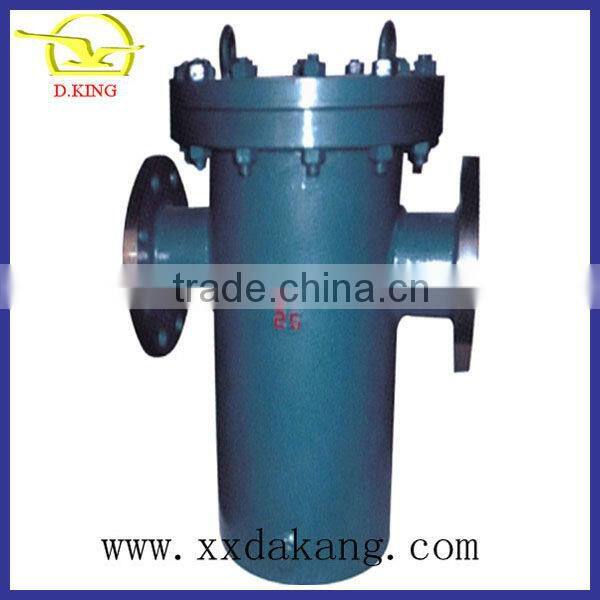

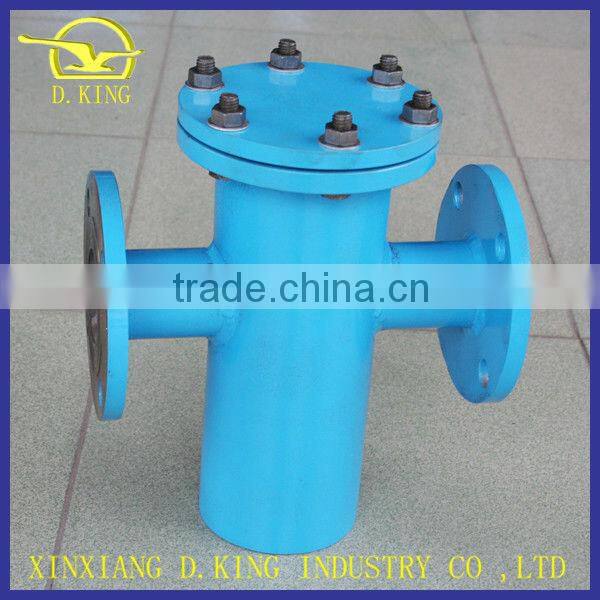

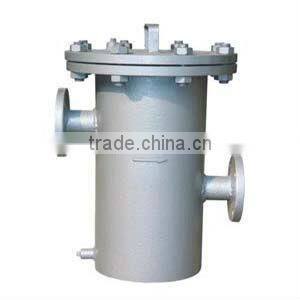

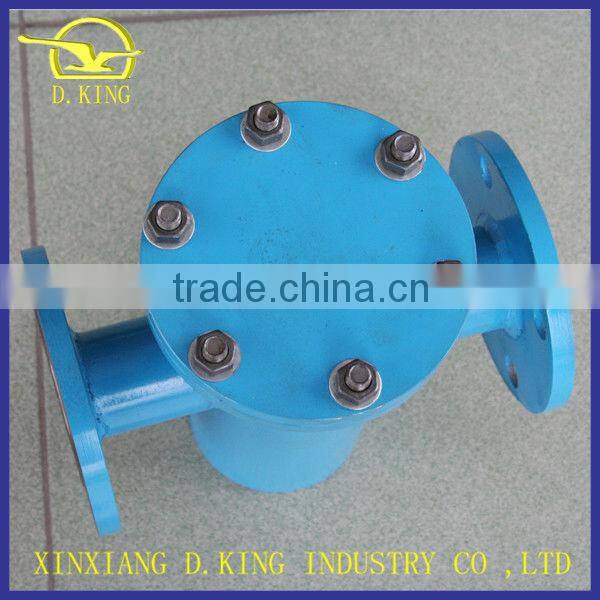

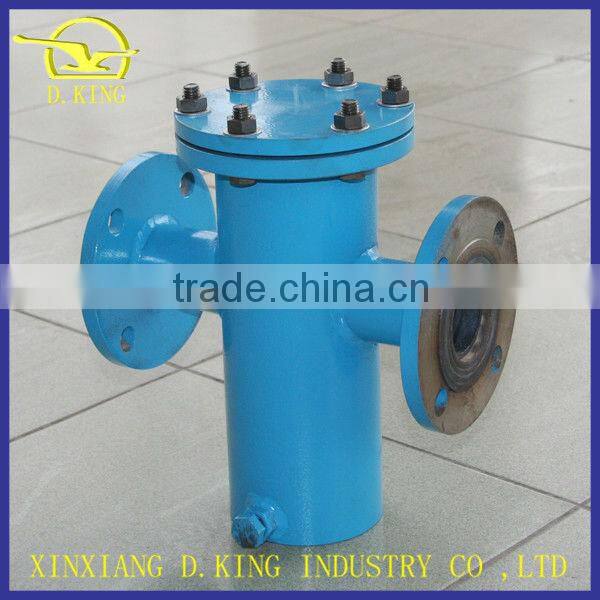

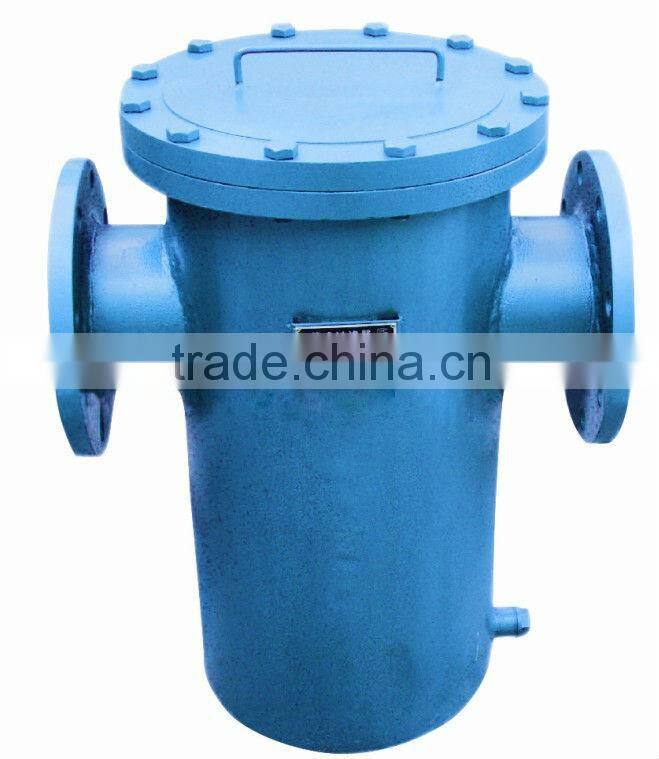

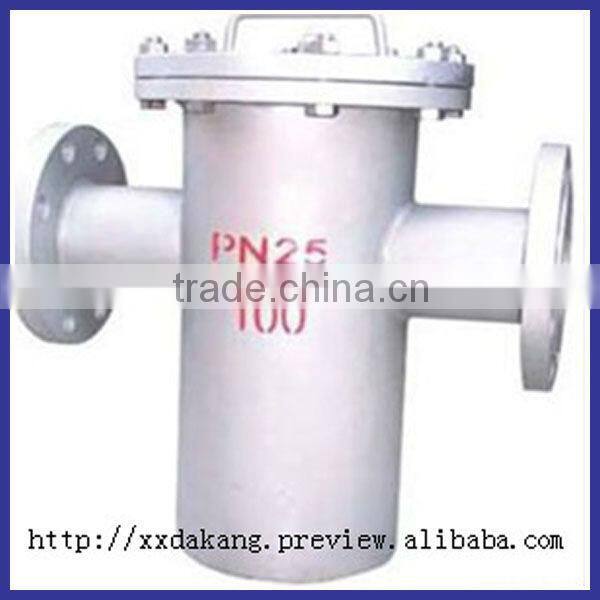

FTT rough ss water strainer filter
- 1000 Set / Sets per Month
- qingdao
- T/T
Product Details
Type: | Other, water filter | Size: | 25 40 60 | Car Make: | any |
Place of Origin: | Henan, China | Brand Name: | D.King, D.KING | Model Number: | FTT, FTT |
Warranty: | 1 Years, 2 years |
Product Description
ss water strainer filter
Material:stainless steel, carbon filter
effect of ss water strainer filter :T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system
feature of ss water strainer filter :easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .
Technical parameters of centrifugal water filter
1. Housing material : carbon steel , stainless steel
2 .Nominal diameter : DN40-DN400 mm
3. Filter screen material : stainless steel
4.Sealing material : NBR , pllytef (according to working medium )
5.Working temperature : no more than 90 centigrade
6.Connection type : flange
7.Normal pressure : 1.6MPa
8.Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh
Application of centrifugal water filter :
Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon .
Chemical production of corrosive materials .eg : caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid .
Low temperature materials in the refrigeration . eg : liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid .
Light food , pharmaceutical production , health requirements of the material . eg : beer , drink , dairy products , medicine appliance .

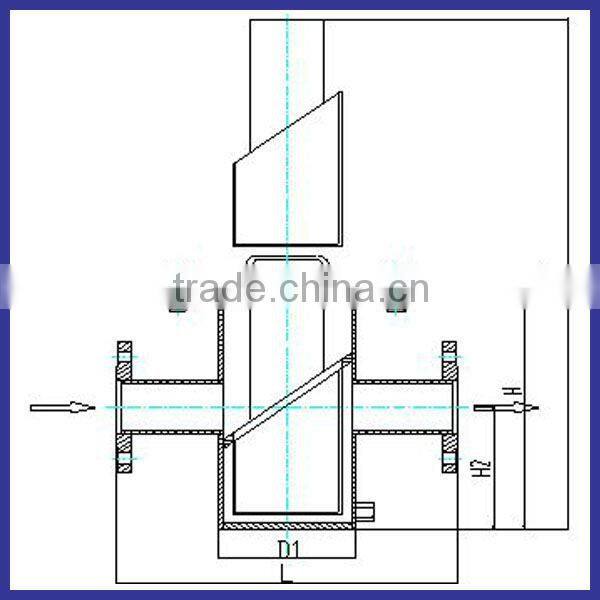

Model and size of centrifugal water filter
Model | Size(mm) | Valid filter area m2 | ||||
DN | In | L | H | H1 | ||
FTT-40×* | 40 | 1 1/2 | 256 | 149 | 306 | 0.0029 |
FTT-50×* | 50 | 2 | 256 | 149 | 306 | 0.0039 |
FTT-65×* | 65 | 2 1/2 | 292 | 170 | 348 | 0.0053 |
FTT-80×* | 80 | 3 | 312 | 182 | 384 | 0.0079 |
FTT-100×* | 100 | 4 | 362 | 210 | 473 | 0.0133 |
FTT-125×* | 125 | 5 | 420 | 235 | 529 | 0.0204 |
FTT-150×* | 150 | 6 | 460 | 260 | 581 | 0.0273 |
FTT-200×* | 200 | 8 | 560 | 320 | 694 | 0.0462 |
FTT-250×* | 250 | 10 | 670 | 380 | 821 | 0.0699 |
FTT-300×* | 300 | 12 | 780 | 430 | 949 | 0.1001 |
FTT-350×* | 350 | 16 | 830 | 450 | 1023 | 0.1205 |
FTT-400×* | 400 | 20 | 910 | 530 | 1166 | 0.1585 |
Business Philosophy : Professional + Honesty + Best price +Best quality = Long businesstemperature resistant fiberglass rod
Note: Can be customized according to customer requirements
...
