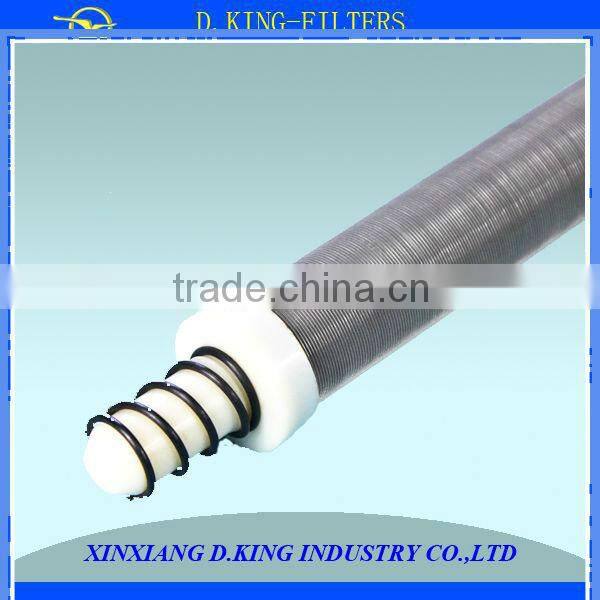

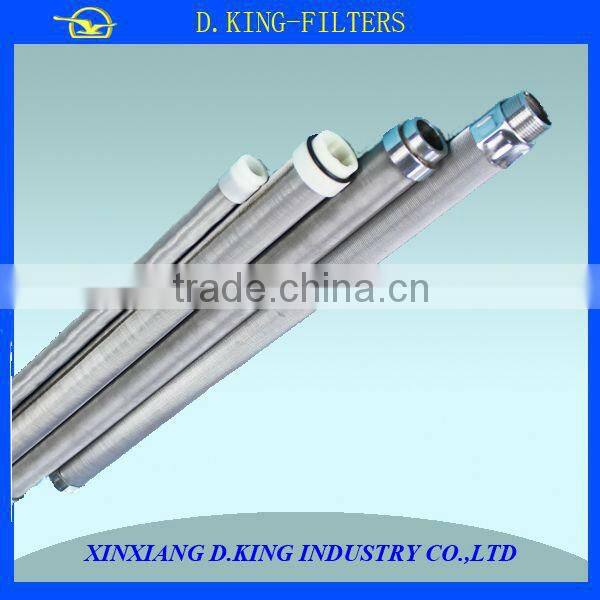

high efficiency BYLX series candle type 25 micron filter element

Specifications

25 micron filter
1.candle type filter element
2.strong ability of accept dirt
3.stainless steel material
4.ISO9001-2008



Introductions:

Candle type filter is mainly used in oil filter, by many filter cores and a magnetic cores, with size, effectively increase the filtering area. With metal wire network filter medium, pressure loss with small resistance, high strength, can be repeated washing flush, etc. Filter and USES threaded coupling bolts or, installation and removal, clean easily

Use scope:

Applicable in metallurgical, petrochemical, machinery manufacturing, paper making, textile, food and medicine, life, and environmental protection, oil, water filtration, involving all industries:

Crude oil, fuel oil, petrol, kerosene, diesel oil filter, etc

The hydraulic oil, lubricating oil, oil, gear oil filter .etc

Raw water, sewage , plain water ,reclaimed water filtration .etc



Main features:



1. the high intensity, long service life, corrosion resistance, temperature range, without material from
2. big filter area, big flow, porosity, permeability, high carrying capacity, with strong sex (can be repeated cleaning)
3. with size, Z series (type filter) filtering area for Y series (cylindrical) filtering area of 2.5-4 times, prolong the cartridge replacement cycles
4. installation ,removal and clean easily



Note : Single filter cores OD certain,length can be adjusted



Name	Model	Connection type	Nominal flow rate(L/min)	Filter precision(um)	Nominal pressure(MPa)	Pressure loss(MPa)		Size (mm)
						Initial	Max	D	L
Candle filter element	BYLX-30×223	M26×1.5	20	20 25 30 40 80	1.0	No more than 0.1	0.35	30	223
	BYLX-30×400		35					30	400
	BYLX-30×440		40					30	440
	BYLX-30×723		60					30	723
	BYLX-30×245	φ26	20					30	245
	BYLX-30×422		35					30	422
	BYLX-30×462		40					30	462
	BYLX-30×745		60					30	745
