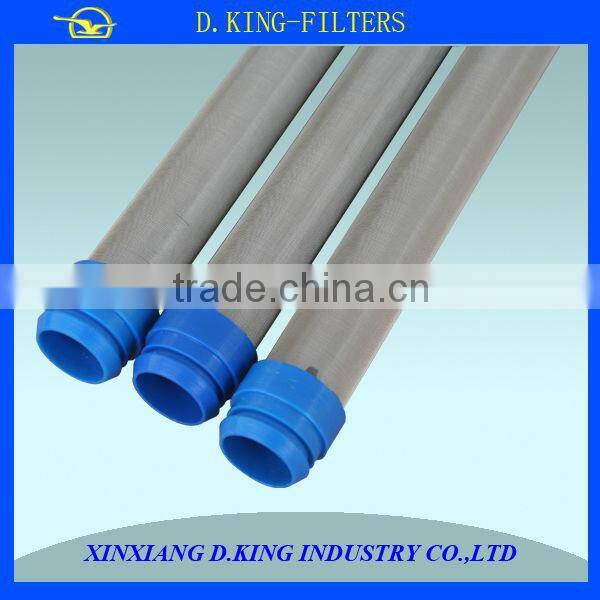

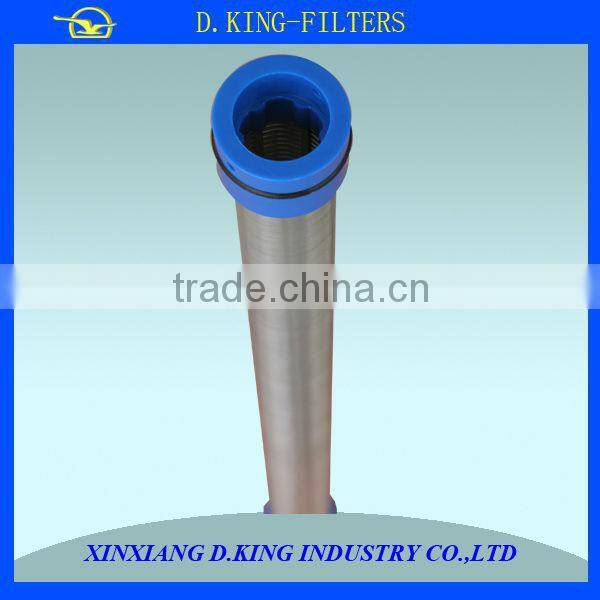

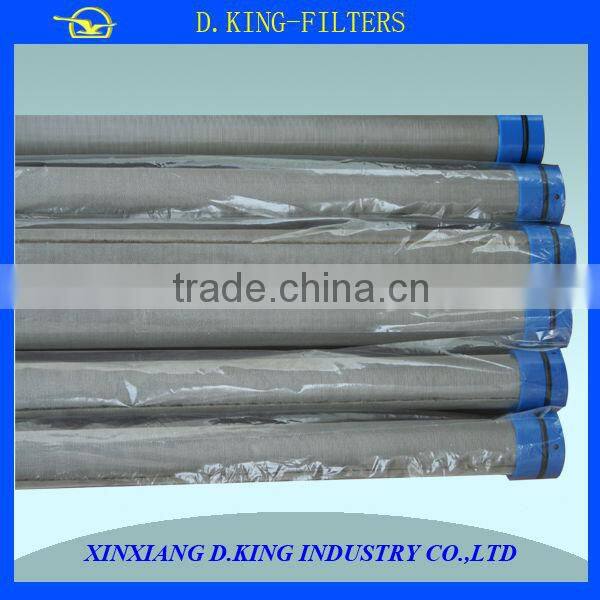

Filter Oil Lubrication System Filter Candle of Boat

FOB Price

US$ 1 - 5 / Piece

10 Pieces(Min. Order)

Port qingdao shanghai or other China's port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	dakang
Model Number	BYLX		After-sales Service Provided	Overseas service center available

Product Description

Specifications

filter oil lubrication system filter candle of boat
1 ss material
2.thread or spring connection
3.37 micron rating
4.OEM

filter oil lubrication system filter candle of boat

Structure and material
Part name	material
End and bottom caps	plastic , stainless steel
Inner tube	Stainless steel
Filter medium	Stainless steel mesh

filter oil lubrication system filter candle of boat

Ferture
Pressure	Less than 1.6MPa
Flow rate	20-60L/min
Working medium	Hydraulic oil and lubricating oil
Loss pressure	Less than 0.1MPa
Filter material	Stainless steel
Size	φ30223~φ30745

filter oil lubrication system filter candle of boat

Feature
Using life	Long , can be clean and use again
Temperature	Big range
Accept dirt	Strong ability
Area and flow	Big
Advantages	Easy install , use economy

filter oil lubrication system filter candle of boat

Note :

Single filter cores OD certain, length can be adjusted

Name	Model	Connection type	Flow capacity (L/min)	Micron rating (um)	Nominal pressure(MPa)	Pressure loss(MPa)		Size (mm)
Name	Model	Connection type	Flow capacity (L/min)	Micron rating (um)	Nominal pressure(MPa)	Initial	Max	D	L
Candle filter element	BYLX-30×223	M26×1.5	20	20 25 30 40 80	1.0	No more than 0.1	0.35	30	223
	BYLX-30×400		35					30	400
	BYLX-30×440		40					30	440
	BYLX-30×723		60					30	723
	BYLX-30×245	φ26	20					30	245
	BYLX-30×422		35					30	422
	BYLX-30×462		40					30	462
	BYLX-30×745		60					30	745

According to the demand of user can be listed in order of size parameters, the filter element

filter oil lubrication system filter candle of boat about us

The hydraulic filter , air filter , duplex filter , candle filter , water filter are the major products of our company . High quality and shortest delivery time is our advantages .We can produce products according to clients requirements .

High quality and shortest delivery time is our advantages , our products export to USA, India ,Malaysia ,Saudi Arabia ,Philippines ,Syria
South Africa ,Brazil ,Australia ,Iran ,Venezuela ,France ,etc .

filter oil lubrication system filter candle of boat

If you are interested in this products , pls cotnact at anytime ,
