Home > Products > Oil Filter Cartridge > easy cleaning recycle efficient truck diesel engine fuel filter

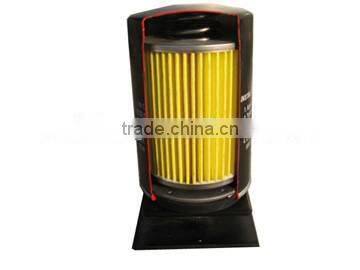

easy cleaning recycle efficient truck diesel engine fuel filter
- 4000 Set / Sets per Month
- qingdao tianjin shanghai
- T/T
Product Details
Type: | Fuel Filter | Size: | diesel engine fuel filter | Car Make: | heavy truck |
OE NO.: | diesel engine fuel filter | Place of Origin: | Henan, China | Brand Name: | D.KIing |
Model Number: | UX series | Warranty: | 6 Months |
Product Description
Specifications
easy cleaning recycle efficient truck diesel engine fuel filter1.back wash
2.easy install
3.big flow
4.ISO9001:2008
easy cleaning recycle efficient truck diesel engine fuel filter
Features:
1.High strength , long use life , strong resistance to corrosion
2.Big use temperature range , no material break away off
3.Big filter area , big flow , high porosity , fine permeability
4.Strong ability of accept dirt , can clean and back wash
5..Easy install , dismantle , clean , use economy
1.Introduction
1.Oil suction filter element used to suck oil filter , filtering solid particle and colloidal material in the working medium.
2.Effective control pollution degree in working medium.
3.It install in the tank , and must install under the liquid level tank
4.The material of filter element is stainless steel or copper wire mesh , can repeated use clean.
2.Specification
Type 304 often refers to as 18Cr,8 Ni, Type 304 is the basic stainless alloy mostly commonly utilzed for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304: is very similare to Type304, the difference being the reduce carbon content for better weving and secondary welding characteristics.
Type 316 Stabilized by the addition of 2% molybdenum, Type 316 has better resistance to pitting corrosion than the chromium-nickel stainless steels where brines, sulfur-bearing water or halogen salts, such as chlorides are present. Type 316L: is very similare to type 316, the difference being the reduce carbon content for better wire cloth weaving and secondary welding characteristics.
Model | DN(mm) | Nominal flow rate(L/min) | Filter precision(um) | Nominal pressure loss(MPa) | Mating assembly model |
UX-25 | 15 | 25 | 80 | No more than 0.007 | NJU-25 –J |
UX-40 | 20 | 40 | NJU-40 –J | ||
UX-63 | 25 | 63 | NJU-63 –J | ||
UX-100 | 32 | 100 | NJU-100 –J | ||
UX-160 | 40 | 160 | NJU-160 –J | ||
UX-250 | 50 | 250 | No more than 0.01 | NJU-250 –J | |
UX-400 | 65 | 400 | NJU-400 –J | ||
UX-630 | 80 | 630 | NJU-630 –J | ||
UX-800 | 90 | 800 | NJU-800 -J |
Housing Material:carbon steel Paint:stoving varnish | |
Connector Material:carbon steel Sealing:rubber ring
| |
Filter element: Material:fiberglass End cap:stainless steel |

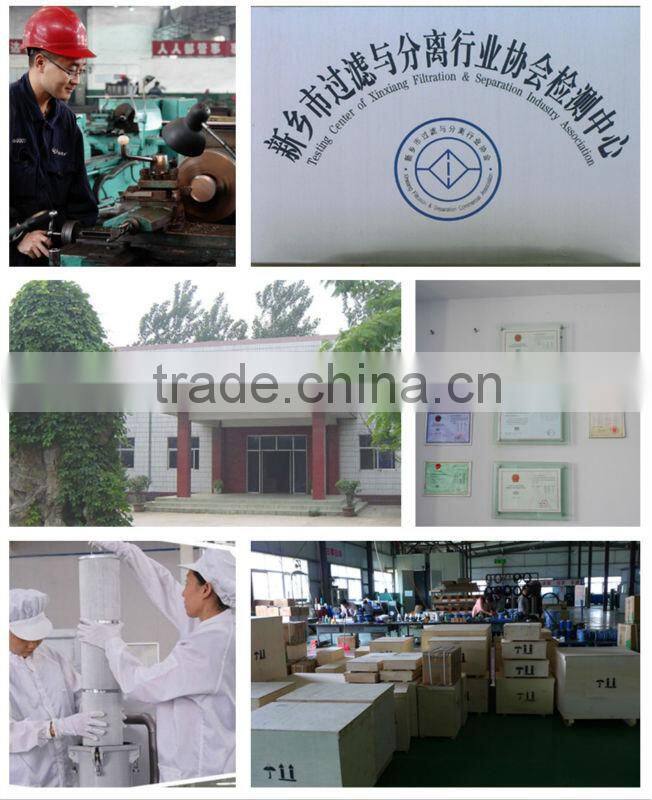

Xinxiang D.King Industry Co., LTD was founded in 1987. It is a filter professional manufacturer.
1. With ISO9001:2008 certification
2. Accumulated abundant experience in producing filter
3. Export to more than 30 countries
4. Annual turn over up to 20,000,000US dallars
5. With professional technical team
6. OEM service is accepted
1. Good quality raw materials
2. Good sewing jobs by experienced workers
3. Strict quality control implemented right from raw materials to ready-made products
4. Experienced technical and engineering team, scientific technical process
5. Competitive price
6. Excellent services from before sales then export and after-sale
1. Rigorous quality supervision system.
2. Manufacture with 27 years experience.
3. Professional design and production team.
4. With ISO9001:2008 certification.
5. OEM accepted.
6. Short delivery time.
7. Support small order.
8. Quality meeting international standard.
Xinxiang D.King Industry Co. Ltd | ||
Xiaozhuzhuang Industry Zone, Xinxiang, Henan, China | ||
Tel: 86-373-3391119 | Fax:86-373-3391116 | |
TM: cn1500287125 | Skype:mandyyang | |
