oil filter codes

Specifications

oil filter codes
1.Used to prevent against leakage
2.Keeps oil clean
3.Timely delivery
4.Guarantee quality

27 years professional, To create excellent quality !!!





Detailed information of our oil filter codes





1. Advantages of our oil filter codes

1. High using frequency
2. Compact structure
3. Higher accuracy
4. quality control system: ISO9001-2008
5. The structure of filter simpleness
6. convenient to use
7. Strong security
8. easy to instal
9. structure strength
10. completely interchangeable with original element
11. wide range of types are available
12. sample is available
13. energy efficient filters
14. efficiency: 99.99%
15. high integrity design to save your space
16. OEM product is welcomed

2. Effect of our oil filter codes

oil filter element install oil-put of oil pump in common. use to protect oil pump avoid to suction major mechanical admixture.filtering prill what component abrade created in hydraulic pressure and sealing element rubber impurity etc pollutant , make oil what reflow to tank keep clean.



3. Characteristics of our oil filter codes

As a component of the internal combustion engine, oil filter plays a very important role in the lubrication system. During the combustion process, it can filter out metal debris mixed with oil, toner and oil gradually produce gum and other impurities.

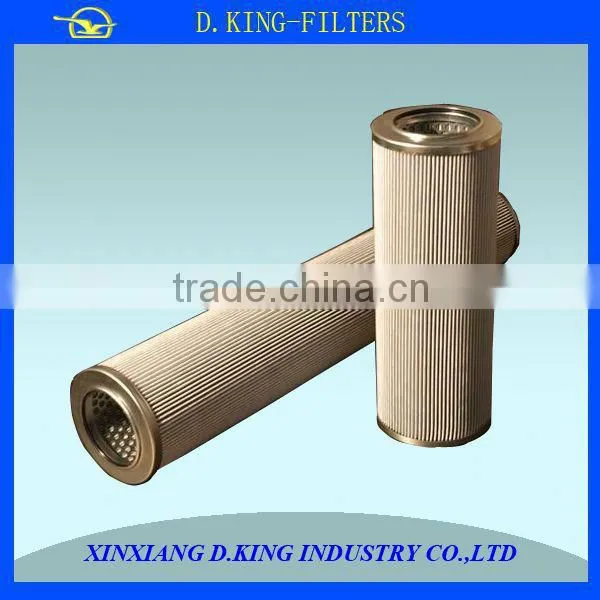

4. Structure of our oil filter codes

• top and bottom caps material : aluminum , stainless steel
• inner tube material: galvanized sheet , stainless steel tube
• filter medium, material :stainless steel mesh and filter paper

5. Applications of our oil filter codes

scope of application: petroleum, water, air, oil field, refinery, medicine equipment, pipeline filters, railroad, astronautics, project machinery, etc



Widely used in metallurgical industry, automobile industry, electrical equipment, chemicals, construction machinery,paper industry,shipbuilding industry,and machine tools manufacturing.







Company profile



  Our company was founded in 1987 , has done in filtering field for more than 25 years , major products are filters and filter cartridges , used in all kinds of industry.



Our mian product



The hydraulic filter , air filter , duplex filter , candle filter , water filter are the major products of our company . High quality and shortest delivery time is our advantages .We can produce products according to clients requirements .



Contact me



skype: stefan bao



Tel:+86-0373-3391119



Model





Model	DN(mm)	Nominal flow rate (L/min)	Filter precision (um)	Nominal pressure (MPa)	Reset pressure loss (MPa)	Original assembly model
QYLX-63	15	63	3 5 10 20 30	1.0	No more than 0.1	QYL-63
QYLX-100	18	100				QYL-100
QYLX-160	40	160				QYL-160
QYLX-250	50	250				QYL-250
QYLX-400	60	400				QYL-400



Model	DN(mm)	Nominal flow rate (L/min)	Filter precision(um)	Nominal pressure (MPa)	Pressure loss(MPa)		Mating assembly model
					Initial	Max
SFX-60	25	60	1 3 5 10 20 30	1.6	No more than 0.2	0.35	RLF-60
SFX-110		110					RLF-110
SFX-160	40	160					RLF-160
SFX-240		240					RLF-240
SFX-330	50	330					RLF-330
SFX-500		500					RLF-500
SFX-660	80	660					RLF-660
SFX-850		850					RLF-850
SFX-950	100	950					RLF-950
SFX-1300		1300					RLF-1300



Model	DN(mm)	Nominal flow rate (L/min)	Filter precision (um)	Nominal pressure (MPa)	Pressure loss(MPa)		Mating assembly model
					Initial	Max
TXX-25	15	25	30 50	1.6	0.05	0.38	XU-A25
TXX-40	20	40					XU-A40
TXX-63	25	63			0.07		XU-A63
TXX-100	32	100					XU-A100
TXX-160	40	160			0.12		XU-A160
TXX-250	80	250					XU-A250
TXX-400	88	400			0.18		XU-A400
TXX-650	80	650					XU-A650
