key parameter
Model |
Dish Dia |
power |
Grinding amount |
FDM-400 |
Φ400mm |
45kw |
180-250kg/hour |
FDM-300 |
Φ300mm |
25kw |
80-120kg/hour |
PLC control the following variables
1. Vibration feeding speed
2. Full-load motor amperage
3. Grinding temperature
4. Vacuum of grinding chamber
The specification as below:
| Specification of Grinding Machine | ||||
| Model: | FDM-400 | |||
| Main Motor(grind powder motor): | 45kw | |||
| Circulation Fan Motor: | 5.5KW | |||
| Rotation Screen Motor: | 1.1kw | |||
| Lock Valve: | 1.1kw | |||
| PLC: | Simens | |||
| Touch Screen: | Simens | |||
| Electric Unit: | Schneider | |||
| Grinding Efficiency: | 250KGS/Hr | |||
| Mesh: | 30 | |||

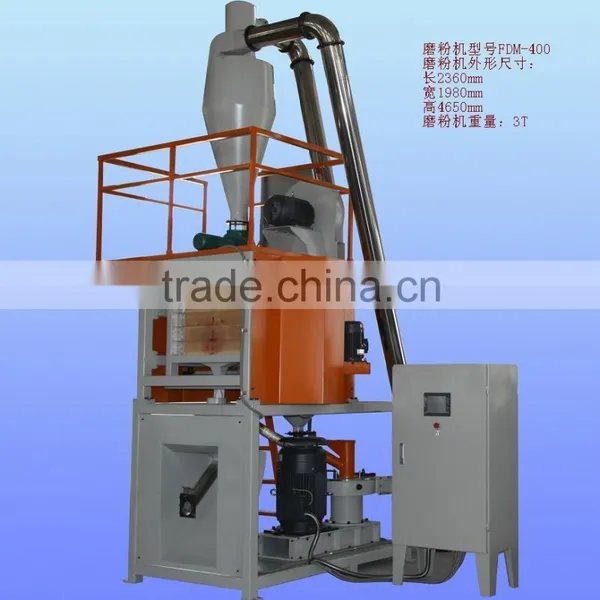

| Overall Dimensions: | 2360*1980*4650(mm) | |||
| Weight: | 3.0 T | |||
Our factory, Yantai Fangda Rotational Molding Co.,Ltd established in 2002, is a professional producer and exporter of Rotomolding Equipments and Moulds and all kinds of rotomolding products, such as water tank, fuel tank, Lampshade, military box, urea box, conduit shaft, road barrier, floating body, automotive parts, kayak, feeding system water channel, etc.
We are committed to high technology and technical innovation and pay attention to the investment on R&D, and till now, 14 inventions of our company have already obtained the National Patent. Now, we can say that our company is an authority in this field, and our equipments and moulds are the best in China.
You will see our technical power and quality directly during your visiting.
